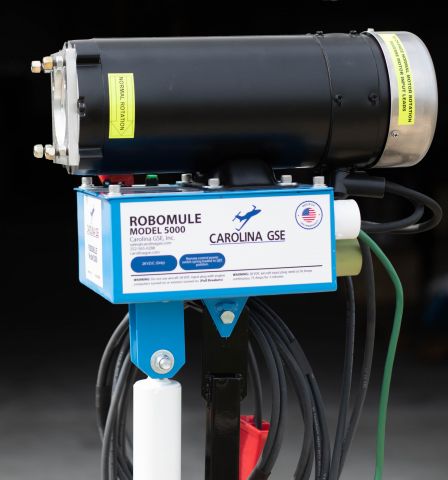

Robomule 5000 (RM-5000-01) - Ground Hydraulic Power Stand
CGSE - The New Robomule Manufacturer (Previously Dehaut Aero)

Custom manufactured 28 VDC, 3000 RPM, 3.5 HP continuous-duty motor (reversible)

Features

  • Utilizes your aircraft pump, filters, pressure regulator, and fluid
  • No system contamination
  • No possibility of over-pressurizing system
  • No fluid loss or leaks
  • Easy installation
  • Remote control cord reel, 50 ft. of cord

Specifications

  • Highest quality, low profile 28VDC, 3000 RPM, 3.5 HP continuous-duty motor
  • Reversible rotation by switching motor leads
  • 15 ft. power cord
  • Heavy-duty ball-bearing casters
  • Heavy-duty steel post with a removable base

Dimensions

  • Base: 36 in (91 cm) Square
  • Height: 56 in (142 cm) Collapsed
    • 66 in (168 cm) Extended
  • Weight 112 lbs (51 kg)

Some Aircraft Applications

  • Westwind 1123/1124
  • Lear 23/24/25
  • Citation I, II, III, VII
  • Citation CJ1, 2, 3 - Order the Williams Adapter Kit - RM-WA-1000-01
  • HS 1125/700/800/1000
  • Falcon 10
  • Astra
  • Other applications possible

Warranty

  • 1 Year Parts Warranty

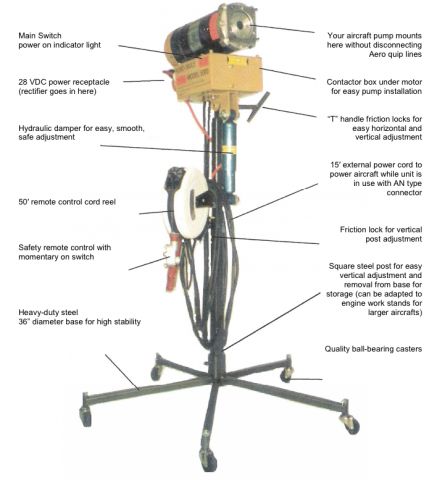

General Overview on Robomule 5000

Robomule Specifications Mobile Aircraft Test Stand Hydraulic Mule

Operating Instructions for Robomule 5000 and 3000 Units

  • Warning: This unit to be used by properly licensed AO mechanics only.
  • Always insure proper DC power available, minimum 150 amps at 28 VDC. The line cord from assembly to aircraft external power Is limited to 50 amps continuous max*, With 75 amps for three minutes.
  • When using hydraulic power stand always turn off avionics and engine computers to prevent damage from electrical spikes caused by on/off of motor and relays on hydraulic power stand. This Is especially important if aircraft is in maintenance without batteries installed. If batteries are installed, be sure they are tied to the external power buss. This will absorb most electrical spikes.
  • Always check motor remote control switch for proper operation before attachment of power stand to aircraft. Remote switch Is spring-loaded to off position. Actuating remote motor switch should not run until you arm switch atop motor relay box assembly. Motor should run off and on by actuating switch with remote switch held on.
  • Warning: always check for proper directional rotation on the aircraft pump to match the hydraulic power stand rotation.
  • Warning: motor assembly is a continuous duty. However, using a motor over 10 minute period does increase wear appreciably. To assure long life, try to limit continuous duty operation whenever possible
  • Warning: Always check to make sure personnel are clear of aircraft (landing gear, flaps, thrust reversers) before using power stand.

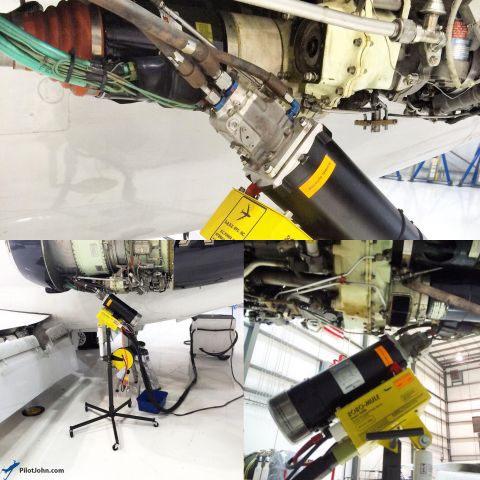

  • When installing a pump on a hydraulic motor drive pad, always make sure you are not kinking, pulling, or twisting hydraulic lines so as to cause damage. This can be done by adjusting stand assembly after the aircraft has been jacked. (Always make sure safety pin on post and friction look "T" handles are locked on motor tilt pad and post.
  • Always remove hydraulic power stand before lowering aircraft.

Using Robomule on Hawker 900XP



Video by Beechcraft

Alternate Models
Robomule 3000Previous Model
General Information
Part #RM-5000-01
ManufacturerCarolina GSE
Shipping Information
Shipping Weight200 lbs.
Shipping Dimensions48 x 40 x 15 in.
Freight NMFC62900
Schedule B8425420000
