Tronair 01-1216-0000 Portable Multi-Head Towbar (CE) - Tow up 80,000 lbs

Tronair 01-1216-0000
Manufacturer: Tronair
Part Number: 01-1216-0000
NSN: 1730-01-510-3905
Condition: New
Lead Time: In-Stock
Stock: 2 available now
✓ Same-day worldwide shipping available
✓ Manufacturer CofC always available at no cost after shipping
✓ Operating manuals available online for purchased equipment
Get Price & Order Now (it's quick & instant!)

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Customers who viewed this item also viewed:
Multi-Head Towbar - Tow up to 75,000 lbs (CE)
Towbar, Portable Universal (CE) - Multi-Head
Tow up to 66,000 lbs (CE) - Multi-Head
Towbar, Custom A-300/310
Hondajet Ha-420 Custom Towbar

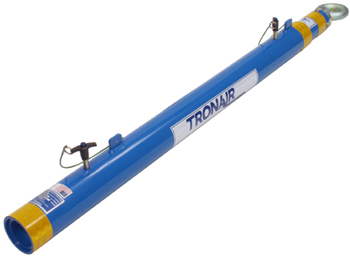

The Tronair 01-1216-0000 is a lightweight, carry-on towbar for use with multiple aircraft heads for towing aircraft up to 80,000 lbs. It is recommended for use with Tronair 500 and 600 series aircraft heads.

The portable towbar includes two collapsible sections for compact storage. There is a three-inch eyebolt at the towing end of the towbar.

Standard Features

  • Compact to provide away from home towing capacity
  • Shear protection is included when required by the aircraft manufacturer
  • Lightweight
  • CE marked
  • Finish: Durable Powder Coat Tronair Blue

Additional Info

  • Application: Designed for use with Tronair Series 500 and 600 Multi-Heads
  • Maximum Aircraft Gross Weight: 80,000 lbs (36.3 Metric ton)
  • Collapsed Length: 55.5 in (140.97 cm) From eyebolt centerline to end of towbar
  • Extended Length: 88.75 in (225.43 cm) From eyebolt centerline to end of towbar
  • Tube Diameter: 3.5 in (8.87 cm)
  • Weight: 28.1 lbs (12.7 kg)
  • Finish: Blue Powder Coat
  • Material: Aluminum
Alternate Models
GSB0900003Bombardier GSE PN
Specifications
MaterialAluminum
Extended89 (226) in (cm)
Weight28 (13) lb (kg)
Shear ProtectionNo
Closed57 (145) in (cm)
Compatible Aircraft*
Airbus Military (CASA)212-100, 212-200
Bell214, 214ST, 222, 230, 430
Bombardier (Regional)Dash 8-100, Dash 8-200, Dash 8-300, Dash 8-400
General DynamicsConvair 580, Convair 600, Convair 640
Hawker BeechcraftBeech 1900, Beech 99, C-12, Hawker 4000 (Horizon), King Air, U-21 A/G
*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
Shipping Information
Pkg. 1 Weight37 lbs.
Pkg. 1 Dimensions67 in. x 11 in. x 11 in.
Pkg. 1 TypeCarton
Freight Class200
Freight NMFC186980
Schedule B8716900000
Customers who bought this item also bought:
Dash 8 100 / 200 / 300 Head (Ce)
Reservoir Service Coupler - Challenger, Global 5000, Global Express, CRJ, and Dash 8
Tire & Brake Dolly (Ce)
Fluid Service Unit (Ce) - Skydrol / Hyjet - 2 Gallon Stainless Steel Reservoir
12 Ton Axle Jack (CE) - 4.5 to 15 inches
Servicing

We service the 01-1216-0000 and other items like it at our facility.

A few of the common services we offer for this item are:
• Repair
• Overhaul / Refurbishment
Parts

As an authorized Tronair Distributor, we sell factory OEM parts for the 01-1216-0000. Not sure exactly what part you need? Just describe it or send us a photo and we will research it for you if needed.

A few of the common parts we offer for this item are:
• Wheels
• Casters
• Ball Lok Pin
• Towbar Hydraulic Lift
• PDF Manual
Renting

We provide short-term and long-term rentals for the 01-1216-0000. We will ship the item directly to you and arrange for pickup at the end of your lease.

Sell or Trade-In

We can purchase your used 01-1216-0000 (or similar GSE items like it) and apply it as a credit for new GSE, or buy it outright directly.
