Used / Serviceable Viavi UC-584DUAL - Universal Transponder Antenna Coupler

The Used / Serviceable Viavi UC-584DUAL Universal Transponder Antenna Coupler is a highly effective tool designed to solve the challenges of reliable FAR Part 43 Appendix ‘F’ ERP (Effective Radiated Power) and MTL (Minimum Trigger Level) testing in multi-path environments. Ideal for use in aviation, this versatile coupler is engineered to provide more than 20 dB of attenuation, reducing interference and ensuring accurate test results for transponder altitude replies during testing.

The UC-584DUAL is specifically designed to mount directly over aircraft transponder antennas, with a quick-action toggle grip for secure placement, or it can be used as a top-mount coupler for larger aircraft. It fits most "Shark Fin" L-Band antennas and is designed for use with Viavi IFR6000, IFR6015, APM-424(V)5 flight-line test sets, or any compatible transponder test set.

With a rugged design suited for ramp use and a dual-antenna configuration, the UC-584DUAL minimizes the possibility of false intruders and interference with air traffic control systems while enhancing the repeatability and efficiency of test measurements.

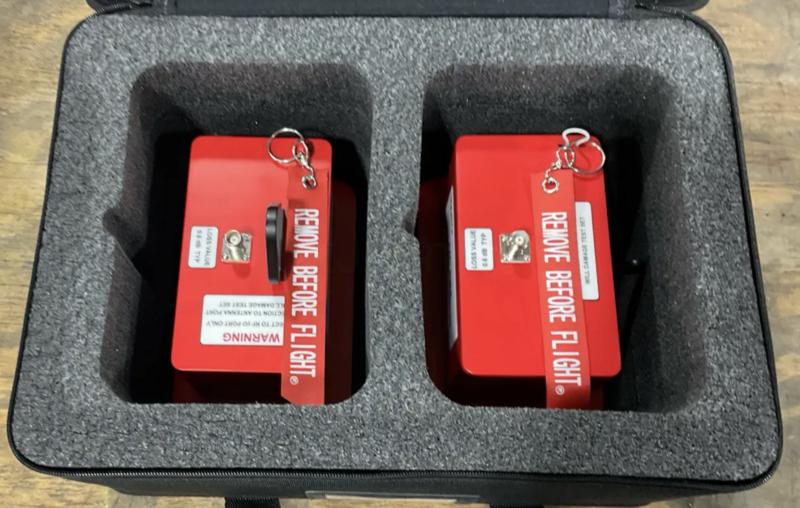

Includes:

• UC-584 L-Band Coupler (with clamp)
• UC-584 L-Band Coupler (top mount)
• 25-foot TNC-to-TNC coaxial cable
• 25-foot TNC-to-TNC coaxial cable (right angle)
• Soft case
• ID card
• Application notes & instruction sheet

Key Features:

• Provides >20 dB of attenuation for improved testing accuracy
• Reduces interference with TCAS systems and air traffic controllers
• Quick action antenna grip/release mechanism for ease of use
• Dual antenna kit configuration for versatile testing
• Top mount antenna option for easy placement on larger aircraft
• Compatible with Viavi IFR6000, IFR6015, APM-424(V)5 flight-line test sets, and other transponder test sets
• Rugged design for ramp use, ensuring durability in challenging environments
• Fits most "Shark Fin" L-Band antennas

Benefits:

• Ensures repeatable, high-accuracy measurements, saving valuable test time
• Universal design fits a wide range of test sets
• Helps meet FAR Part 43 Appendix ‘F’ ERP and MTL testing standards in multi-path environments
• Shielding for ADS-B performance testing and UUT parametric tests
• Reduces the risk of false readings or interference with air traffic control systems

The Used / Serviceable Viavi UC-584DUAL is an essential tool for any professional involved in transponder testing, offering a rugged, efficient, and reliable solution for aircraft transponder systems.
