Flat Gear Aircraft Jacking System – Tailwheel Kit for Cessna, Piper Cub, Citabria & More

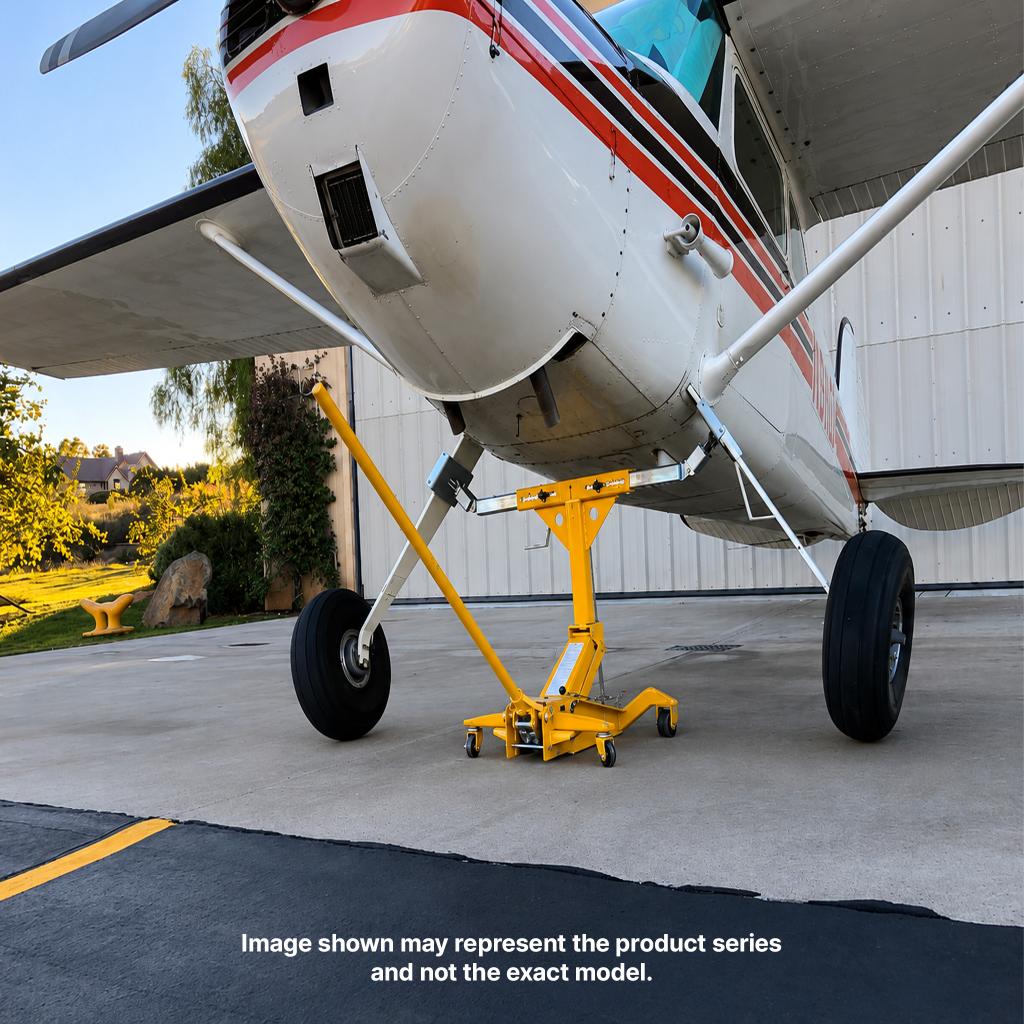

The Aircraft Jacking Solutions Flat Gear System for Tailwheel Aircraft (4360-2) is a complete jacking solution for conventional-gear general aviation aircraft. The patented flat gear pad design cradles the main spring gear legs while front and rear outriggers provide full lateral stability, purpose-built for taildraggers that demand precise weight distribution during maintenance. At 3,800 lbs rated lift capacity with a built-in hydraulic safety stop, the 4360-2 handles Cessna 170s, Citabrias, Super Cubs, and most other conventional-gear singles safely and repeatably.

Key Features

• Patented flat gear pad design engineered for tailwheel aircraft spring gear legs
• Front and rear outriggers for stable, level support on conventional-gear airframes
• 3,800 lb rated lift capacity
• Built-in hydraulic safety stop, no accidental descent under load
• 1/4" rubber bonded lift pads with nylon-lined inserts protect finish
• Zinc-plated slide tubes with calibrated hash marks
• Lifetime warranty on structural lift components (lift pads, slide tubes, outrigger assemblies, and hydraulic jack body) to the original owner
• Yellow powder coat for shop visibility
• Designed and manufactured in the USA by Coppycog Inc., Omaha, Nebraska

Specifications

• Lift capacity: 3,800 lbs
• System type: Complete flat gear jacking system
• Gear position: Main gear, tailwheel aircraft
• Outriggers: Front and rear
• Pad material: 1/4" rubber bonded, nylon-lined inserts
• Slide tubes: Zinc-plated with calibrated hash marks
• Safety: Built-in hydraulic safety stop
• Finish: Yellow powder coat
• Warranty: Lifetime on structural lift components (lift pads, slide tubes, outrigger assemblies, hydraulic jack body) to the original owner

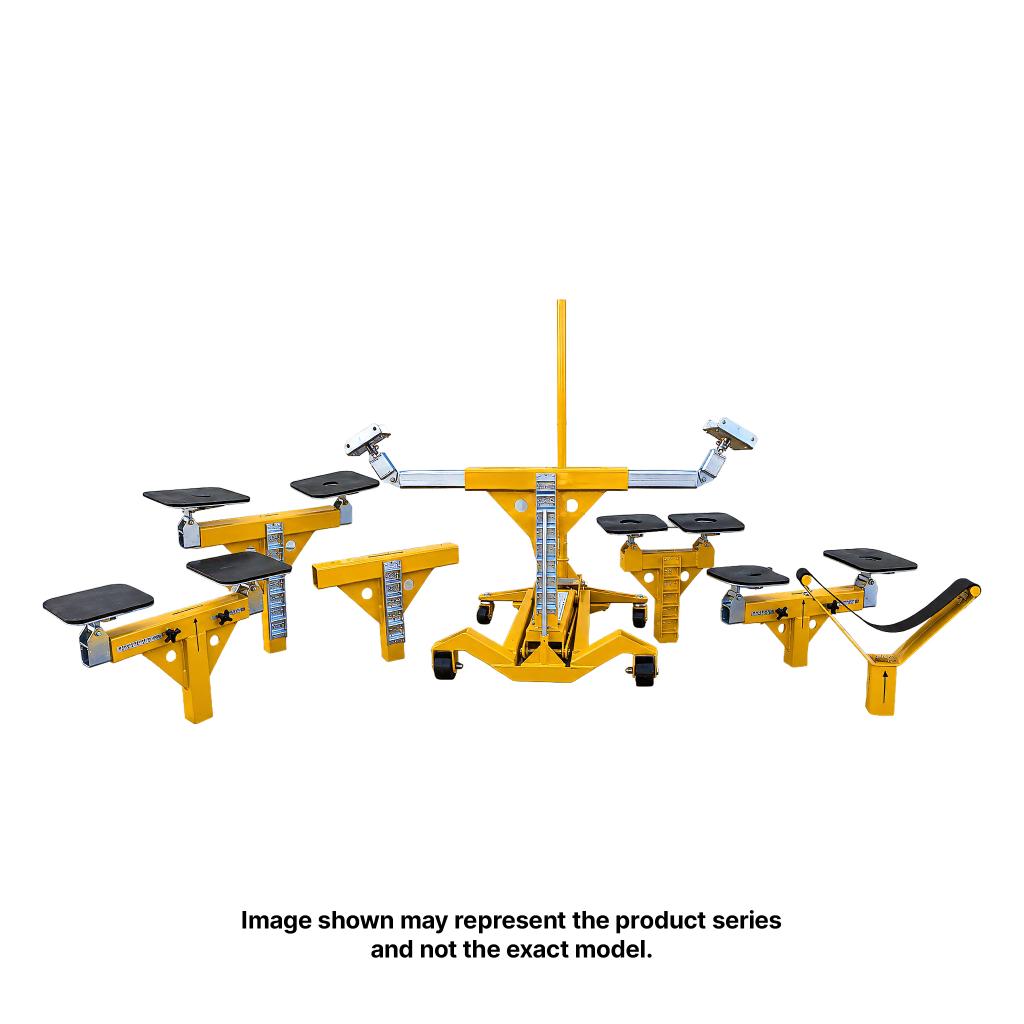

What's Included

• 1x AJS hydraulic floor jack with front and rear outriggers
• 1 pair flat gear lift pads with zinc-plated slide tubes (2 pads)
• 1x tailwheel T-stand
• Convertible wood shipping/storage crate

Applications & Compatible Aircraft

The 4360-2 is designed for conventional-gear aircraft including Cessna 170/180/185, Piper Super Cub and PA-18 variants, Citabria/Decathlon, Maule, and most other taildragger singles. Ideal for repair stations and A&P mechanics performing main gear, brake, and tire maintenance on taildraggers.

Choosing the Right System

The 4360-2 is designed for tailwheel aircraft flat gear maintenance (brakes, tires, wheel fairings) without requiring gear leg removal. For jobs requiring complete main gear leg extraction on Cessna taildraggers (170/180/185), the Belly Pad Tailwheel System (4360-4) is the correct choice. Contact PJi® at phone, email, or chat for system selection guidance.

Aircraft Maintenance Note

Jacking procedures must be performed in accordance with the aircraft's Maintenance Manual (AMM) or Illustrated Parts Catalog jacking section. Confirm manufacturer-approved jacking points before lifting any aircraft. These systems are designed for use by certificated A&P mechanics and are appropriate for FAA Part 145 certificated repair station environments.
