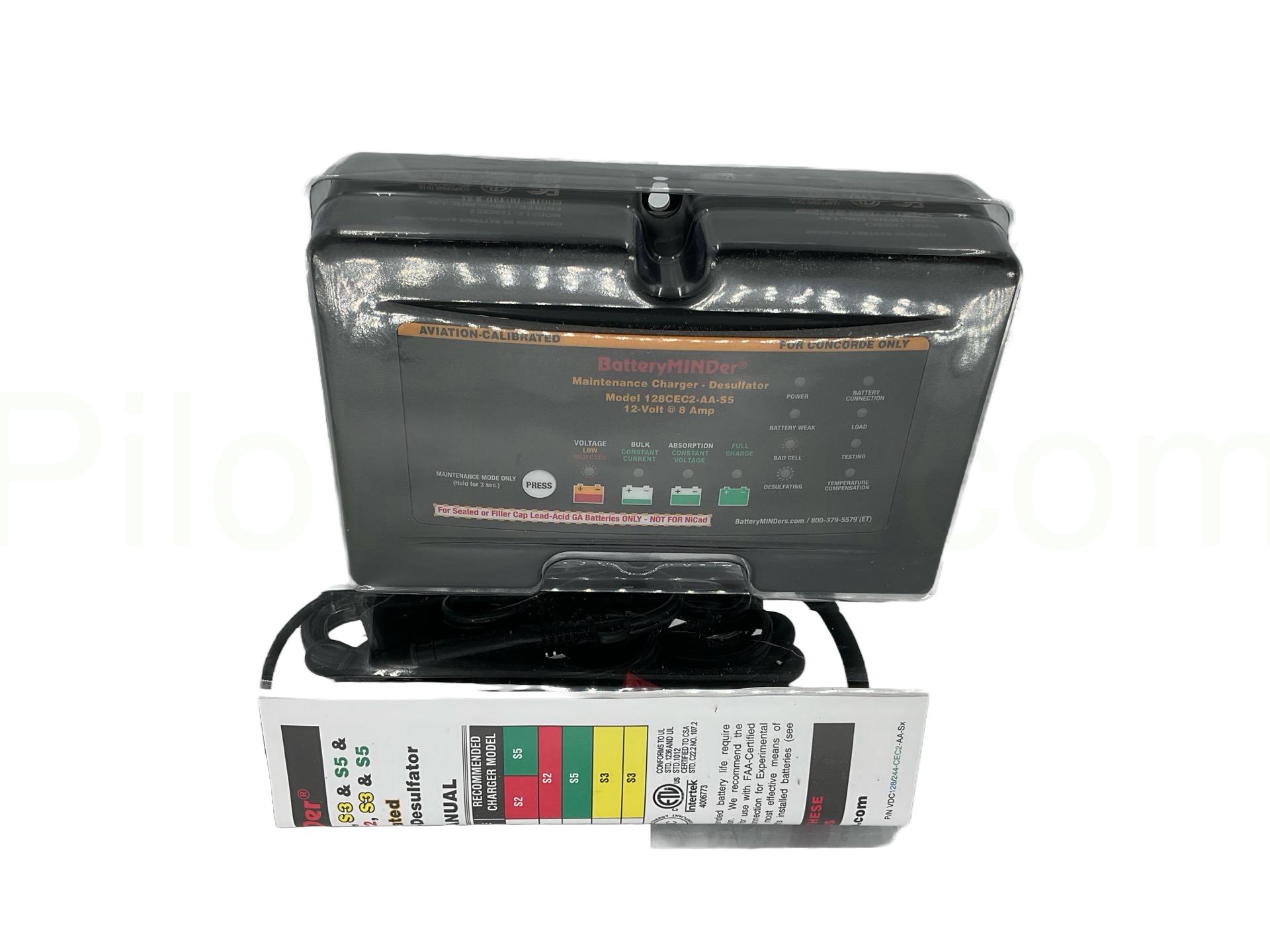

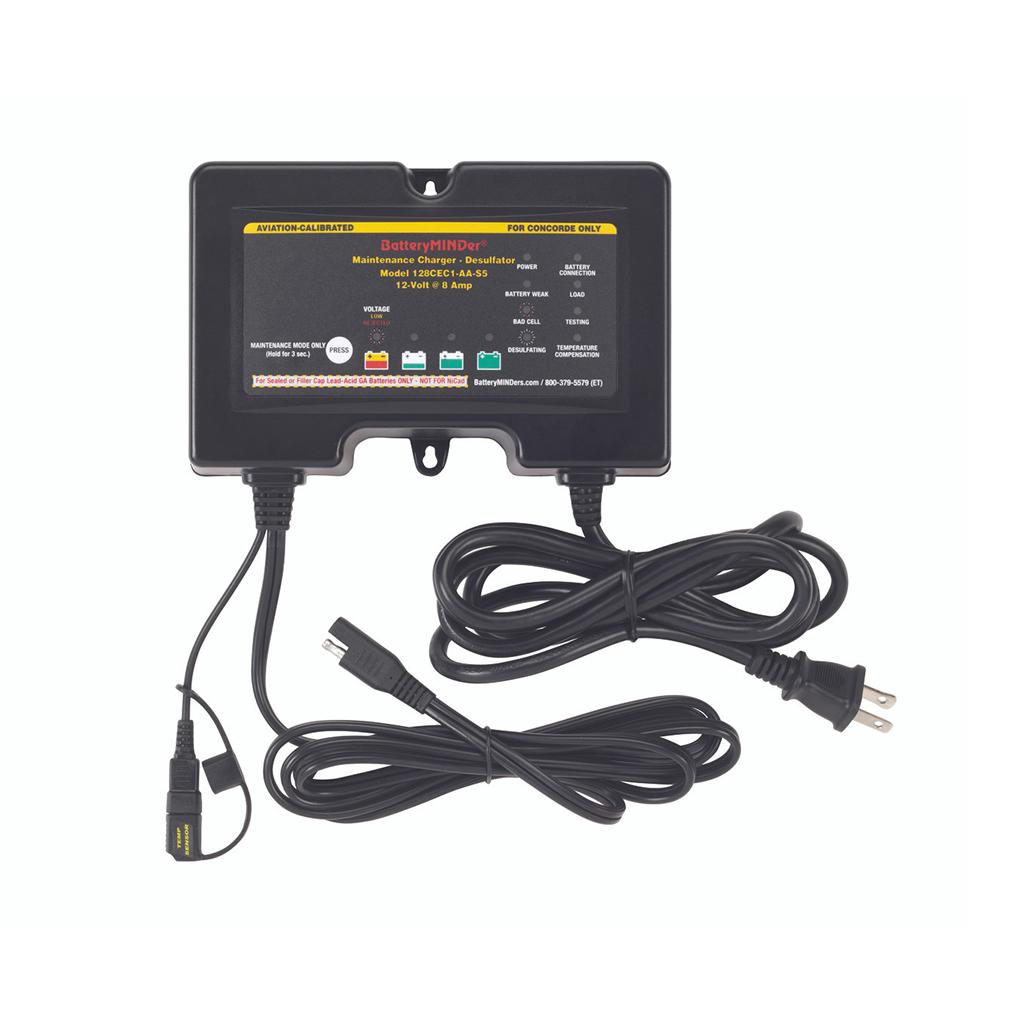

BatteryMINDer® 128CEC2-AA-S5 12V 8A Concorde® Aviation Battery Charger/Maintainer/Desulfator
The 128CEC2-AA-S5 is a 12V - 8A CEC2 Charger/Maintainer for Concorde Batteries
Features & Benefits:
BatteryMINDer® Model 128CEC2-AA-S5: 12-Volt 8 AMP CONCORDE® Aircraft Battery Charger/Maintainer/Desulfator
These chargers-maintainers-desulfators are designed for all size and type 12-Volt Concorde® Aviation Batteries. If you want the longest possible life and performance from your batteries there is no other product better at doing just this and BatteryMINDer® Guarantees it!
NOTE: NONE OF OUR AIRCRAFT MODELS ARE DESIGNED TO FUNCTION AT INPUT VOLTAGES ABOVE 120 VAC EXCEPT WHEN COMBINED WITH AN ISOLATION STEP-DOWN TRANSFORMER.
• Guaranteed to never overcharge/undercharge. (33°F to 130°F)
• Tested and endorsed by leading Battery makers.
• 100% Full-Time U.S. Patented Pulse-type Desulfation keeps battery free of sulfate or dissolves sulfate completely in older batteries.
• Detects and rejects batteries with bad cells.
• Terminate charge to prevent out-gassing.
• Maximize battery life and capacity, recovers weak batteries.
• Diagnoses battery’s condition / state-of-charge.
• Recovers weak or deeply discharged batteries: including but not limited to flooded filler cap, maintenance-free, valve regulated lead-acid (VRLA), sealed lead-acid (SLA), starter, deep cycle and hybrid.
• Maintain up to 2 batteries at a time (requires BatteryMINDer® Y-Connector Accessory 210-AY).
• Auto-Restart after power failure.
• Bad cell detection with auto-shutdown.
• Includes Short circuit, spark, reverse polarity protection, thermal runaway protection, automatic D/C disconnect on A/C failure and quick-connect/disconnect fused alligator clip assembly.
• Very high efficiency.
• California CEC Approved.
• Certified to California Energy Commission Standards.
• Automatically detects input AC power.
• ECO-mode with hi-efficiency / low power consumption. This allows the unit to always remain connected to AC while consuming very low level of electricity.
• Ambient temperature compensation. Built-in temperature sensor automatically adjusts charge rate to ensure full-charge. (as low as 0°F or as high as 130°F)
• 12 LED indicators show state-of-charge and important status mode / battery condition.
• Rugged, vibration-resistant construction.
• Never connect two or more batteries together before fully charging each and checking their condition. Failure to fully charge each battery and check their condition can result in a serious safety hazard.
What's in the Box
• Model 128CEC2-AA-S5 Charger-Maintainer-Desulfator
• 6' AC cord, 6' DC cord with quick connector (SAE)
• Auto-Temp Compensation Sensor (Installed)
• 2' Insulated Battery Clip Cord Set with Quick Connector and 15A replaceable fuse
| General Information | |
|---|---|
| Part # | 128CEC2-AA-S5 |
| Manufacturer | BatteryMINDer |
| Shipping Information | |
|---|---|
| Product Weight | 3.15 lbs. |
| Product Dimensions | 13 x 12 x 4 in. |
| Schedule B | 8504409520 |
| ECCN | EAR99 |
| Specifications | |
|---|---|
| Charging Current | 8 AMP |
| Comes with | Auto-Temp Compensation Sensor (Installed), 2' Insulated Battery Clip Cord Set with Quick Connector and 15A replaceable fuse, 2' Ring Terminal, Cord Set, Instruction Manual |
| International Standard | IP65 |
| Multiple Batteries (#) | 2 |
| Optional Accessories | 210AY, 210RT, ABS-248, ATS-1, BCAA, BM-AIK2, DCE12, DCE25, RTA-2415EXP, VPP12 |
| Overcharge Protection | Yes |
| Polarity Reversal Protection | Yes |
| Power Source | 90-140 VAC, 47-63 Hz |
| Product Dimensions | 4.9” L x 7.3” W x 2.1” H |
| Temperature Compensation | Yes, -4°F (-20°C) to 122°F (50°C) |
| Voltage | 12V |
| Warranty | 5 Year |
| Works With | 12V Concorde® Aviation Batteries. |
Customers also viewed
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
This item is for use on all aircraft.
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
The 128CEC2-AA-S5 is aviation-calibrated for Concorde sealed valve-regulated AGM and flooded lead-acid batteries. This ensures the correct charging and float voltages are applied for Concorde battery chemistry. Using a charger designed for the exact battery type helps maintain airworthiness and optimize service life.
The charger follows a structured sequence that includes Soft-Start, Constant Current (Bulk), Constant Voltage (Absorption), Battery Test, and Float (Maintenance) stages. This controlled progression allows the battery to reach full charge safely without overcharging. By automatically transitioning to maintenance mode, the unit supports long-term battery health.
Soft-Start is activated when battery voltage is below 10.5V and applies a low constant current to gently raise voltage. This prepares weak or neglected aviation batteries for the full 8-amp bulk charge stage. If the voltage is too low, the charger may reject the battery to prevent unsafe charging conditions.
The 128CEC2-AA-S5 includes an Ambient Temperature Sensor (ATS-1) that automatically adjusts the output voltage based on temperature. The Temperature Compensation LED indicates when cold or hot adjustments are being applied. This prevents overcharging in hot conditions and undercharging in cold environments, which can lead to sulfation or freezing.
Yes, once fully charged, the unit automatically enters Float (Maintenance) mode. In this stage, it can remain connected indefinitely to maintain optimal voltage and prevent sulfation. Continuous maintenance is recommended to maximize the longevity of the Concorde aviation battery.
The LED indicator system provides real-time feedback, including Battery Weak (amber), Bad Cell (red flashing), and Testing (blue) indicators. During the Battery Test stage, the charger applies a load and checks voltage retention. These built-in diagnostics help technicians quickly assess whether a Concorde battery is serviceable.
Avoid charging in tightly confined areas unless proper ventilation is available, as hydrogen gas may accumulate. For FAA-certified aircraft, the optional BM-AIK2 Airframe Interface Kit is recommended for safe, compliant, quick connection. Always follow the battery manufacturer’s Instructions for Continued Airworthiness (ICA).
The charger continuously applies desulfation pulses whenever it is outputting current. This helps break down sulfate buildup that forms when aviation batteries sit partially discharged. Over time, desulfation improves capacity retention and helps meet required capacity test standards.
The 128CEC2-AA-S5 can maintain up to two fully healthy, fully desulfated batteries when properly configured. Each battery must be individually tested and fully charged before connecting them in parallel for maintenance. Attempting to desulfate multiple batteries at once is not recommended.
After charging and allowing the battery to “rest” for 8 to 12 hours, a fully charged 12V battery should measure approximately 12.9 to 13.1 volts open circuit. Readings below 12.4V may indicate significant sulfation or reduced capacity. Proper testing after a rest period ensures accurate state-of-charge evaluation.
