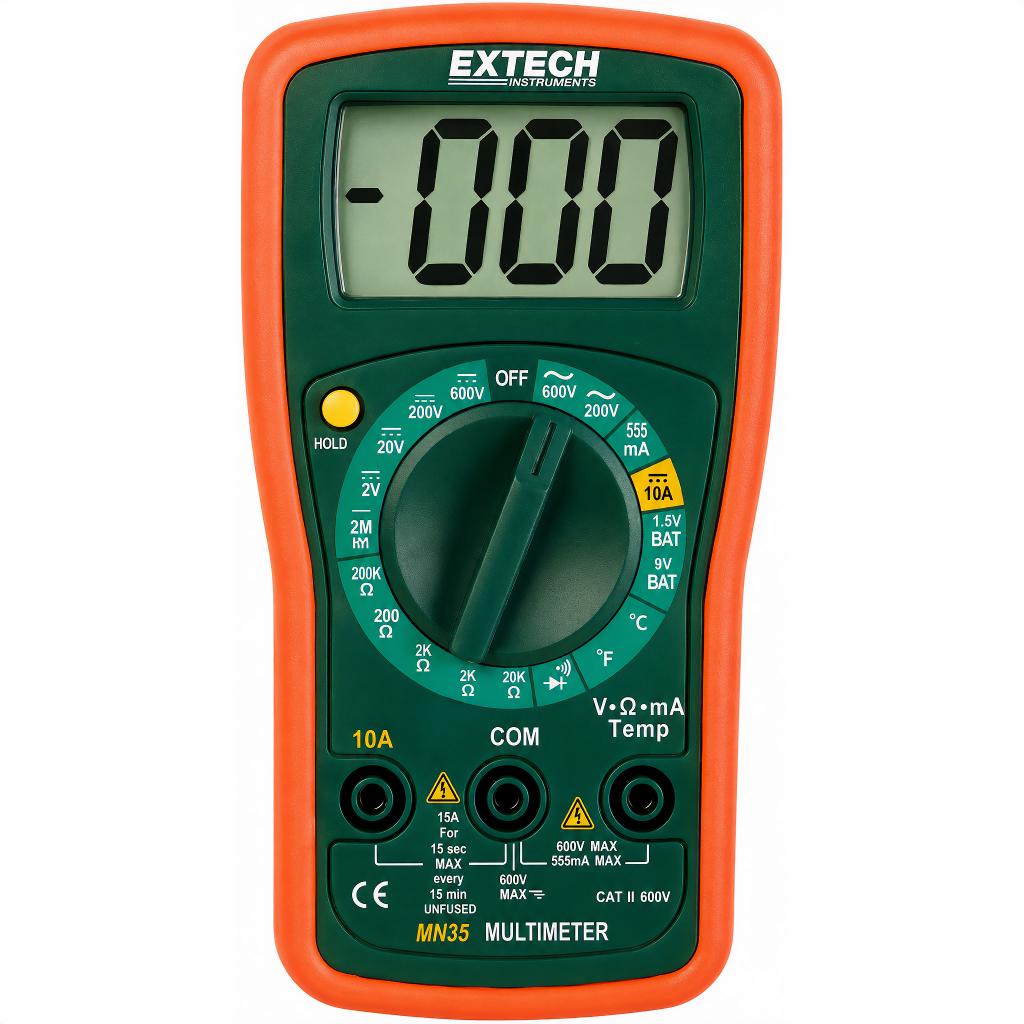

Extech MN35 Digital Mini Multimeter

The multimeter incorporates internal fuse protection specifically for its milliamp (mA) measurement circuit, utilizing a 250mA/250V fast-blow fuse to protect the internal components from unexpected overcurrent conditions. However, technicians should be aware that the high-current 10A measurement range is entirely unfused and lacks overcurrent protection. Because the 10A pathway is unprotected, current measurements on this scale must not exceed a maximum duration of 15 seconds, and each test must be followed by a full 15-minute cool-down period to prevent catastrophic thermal damage to the meter or test leads.

The Extech MN35 features an input impedance of 10Ω when configured for DC voltage measurements and 4.5Ω when testing AC voltage lines. This exceptionally high input impedance ensures that the multimeter acts as a minimal load on sensitive circuits, avoiding the common diagnostic pitfall known as circuit loading. For avionics technicians and electronics specialists, this high impedance is crucial because it ensures the meter will not draw significant current from the system under test, thereby yielding highly accurate, uncorrupted voltage measurements on complex control boards.

The continuity check on the Extech MN35 features a dedicated built-in buzzer that provides rapid audio feedback without requiring the user to look away from their test probes to check the screen. The audible signal automatically sounds if the resistance of the circuit under test falls below a specific threshold of approximately <40Ω ± 5Ω. This makes it an ideal setting for aviation mechanics tracing dense wire bundles, validating structural grounding points, or checking circuit-breaker buses for clean paths.

When the internal power level drops beneath a safe threshold, a dedicated low-battery icon automatically appears on the 1999-count LCD screen to notify the operator that a replacement is required. Utilizing the meter while this icon is active is not recommended, as low battery voltages can destabilize the internal analog-to-digital converters and yield inaccurate measurement data. To maintain peak operational accuracy, the meter requires a single fresh 9V battery (such as a NEDA 1604 or equivalent configuration) to run its internal testing components.

This digital mini multimeter is calibrated to deliver its stated accuracy specifications when used at an ideal ambient temperature of 73°F ±10°F (23°C ±5°C) under a relative humidity of less than 70%. In broader operational conditions, it safely functions at altitudes up to 7,000 feet (2,000 meters) and ambient temperatures spanning 32°F to 104°F (0°C to 40°C). Furthermore, its maximum allowable relative humidity is 80% for temperatures up to 88°F (31°C), which then decreases linearly down to 50% relative humidity as the temperature climbs toward 104°F (40°C).

To measure a diode, you connect the black lead to the negative COM jack, the red lead to the positive terminal, and turn the rotary dial to the diode position. When testing a healthy semiconductor device in the forward-bias direction, the meter typically indicates a normal forward voltage drop between 0.4V and 0.7V. If a component is completely shorted, the screen will drop near 0mV, whereas an open-circuit device or reverse-biased connection will trigger an overrange indication of "1." on both polarities.

If the electrical value being evaluated exceeds the parameters of the manually selected dial range, the 1999-count LCD display will freeze and show either a "1" or a "-1" symbol. This is an overrange notification indicating that the current signal is too large for the meter's active configuration. When troubleshooting unexpected overrange readings on a manual meter, the technician should immediately adjust the rotary function switch upward to a successively higher measurement range until a valid reading is resolved.
