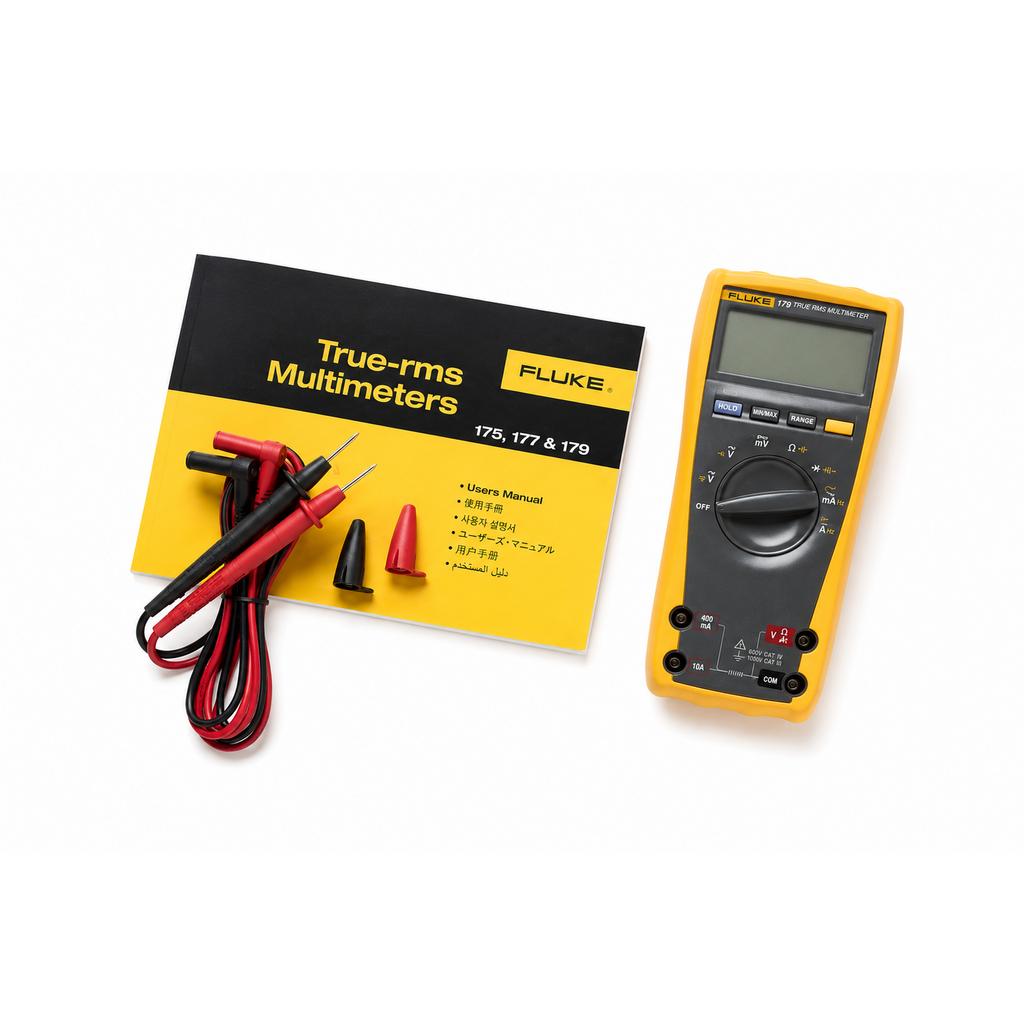

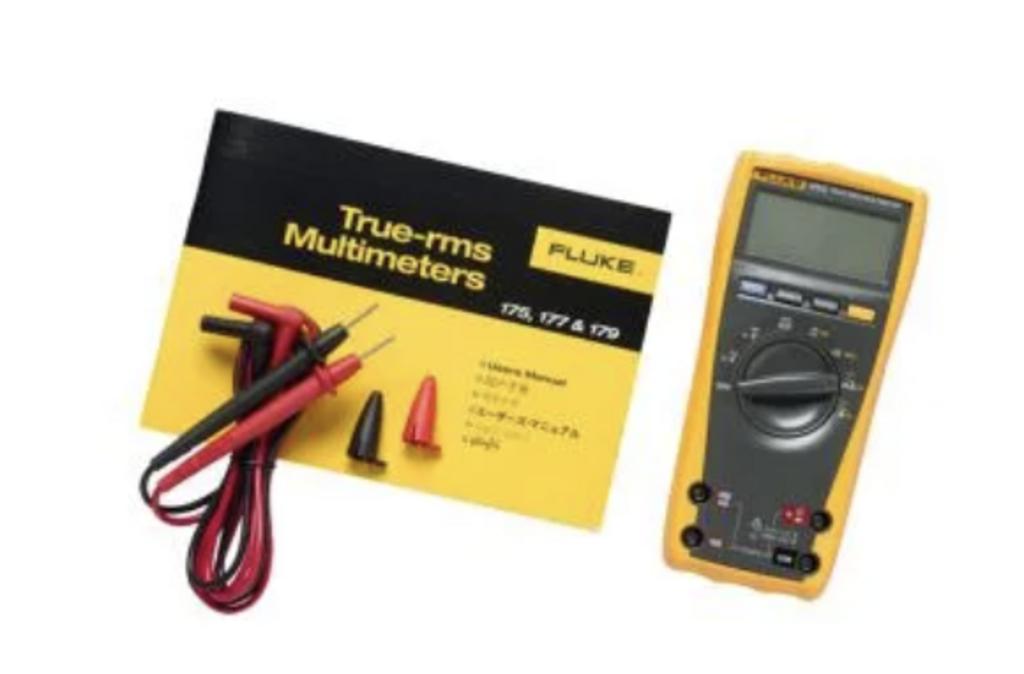

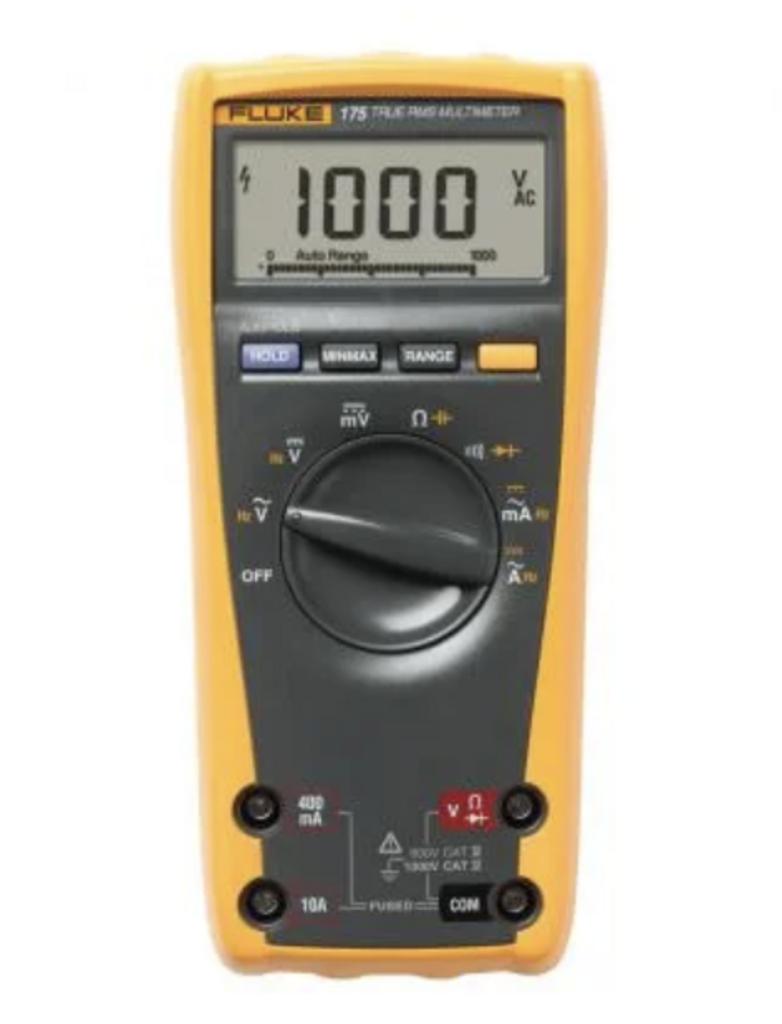

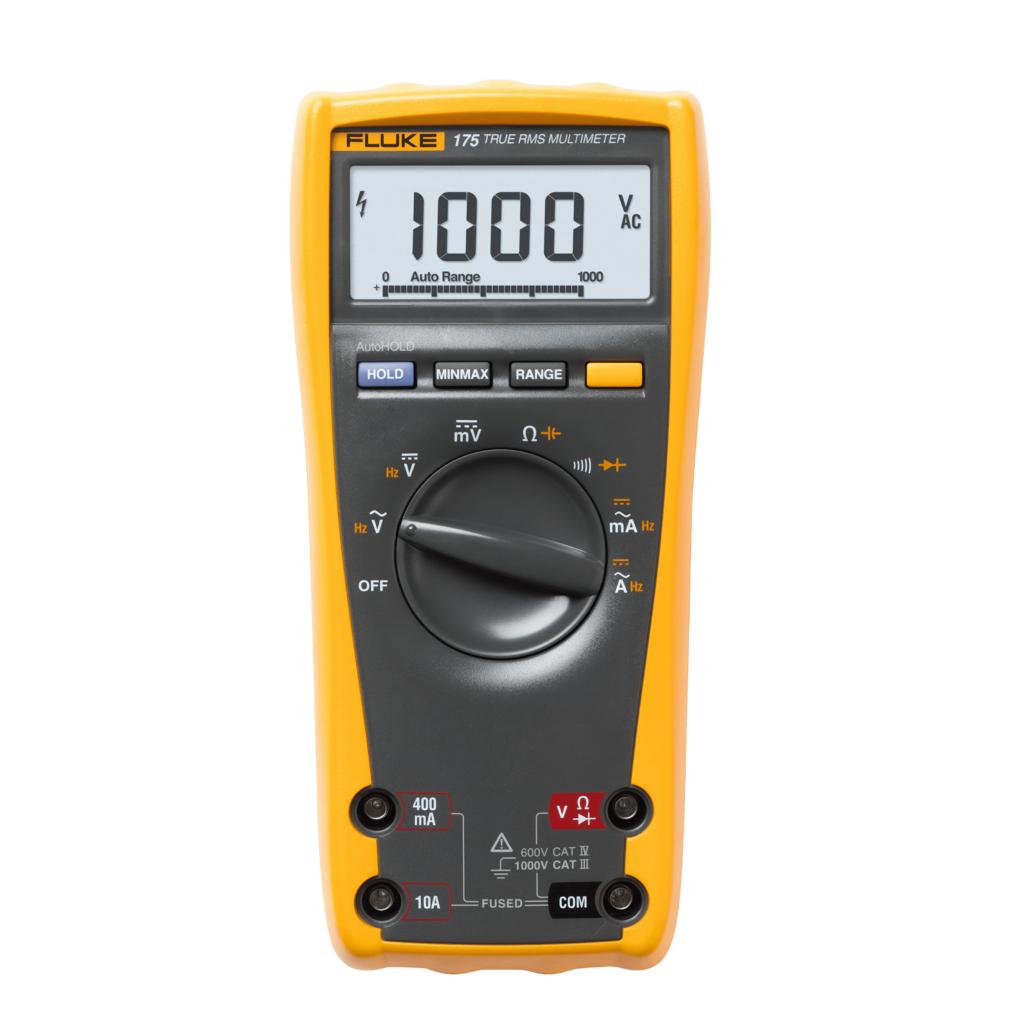

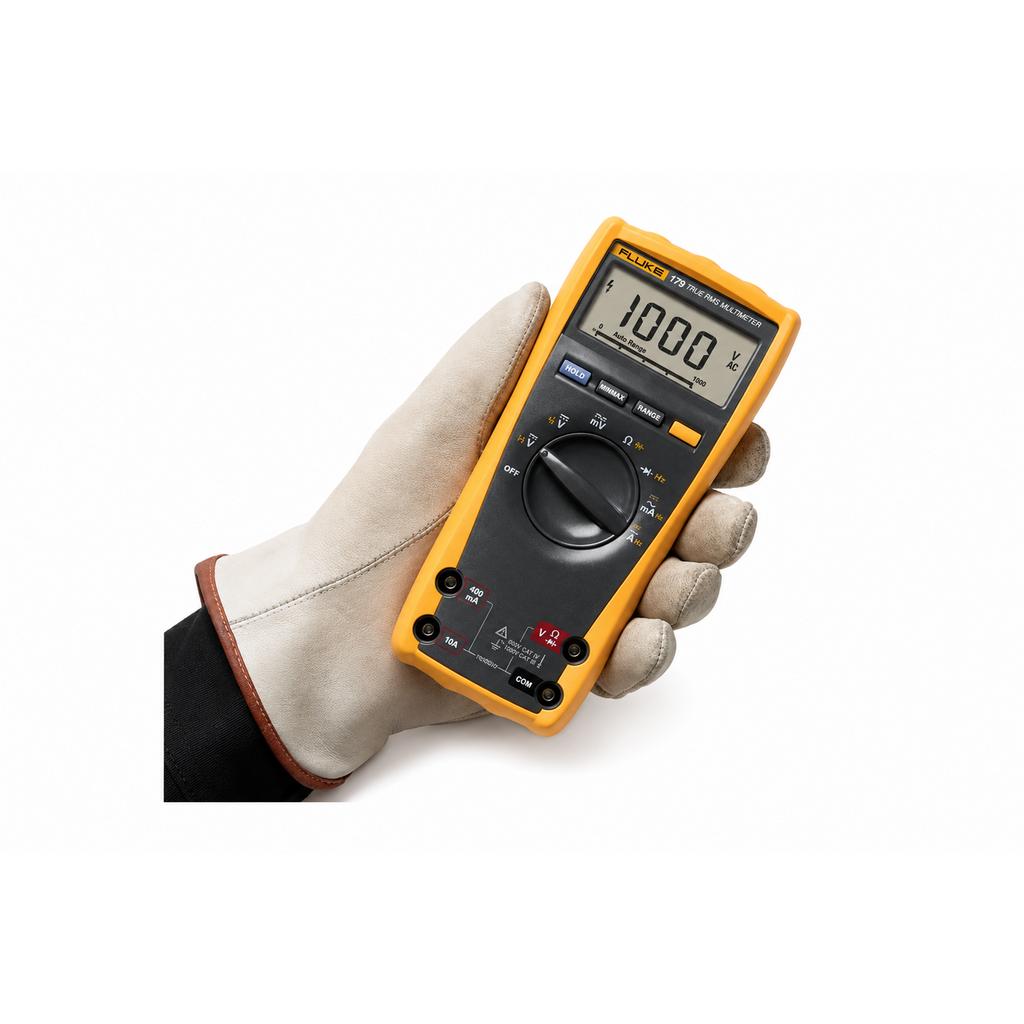

Fluke 175 True-RMS Multimeter - Fluke-175

The Fluke 175 True-RMS Digital Multimeter is the entry point into Fluke's ESFP (Engineered Solutions for Professionals) series, delivering True-RMS accuracy, 1000V measurement range, and CAT III 1000V safety in a straightforward instrument without analog bargraph, temperature, or data logging. For technicians who need reliable professional-grade voltage and current measurement at 1000V without the added features and cost of the 177 or 179, the 175 provides core ESFP quality in the most accessible package.

Key Features

• True-RMS Measurement: Accurate readings on non-linear loads including electronic ballasts, drives, and switching power supplies, where averaging meters give incorrect values that lead to mis-sized protection and incorrect fault diagnoses.
• 1000V AC/DC Range: Full industrial voltage coverage, 120V through 600V three-phase distribution plus DC systems to 1000V, with the CAT III 1000V safety rating required for panel work at these voltages.
• 6,000-Count Display with Backlight: Professional-grade resolution with backlit digits for low-light work environments.
• Current to 10A: Branch circuit and equipment load current measurement without a separate clamp meter on standard maintenance tasks.
• Resistance to 50MΩ: Conductor identification, open-circuit verification, and basic insulation spot-checks.
• Capacitance Measurement: Motor run/start capacitor testing and filter cap verification.
• Min/Max Recording: Captures voltage and current peaks during load switching and motor starts.
• CAT III 1000V Safety: Rated for secondary distribution and panel measurements up to 1000V.

Technical Specifications Overview

The 175 measures AC/DC voltage to 1000V, current to 10A, resistance to 50MΩ, capacitance, and frequency. It omits the analog bargraph of the 177/179 and the temperature input of the 179. For technicians who need a reliable 1000V True-RMS meter and aren't using bargraph or temperature functions, the 175 delivers the core ESFP measurement platform at the lowest price in the series.

Electrical Maintenance Applications

• Distribution panel voltage and current measurement at 120V through 600V systems
• Industrial motor supply voltage verification and current draw measurement
• Control circuit diagnostics on relay panels, PLCs, and motor starters
• Basic electrical troubleshooting in commercial and light industrial environments

Fluke 175 Calibration

PJi operates an ISO/IEC 17025 Accredited Calibration Lab and provides NIST-traceable calibration for the Fluke 175 at the time of purchase, add calibration to your order at checkout. Our calibration documentation satisfies FAA Part 145 tool control requirements, ISO 9001 quality system records, and AS9100 calibration traceability requirements. For repair stations and quality-certified facilities that require documented traceability, PJi is the one-stop source: the instrument and the calibration certificate in a single transaction. Calibration-only companies cannot sell you the instrument. Major retailers cannot calibrate it. PJi does both.

Why Buy from Pilot John International

Pilot John International is an authorized Fluke distributor with specialized expertise serving aviation maintenance, FAA Part 145 repair stations, and industrial MRO facilities. Unlike Amazon, Grainger, or Test Equipment Depot, which sell Fluke instruments but offer zero calibration services, PJi's in-house ISO/IEC 17025 Accredited Calibration Lab calibrates your instrument at purchase. We stock the full Fluke catalog, ship same-business-day on in-stock items, and our technical staff understands the demands of aviation and industrial electrical maintenance.
