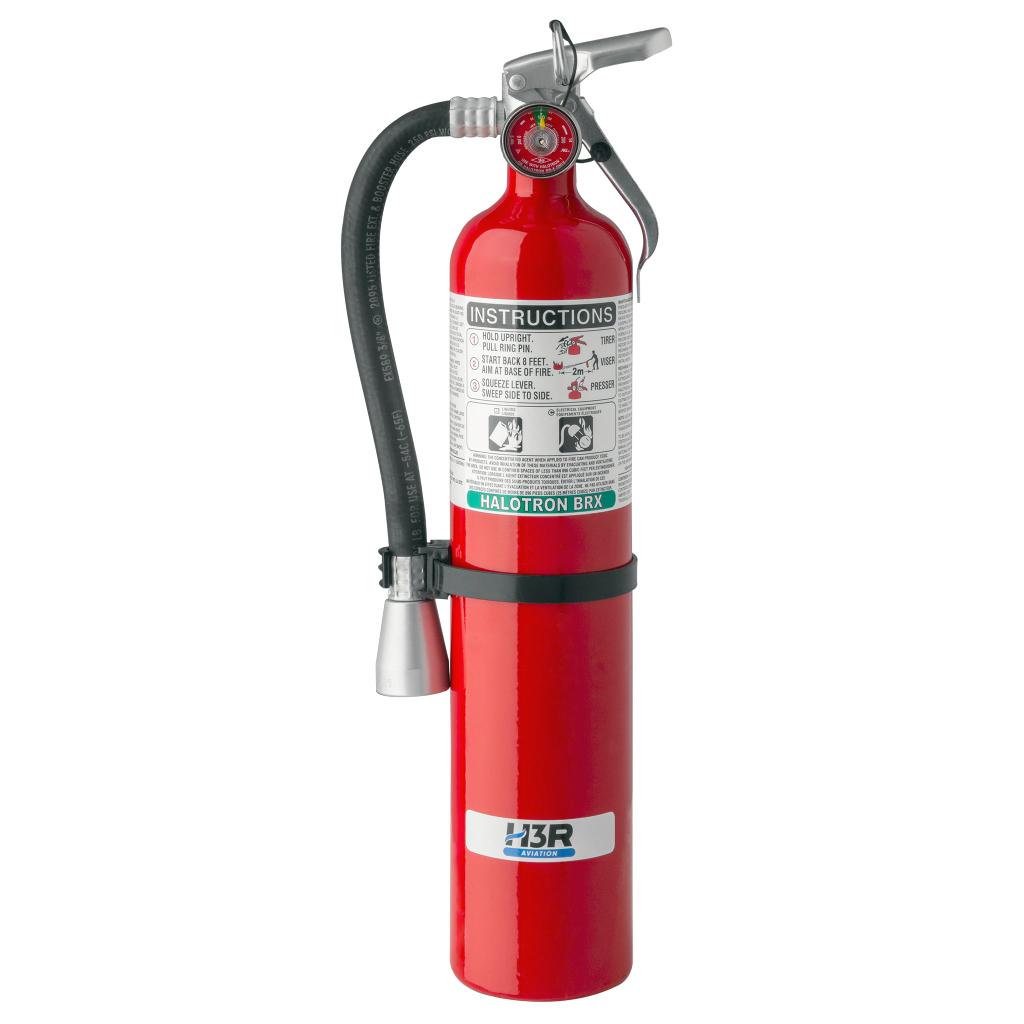

H3R Aviation 349TS Halotron BrX Fire Extinguisher with Bracket – 3.75 lbs, Red
The H3R Aviation 349TS Halotron BrX Fire Extinguisher with Bracket is a 3.75 lb, halon-free aviation fire extinguisher designed for clean, compliant fire suppression. Powered by Halotron® BrX (stabilized 2-BTP), it provides effective, residue-free protection against Class B and Class C fires while meeting international aviation safety standards.
Equipped with a discharge hose for added precision and control, this lightweight clean agent fire extinguisher is an environmentally responsible replacement for Halon 1211 units and ideal for use around sensitive aircraft systems and avionics.
Key Features
- Contains 3.75 lb. of Halotron BrX (stabilized 2-BTP), a halon-free clean agent with zero ozone depletion potential
- UL rated 5B:C for suppression of flammable liquid and electrical fires
- Discharge hose allows improved control and flexibility during deployment
- Approved or meets the requirements of ICAO, UL, ISO, EN, EASA, and FAA standards
- 10-12 ft. discharge range and 9-second discharge time support reliable fire coverage
- Height of 17.6" and 3.25" diameter provide a compact yet high-capacity profile
- 12-year service life with a non-rechargeable design for low-maintenance operation
- Not for use in enclosed spaces smaller than 896 ft³ per extinguisher
- Included bracket: 898
- Optional bracket: BKT325
The 349TS is an ideal choice for aviation professionals and operators who prefer hose-equipped fire extinguishers and need an environmentally conscious, globally compliant replacement for traditional Halon units.
| General Information | |
|---|---|
| Part # | 349TS |
| Manufacturer | H3R Aviation, Inc. |
| Shipping Information | |
|---|---|
| Schedule B | 8424100000 |
| ECCN | 9A991.d |
| Hazmat/Dangerous Goods | Yes |
| Specifications | |
|---|---|
| Agent weight | 3.75 lb. / 1.701 kg |
| Cylinder diameter | 3.25 in. / 8.3 cm |
| Discharge range | 10-12 ft. / 3.05-3.66 m |
| Discharge time | 9 sec. |
| Discharges from | Hose |
| Gross weight | 5.75 lb. / 2.610 kg |
| Height | 17.6 in. / 44.7 cm |
| Included bracket | 898 |
| Optional bracket | BKT325 |
| UL Classification | 5B:C |
| Width | 5.9 in. / 15.0 cm |
Customers also viewed
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* |
|---|
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
The 349TS Halotron BrX fire extinguisher is UL-rated for Class B and Class C fires, making it intended for flammable liquid and electrical fires commonly encountered in aircraft and hangar environments. While it may suppress small incidental Class A fires, it is not primarily rated for ordinary combustibles. Halotron BrX is a clean agent, making it suitable for use around sensitive avionics and electrical systems. Always follow aircraft emergency procedures when deploying a fire extinguisher.
Halotron BrX is designed as a more environmentally responsible alternative to Halon 1211. It provides effective fire suppression while reducing concerns about ozone depletion associated with legacy Halon agents. Like Halon, Halotron BrX leaves no corrosive residue, helping protect cockpit electronics and instruments. This makes it a practical option for aircraft fire protection.
Clean-agent fire extinguishers, like the 349TS, help prevent secondary damage to avionics, wiring, and interior components. Unlike dry chemical extinguishers, Halotron BrX does not leave powder residue that can corrode or contaminate aircraft systems. In confined aircraft cabins, minimizing cleanup and visibility obstruction is critical. This helps protect both passengers and costly aircraft components.
Yes, the H3R Aviation 349TS includes a mounting bracket that allows secure installation in various positions, including horizontal mounting. The most important consideration is ensuring the latch is accessible for rapid removal during an emergency. Proper mounting improves safety and response time. Installation should always follow manufacturer guidelines.
The 349TS Halotron BrX fire extinguisher provides a rapid discharge designed to quickly suppress flames in an emergency. Discharge time is typically around 10 seconds, depending on usage technique. Because the discharge window is limited, users should aim at the base of the fire and apply short, controlled bursts. Quick and accurate deployment is essential in aircraft environments.
Yes, the 349TS Halotron BrX extinguisher is rechargeable after discharge. It should be serviced by a qualified fire equipment technician in accordance with the manufacturer's recommendations. Rechargeability extends the unit’s service life and supports long-term aviation safety planning. Routine inspection remains important even if the extinguisher has not been used.
Aircraft fire extinguishers should be inspected regularly in accordance with FAA guidance and manufacturer recommendations. Inspections typically include checking the pressure indicator, verifying the weight, and ensuring the mounting bracket remains secure. Regular inspection ensures the extinguisher is fully charged and ready for immediate use. Maintenance documentation supports airworthiness compliance.
Yes, the H3R Aviation 349TS is well-suited for general aviation aircraft due to its compact size and clean-agent performance. Its bracket allows installation within reach of the pilot or crew. Halotron BrX provides effective suppression without damaging cockpit electronics. This makes it a strong safety addition for piston and light turbine aircraft.
Common mistakes include improper mounting, failing to inspect pressure levels, and storing the extinguisher in an inaccessible location. Neglecting routine weight checks can also result in discovering a partially discharged unit during an emergency. Ensuring accessibility and consistent inspection improves emergency readiness. Fire safety equipment must always remain serviceable and within reach.
Aircraft owners may select Halotron BrX for its balance of performance and environmental considerations. It delivers clean-agent suppression similar to Halon while aligning with evolving environmental standards. For operators seeking an alternative to Halon-based systems, Halotron BrX offers effective protection without powder residue. Choosing the right fire extinguisher depends on aircraft type, mission profile, and regulatory considerations.
