Ideal 30-500 Crimpmaster Ratchet Crimp Tool 22-10 AWG

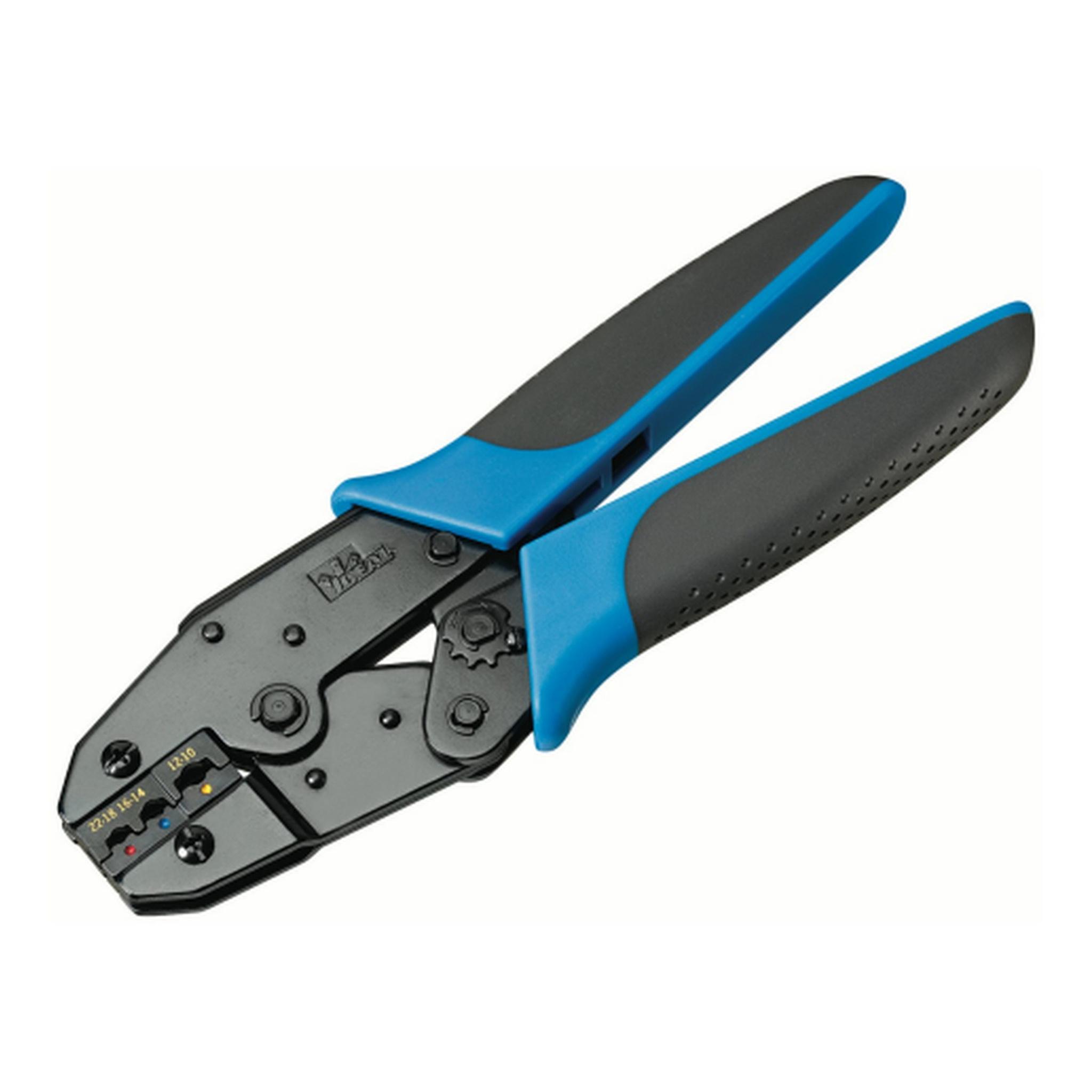

The Ideal 30-500 Crimpmaster is a complete ratchet crimping tool kit, frame and die set included, ready to crimp insulated wire terminals right out of the box. The included die set handles 22-10 AWG insulated ring, butt, and spade terminals across three color-coded cavities: red (22-18 AWG), blue (16-14 AWG), and yellow (12-10 AWG).

Key Features

• Includes the 30-506 Crimpmaster frame and 30-579 insulated terminal die set — no additional purchase needed
• 3-cavity color-coded die: Red 22-18 AWG, Blue 16-14 AWG, Yellow 12-10 AWG
• Full-cycle ratchet prevents under-crimping; tool will not open until the crimp cycle is complete
• Ratchet release lever allows the tool to be opened mid-cycle if needed
• Fine blanked high carbon steel frame with black oxide coating for durability in demanding shop environments
• Six-position cam wheel adjusts to die set variations
• Additional die sets sold separately — upgrade to handle RF, coax, modular plug, and more connector types

Specifications

• Wire Range: 22-10 AWG (0.324 mm² – 5.261 mm²)
• Included Die Set: 30-579 Insulated Terminals
• Cavity Colors: Red (22-18 AWG), Blue (16-14 AWG), Yellow (12-10 AWG)
• Terminal Types: Insulated ring, butt, and spade terminals
• Frame Material: Fine blanked high carbon steel, black oxide finish
• Warranty: Limited 1 Year

Applications

Ideal for electricians, MRO technicians, and avionics maintenance professionals who need a reliable ratchet crimping tool for insulated wire terminal work. The color-coded die cavities eliminate guesswork and help maintain consistent, repeatable wire terminations across 22-10 AWG wire sizes — a common range in both aircraft electrical systems and commercial electrical installations.
