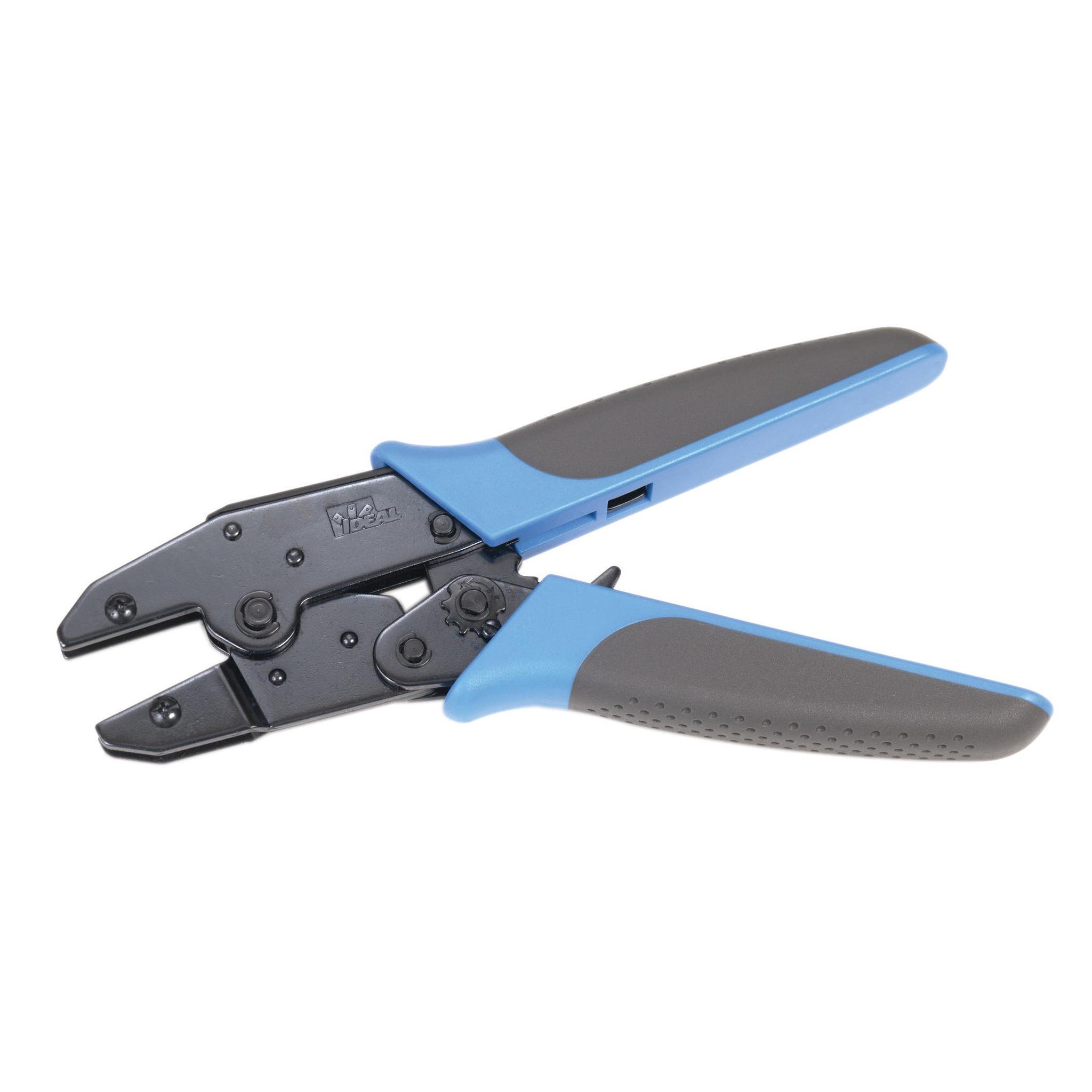

Ideal 30-506 Crimpmaster Ratchet Crimp Tool Frame

The Ideal 30-506 Crimpmaster is a professional-grade ratcheting crimp tool built for heavy daily use in electrical, datacomm, and avionics maintenance environments. Its thick-walled frame is manufactured from fine blanked high carbon steel with a durable black oxide coating, and the large contoured handles with rounded edges deliver exceptional comfort and leverage through every crimping cycle.

Key Features

• Compatible with 13+ interchangeable Crimpmaster die sets for RF connectors, wire terminals, and modular plugs
• Full-cycle ratchet mechanism prevents under-crimping, tool will not release until the crimp is complete
• Ratchet release lever between handles allows the tool to be opened mid-cycle if needed
• Six-position cam wheel adjusts to accommodate die set variations
• Precision-ground die sets change quickly with a flat or Phillips screwdriver, no tools required beyond a screwdriver
• Requires no factory calibration; general-purpose crimping tool not intended for calibrated applications
• Black oxide coating resists corrosion in shop environments

Specifications

• Termination Method: Crimp
• Frame Material: Fine blanked high carbon steel, black oxide finish
• Compatible Die Sets: 13+ interchangeable Crimpmaster dies
• Connector Types: RF coaxial, wire terminals, modular plugs
• Warranty: Limited 1 Year

Applications

The 30-506 is the foundation of the Crimpmaster system, pair it with any compatible die set to crimp ring terminals, open barrel connectors, BNC/TNC coaxial connectors, RJ-45 modular plugs, and more. It is a go-to ratcheting crimper for MRO shops, avionics technicians, and electricians who need one platform that handles multiple termination tasks without switching tools.

Ideal 30-506 Calibration

PJi operates an ISO/IEC 17025 Accredited Calibration Lab and provides NIST-traceable calibration for the Ideal 30-506 at the time of purchase — add calibration to your order at checkout. Our calibration documentation satisfies FAA Part 145 tool control requirements, ISO 9001 quality system records, and AS9100 calibration traceability requirements. For repair stations and quality-certified facilities that require documented traceability, PJi is the one-stop source: the tool and the calibration certificate in a single transaction. Calibration-only companies cannot sell you the tool. Major retailers cannot calibrate it. PJi does both.

Why Buy from Pilot John International

Pilot John International is an authorized Ideal Industries distributor with specialized expertise serving aviation maintenance, FAA Part 145 repair stations, and industrial MRO facilities. Unlike Amazon, Grainger, or Home Depot, which sell Ideal tools but offer zero calibration services, PJi's in-house ISO/IEC 17025 Accredited Calibration Lab calibrates your tool at purchase. We stock the full Ideal catalog, ship same-business-day on in-stock items, and our technical staff understands the demands of aviation and industrial electrical maintenance.
