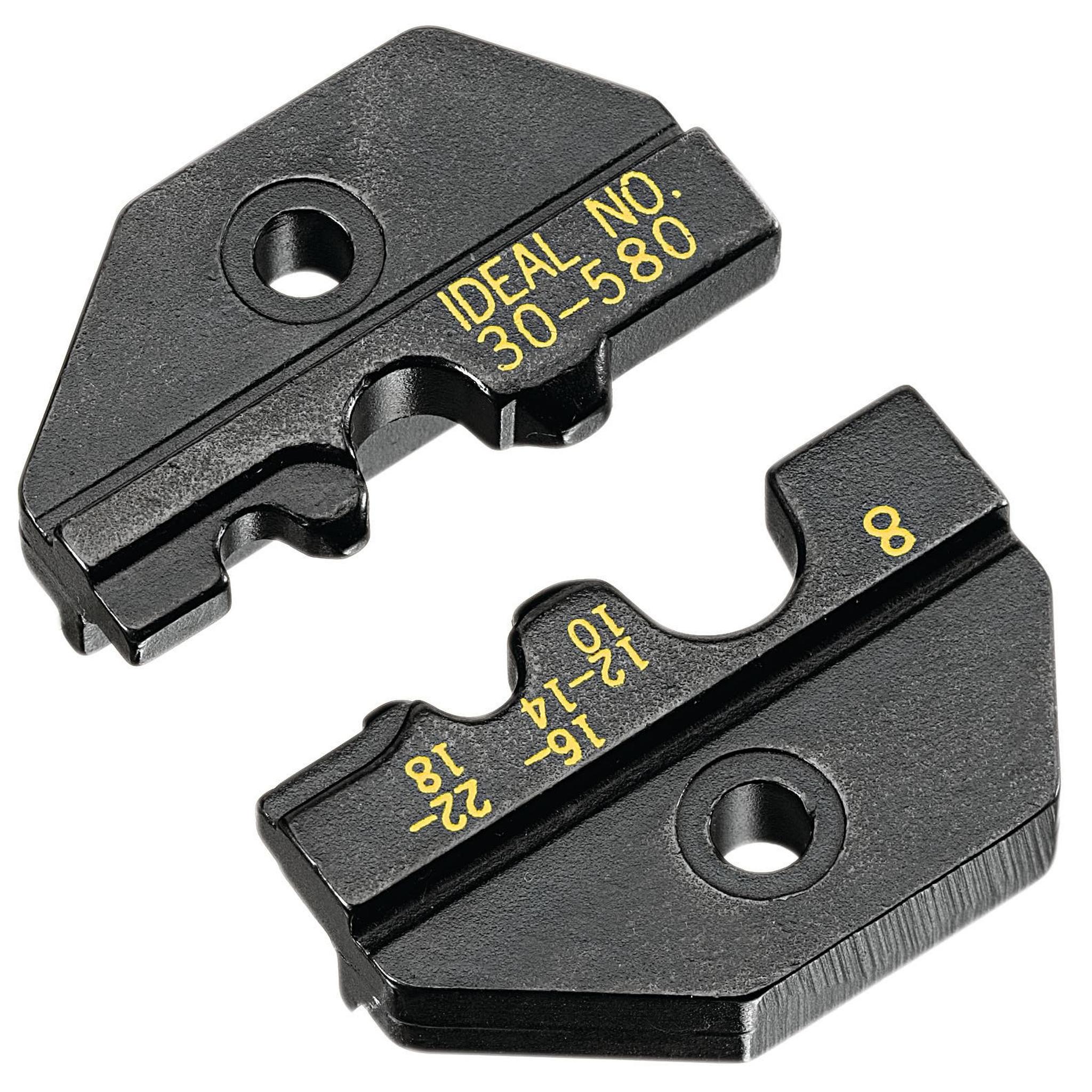

Ideal 30-580 Crimp Die, 22-8 AWG Non-Insulated

The Ideal 30-580 is an interchangeable Crimpmaster die set for crimping 22-8 AWG non-insulated wire terminals and splices. Designed for use with the 30-506 Crimpmaster ratchet crimp tool frame, this die set covers a broad AWG range and is the right choice when working with bare or non-insulated ring terminals, spades, and butt splices in electrical and MRO environments.

Key Features

• Die set only for 22-8 AWG non-insulated terminals and splices
• Interchangeable with the 30-506 Crimpmaster frame; changes with a flat or Phillips screwdriver
• Precision-ground die surfaces ensure consistent, repeatable wire terminations
• Wider AWG range than the insulated terminal die, extends to 8 AWG for heavier wire
• General-purpose die set; not intended for calibrated-tool applications

Specifications

• Wire Range: 22-8 AWG
• Terminal Types: Non-insulated ring, spade, and butt terminals/splices
• Compatible Tool Frame: Ideal 30-506 Crimpmaster
• Calibration Required: No
• Warranty: Limited 1 Year

Applications

Used in electrical panel wiring, MRO shops, and aviation maintenance facilities where bare (non-insulated) terminal crimping is required across a wide wire gauge range. The extended 8 AWG capability makes this die set useful for heavier gauge connections in ground power equipment, GSE wiring, and industrial control panels.

Ideal 30-580 Calibration

PJi operates an ISO/IEC 17025 Accredited Calibration Lab and provides NIST-traceable calibration for the Ideal 30-580 at the time of purchase — add calibration to your order at checkout. Our calibration documentation satisfies FAA Part 145 tool control requirements, ISO 9001 quality system records, and AS9100 calibration traceability requirements. For repair stations and quality-certified facilities that require documented traceability, PJi is the one-stop source: the tool and the calibration certificate in a single transaction. Calibration-only companies cannot sell you the tool. Major retailers cannot calibrate it. PJi does both.
