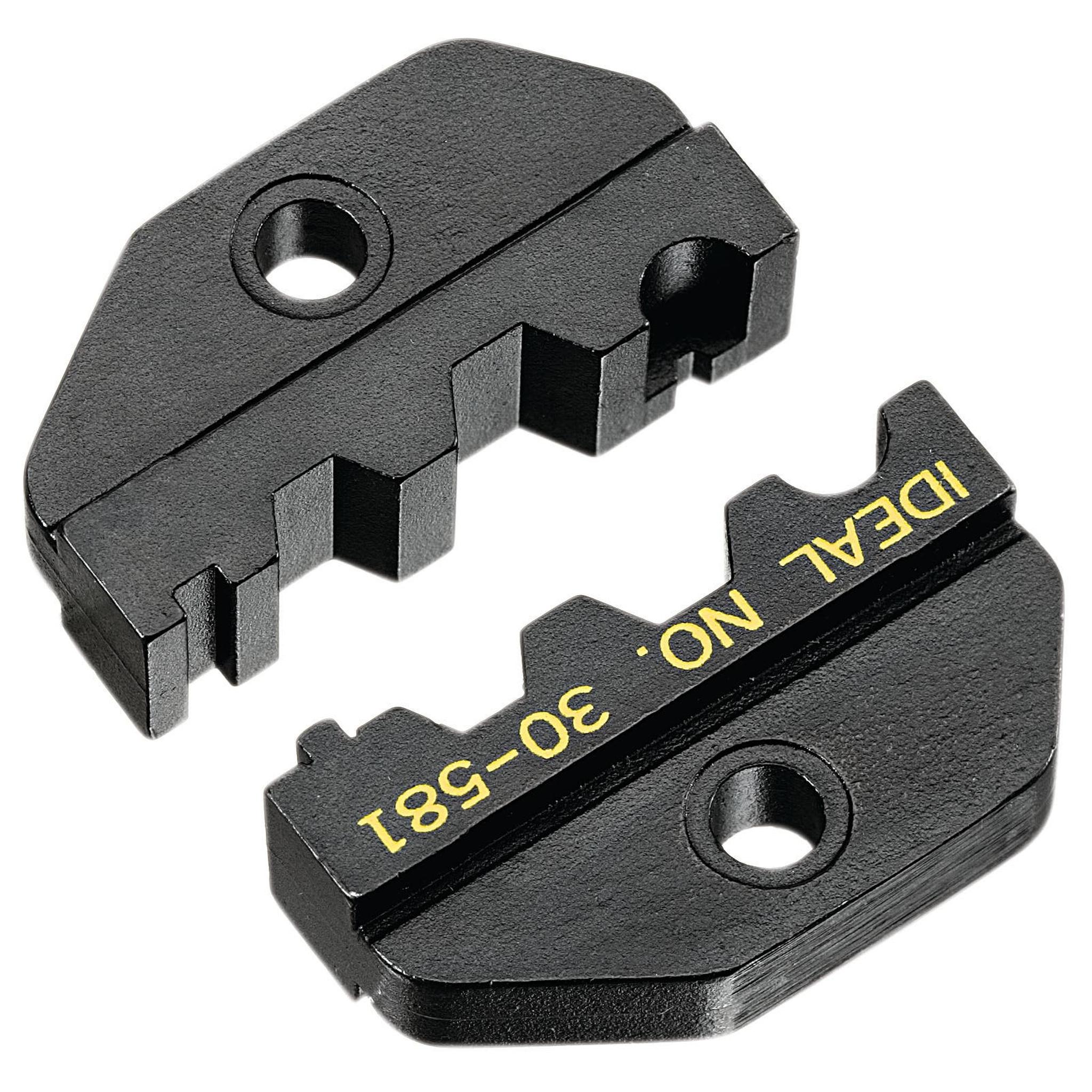

Ideal 30-581 BNC Crimp Die, RG-59 Coaxial Connectors

The Ideal 30-581 is an interchangeable Crimpmaster combo die set for RG-58, RG-59, and RG-62 coaxial cable with BNC and TNC connectors. Designed for use with the 30-506 Crimpmaster ratchet crimp tool frame, this three-cavity hex die delivers precise, consistent crimps across multiple coaxial cable and connector types used in avionics test equipment, video systems, and instrumentation applications.

Key Features

• Die set for RG-58, RG-59, and RG-62 coaxial cable with BNC and TNC connectors
• Three hex cavity sizes: 0.255 in. (6.48 mm), 0.213 in. (5.41 mm), 0.068 in. (1.73 mm)
• Interchangeable with the 30-506 Crimpmaster frame — changes with a screwdriver
• Combo die covers multiple cable types and connector formats in a single die set
• Precision-ground die cavities deliver consistent, reliable coaxial BNC and TNC crimps
• General-purpose die set; not intended for applications requiring calibrated tools

Specifications

• Compatible Cable: RG-58, RG-59, RG-62 Coaxial
• Connector Types: BNC, TNC
• Hex Cavity 1: 0.255 in. (6.48 mm)
• Hex Cavity 2: 0.213 in. (5.41 mm)
• Hex Cavity 3: 0.068 in. (1.73 mm)
• Number of Cavities: 3
• Compatible Frame: Ideal 30-506 Crimpmaster
• Calibration Required: No
• Warranty: Limited 1 Year

Applications

Used by avionics technicians and test equipment specialists for BNC and TNC connector crimping on RG-58, RG-59, and RG-62 coaxial cable in aircraft video systems, transponder and DME antenna connections, and instrumentation cabling. The combo die format consolidates three common coaxial cable types into a single interchangeable die, reducing the number of dies needed in a shop toolkit.

Ideal 30-581 Calibration

PJi operates an ISO/IEC 17025 Accredited Calibration Lab and provides NIST-traceable calibration for the Ideal 30-581 at the time of purchase — add calibration to your order at checkout. Our calibration documentation satisfies FAA Part 145 tool control requirements, ISO 9001 quality system records, and AS9100 calibration traceability requirements. For repair stations and quality-certified facilities that require documented traceability, PJi is the one-stop source: the tool and the calibration certificate in a single transaction. Calibration-only companies cannot sell you the tool. Major retailers cannot calibrate it. PJi does both.
