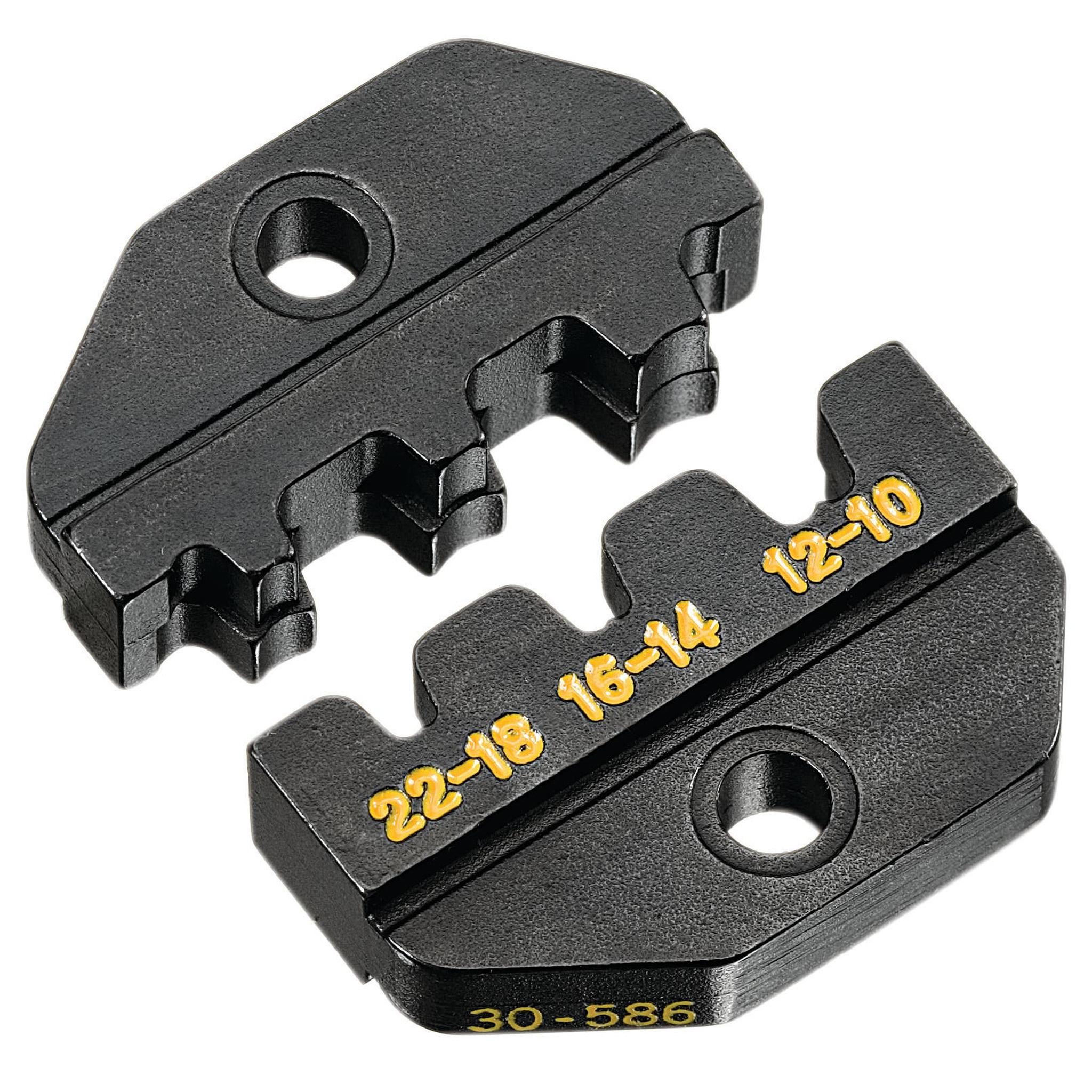

Ideal 30-586 Crimp Die, Open Barrel 22-12 AWG

The Ideal 30-586 is an interchangeable Crimpmaster die set for crimping 22-12 AWG non-insulated open barrel connectors. Compatible with the 30-506 Crimpmaster ratchet crimp tool frame, this die set is purpose-built for open barrel terminal crimping, a common task in automotive, aerospace harness work, and MRO wiring applications.

Key Features

• Die set for 22-12 AWG non-insulated open barrel connectors
• Interchangeable with the 30-506 Crimpmaster frame, changes in seconds with a screwdriver
• Precision-ground die surfaces deliver reliable, consistent crimps
• Open barrel die geometry designed for proper seating of non-insulated terminal ears
• General-purpose die set; not intended for applications requiring calibrated tools

Specifications

• Wire Range: 22-12 AWG
• Connector Type: Non-Insulated Open Barrel
• Compatible Tool Frame: Ideal 30-506 Crimpmaster
• Calibration Required: No
• Warranty: Limited 1 Year

Applications

Suitable for avionics harness work, automotive electrical repairs, and industrial MRO wiring where open barrel non-insulated connectors are specified. The 22-12 AWG range covers a broad span of wire sizes commonly used in both aircraft electrical systems and ground support equipment.

Ideal 30-586 Calibration

PJi operates an ISO/IEC 17025 Accredited Calibration Lab and provides NIST-traceable calibration for the Ideal 30-586 at the time of purchase — add calibration to your order at checkout. Our calibration documentation satisfies FAA Part 145 tool control requirements, ISO 9001 quality system records, and AS9100 calibration traceability requirements. For repair stations and quality-certified facilities that require documented traceability, PJi is the one-stop source: the tool and the calibration certificate in a single transaction. Calibration-only companies cannot sell you the tool. Major retailers cannot calibrate it. PJi does both.
