Ideal 30-593 Crimp Die, BNC TNC Mini UHF Connectors

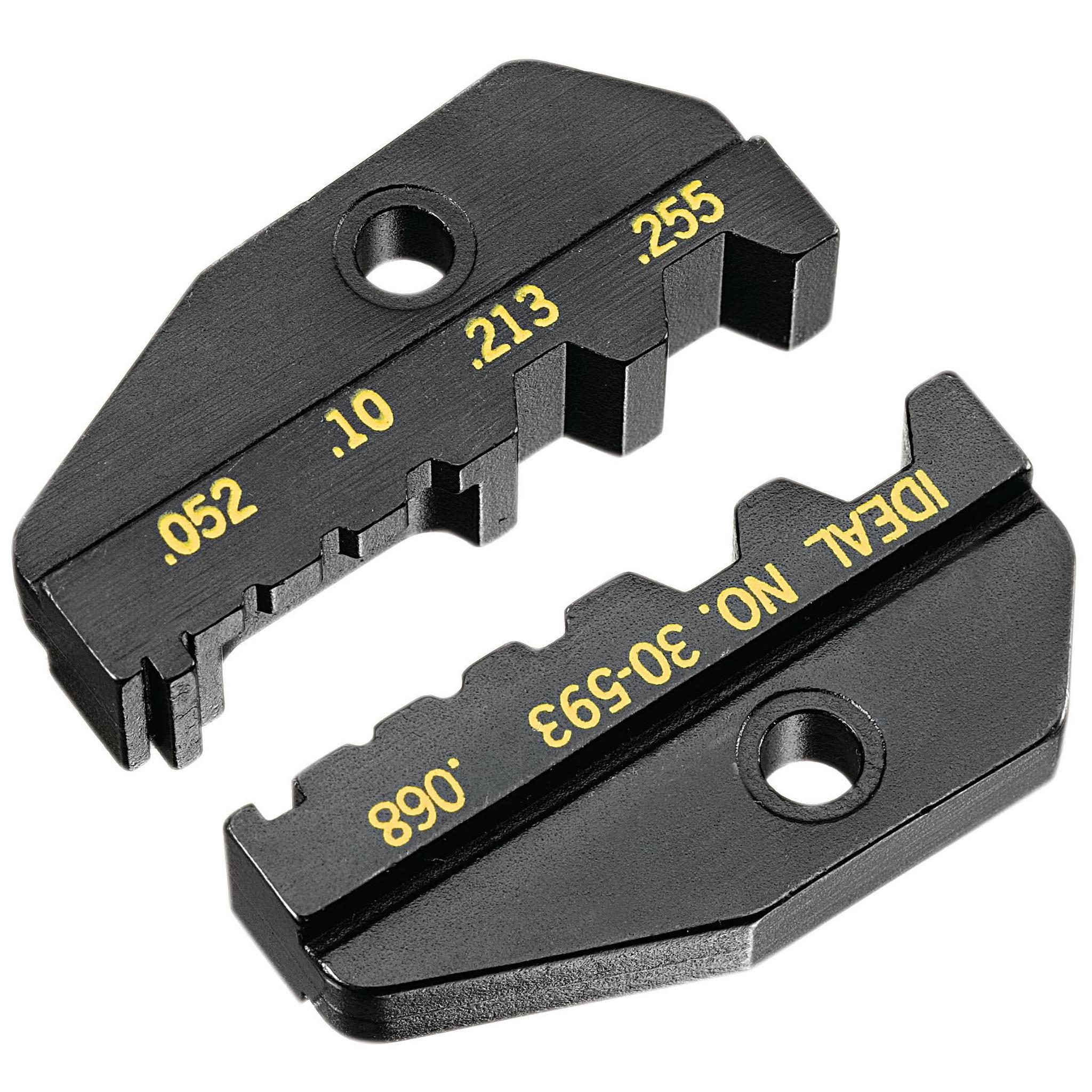

The Ideal 30-593 is a 5-cavity interchangeable Crimpmaster die set for Mini UHF, BNC, and TNC coaxial connectors on miniature coaxial cables. Used with the 30-506 Crimpmaster ratchet crimp tool frame, this die set covers the small-diameter connector types found extensively in avionics, transponders, ADS-B receivers, GPS units, and RF test equipment.

Key Features

• 5-cavity hex die set for Mini UHF, BNC, and TNC connectors on mini coax cables
• Hex die cavity sizes: 0.052 in. (1.32 mm), 0.068 in. (1.73 mm), 0.100 in. (2.54 mm), 0.213 in. (5.41 mm), 0.255 in. (6.48 mm)
• Interchangeable with the 30-506 Crimpmaster frame, changes with a flat or Phillips screwdriver
• Five cavities cover a wide range of miniature coaxial connector ferrule and shell sizes
• Precision-ground die surfaces deliver consistent, reliable RF coaxial crimps
• General-purpose die set; not intended for applications requiring calibrated tools

Specifications

• Connector Types: Mini UHF, BNC, TNC
• Number of Cavities: 5
• Hex Cavity 1: 0.052 in. (1.32 mm)
• Hex Cavity 2: 0.068 in. (1.73 mm)
• Hex Cavity 3: 0.100 in. (2.54 mm)
• Hex Cavity 4: 0.213 in. (5.41 mm)
• Hex Cavity 5: 0.255 in. (6.48 mm)
• Max Center Conductor: 0.040 in.
• Max Jacket Diameter: 0.305 in.
• Compatible Tool Frame: Ideal 30-506 Crimpmaster
• Warranty: Limited 1 Year

Applications

The 30-593 is an essential die set for avionics technicians terminating BNC and TNC connectors on transponder, ADS-B, DME, and radar altimeter antenna cables. Mini UHF connectors appear frequently on cellular and RF test equipment. The 5-cavity design consolidates multiple small coaxial connector formats into a single interchangeable die, making it one of the most versatile RF crimp dies in the Crimpmaster ecosystem.

Ideal 30-593 Calibration

PJi operates an ISO/IEC 17025 Accredited Calibration Lab and provides NIST-traceable calibration for the Ideal 30-593 at the time of purchase — add calibration to your order at checkout. Our calibration documentation satisfies FAA Part 145 tool control requirements, ISO 9001 quality system records, and AS9100 calibration traceability requirements. For repair stations and quality-certified facilities that require documented traceability, PJi is the one-stop source: the tool and the calibration certificate in a single transaction. Calibration-only companies cannot sell you the tool. Major retailers cannot calibrate it. PJi does both.
