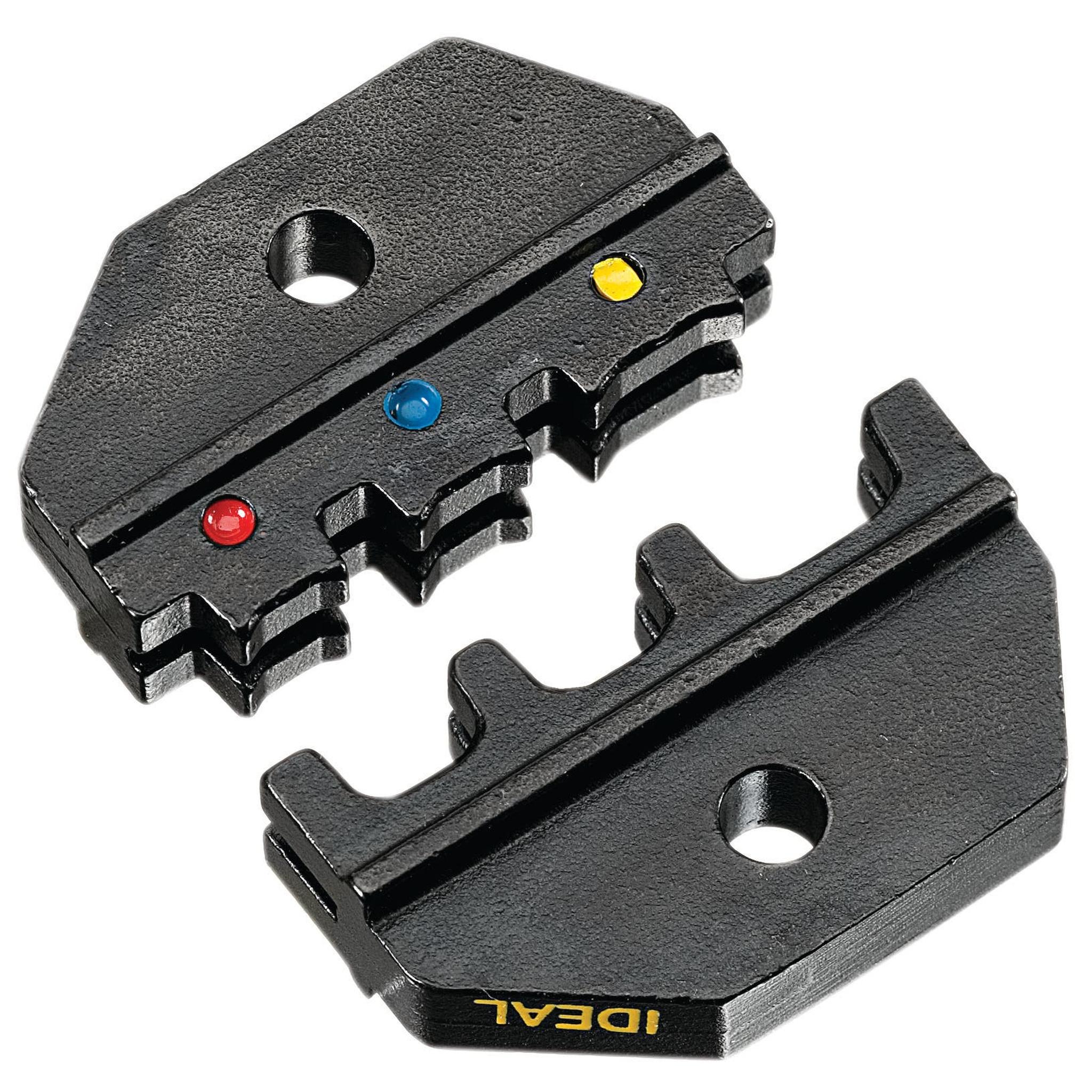

Ideal 30-594 Crimp Die, Insulated Slide-On 22-10 AWG

The Ideal 30-594 is an interchangeable Crimpmaster die set for 22-10 AWG fully insulated slide-on (push-on) connectors. Designed for use with the 30-506 Crimpmaster ratchet crimp tool frame, this die set handles the quick-disconnect style terminals widely used in control panels, automotive systems, and equipment wiring.

Key Features

• Die set for 22-10 AWG fully insulated slide-on (push-on) connectors
• Interchangeable with the 30-506 Crimpmaster frame, swaps with a flat or Phillips screwdriver
• Precision-ground die surfaces ensure consistent crimps on fully insulated push-on terminal bodies
• General-purpose die set; not intended for applications requiring calibrated tools

Specifications

• Wire Range: 22-10 AWG
• Connector Type: Fully Insulated Slide-On (Push-On)
• Compatible Tool Frame: Ideal 30-506 Crimpmaster
• Calibration Required: No
• Warranty: Limited 1 Year

Applications

Used in equipment wiring, MRO panel work, and any application calling for fully insulated push-on connector crimping across 22-10 AWG wire. The ratcheting action of the Crimpmaster frame ensures each slide-on terminal receives a complete crimp cycle before the tool releases.

Ideal 30-594 Calibration

PJi operates an ISO/IEC 17025 Accredited Calibration Lab and provides NIST-traceable calibration for the Ideal 30-594 at the time of purchase — add calibration to your order at checkout. Our calibration documentation satisfies FAA Part 145 tool control requirements, ISO 9001 quality system records, and AS9100 calibration traceability requirements. For repair stations and quality-certified facilities that require documented traceability, PJi is the one-stop source: the tool and the calibration certificate in a single transaction. Calibration-only companies cannot sell you the tool. Major retailers cannot calibrate it. PJi does both.
