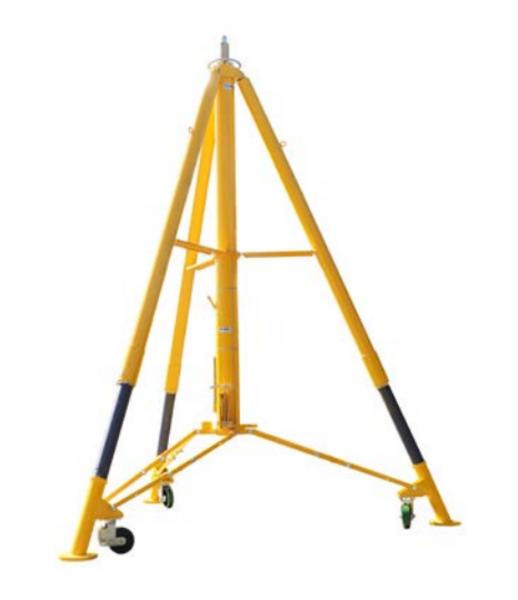

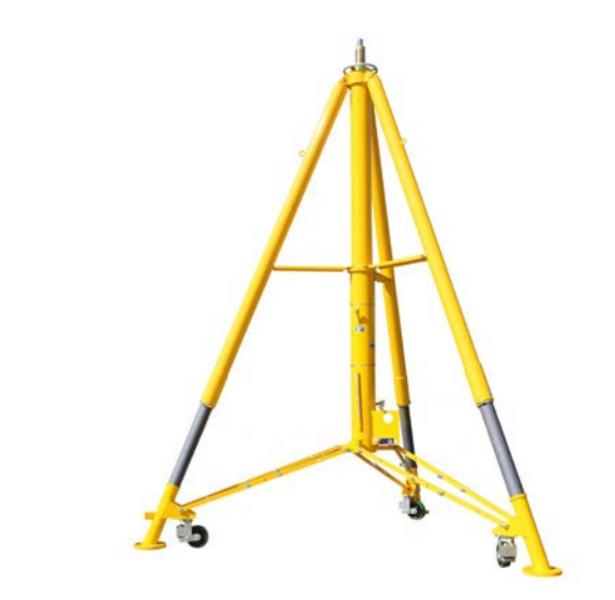

The Malabar 761 is a 60-ton tripod jack for commercial aircraft for Boeing & Airbus aircraft.
It is a single-stage hydraulic jack designed primarily for use in aircraft maintenance. It consists of a tripod structure, hydraulic cylinder assembly, reservoir, valve block assembly, hand pump assembly, tow handle, and swivel casters.
The jack leg pads are raised off the ground. The casters will retract, and the pads rest on the ground when a load is applied to the jack.
Standard Features
- Manual hand pump with high, medium and low-pressure operating positions
- Heavy-duty tow handle and swivel casters with swivel locks for improved towing
- Hydraulic “Thermal” relief valve for added protection and safety in the event of internal fluid expansion due to temperature
- Secondary cylinder seal for protection against contaminants and to prolong the life of the primary seal
- Rain hat (covers jack upper head)
- Hard chrome plated cylinder bore
- All unpainted parts are plated to resist corrosion
- Skydrol-resistant paint (safety yellow)
- Factory-proof load @ 150% of rated capacity
Specifications
- Rated Capacity: 60 tons (54.5 m. tons)
- Side Load: 15% of vertical load
- Roll Under Height: add 1.5 inches (38 mm) to low heights
- Low Height: 186.1 inches (4727 mm)
- Low Height with Legs Extended: 221.6 inches (5629 mm)
- Hydraulic Lift: 72 inches (1829 mm)
- Extension Screw: 24 inches (610 mm)
- Total Extended Height: 282.1 inches (7165 mm)
- Total Extended Height with Legs Extended: 317.6 inches (8067 mm)
- Oil Pressure at Rated Capacity: 2430 psig (171 kg/sq cm)
- Safety Pop-off Valves: System Relief Valve set at: 66 tons (59.9 m. tons)
- Thermal Relief Valve set at: 75 tons (68.0 m. tons)
- Proof Load: 90 tons (81.6 m. tons)
- Reservoir Capacity: 20.6 gallons (78 liters)
- Hydraulic Fluid: MIL-PRF-5606 or equivalent
- Maximum Towing Speed: 5 mph (8 km/h)
- Approximate Jack Net Weight: 4400 lbs (1996 kg)
Optional Features
- Air-operated hydraulic pump
- Load gauge for load indication (reads tons/psig)
- Adjustable swivel feet with level for leveling jack
- Hydraulic-operated casters provide ease in jack leveling and increased ground clearance for towing
- Platform-mounted operating controls allow one person to position the locknut while controlling lifting and lowering operations
- Ladder/Platform
- Export crating
- Customer-specified paint color
Aircraft Applications
- Standard 761
- A330*, A340*, A350*, B747SP, B777**, B787***
- 761 with Legs Extended
- B747
- Notes:
- *Use 3/4" Female Spherical Radius Ship Adapter for this application
- **Use 1 1/4" Male Spherical Radius Ship Adapter for this application
- ***For roll-under clearance, oleos may have to be extended
| Alternate Models | |
|---|---|
| 76100-5 | Options Included: AP - AIR PUMP GA - GAUGE AF - ADJUSTABLE FOOT LA - LADDER |
| General Information | |
|---|---|
| Part # | 761 |
| Manufacturer | Malabar |
