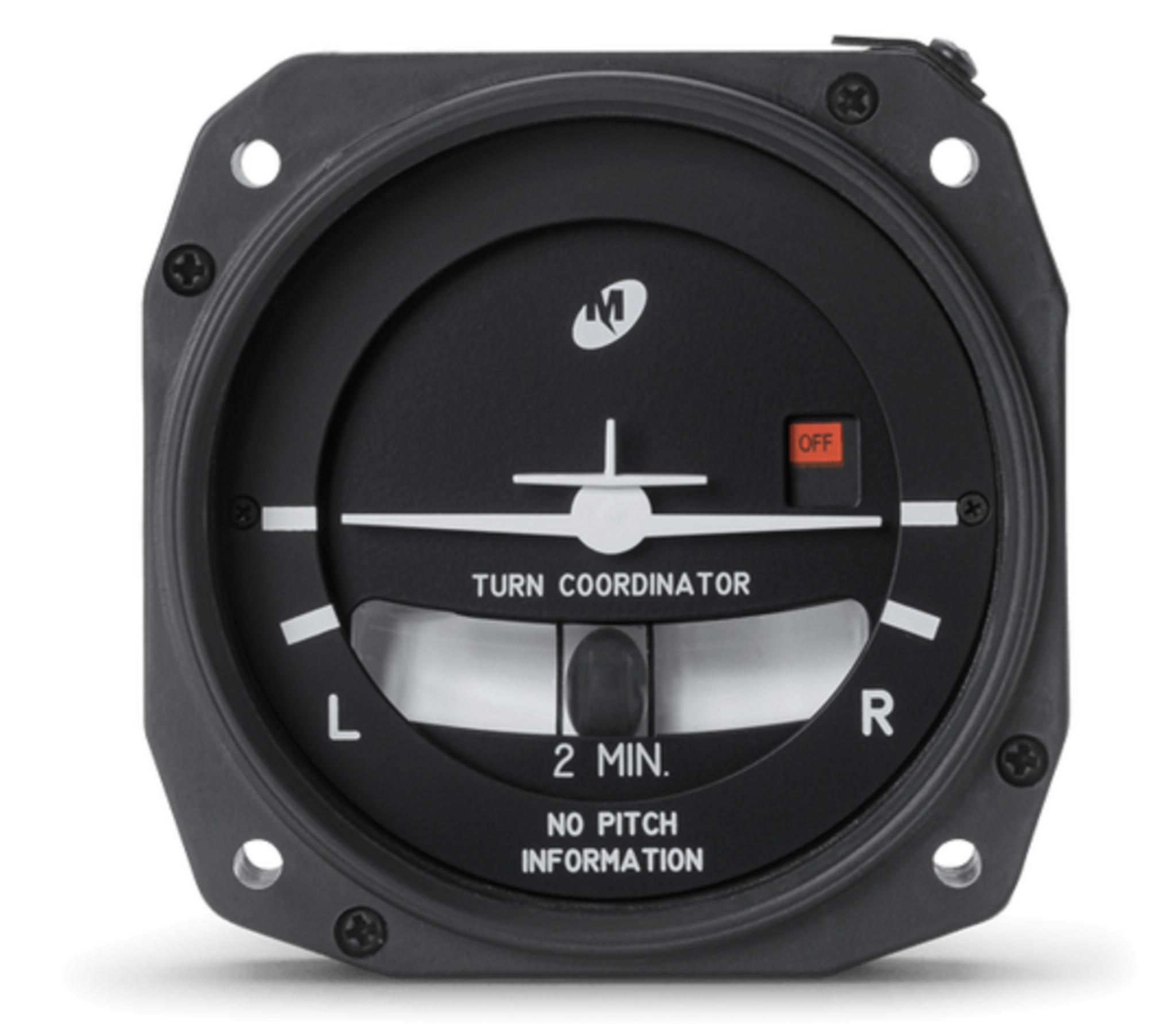

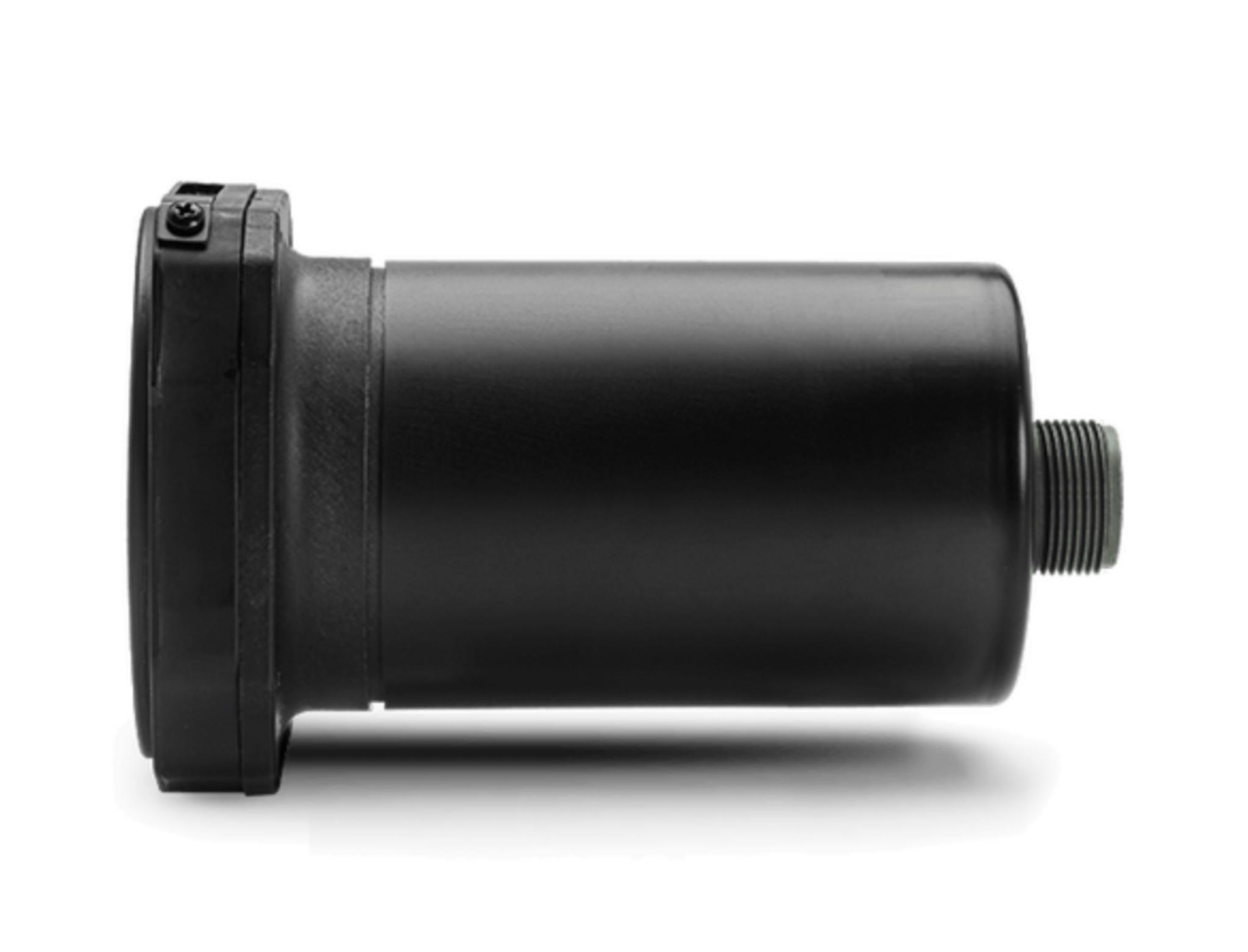

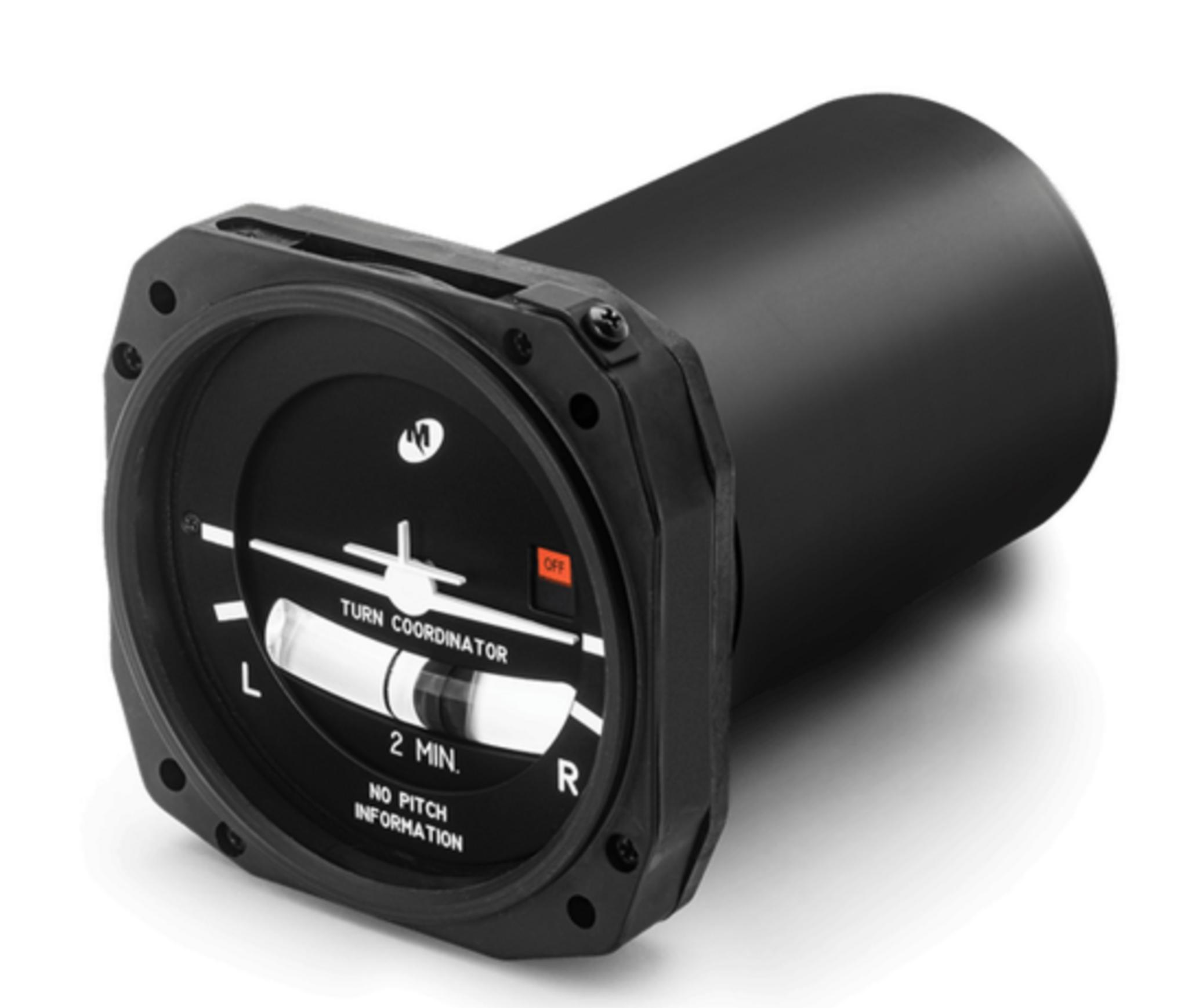

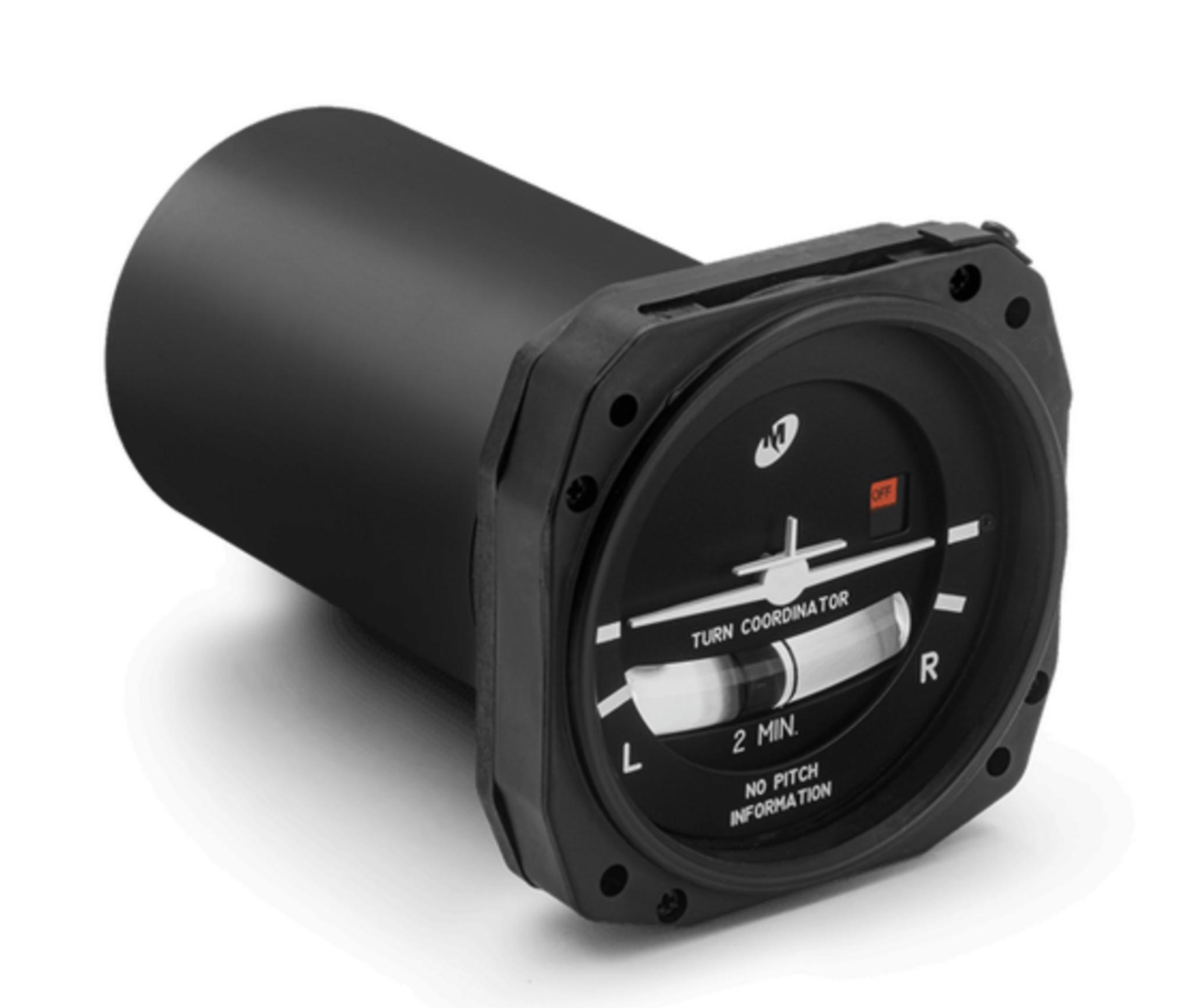

Mid-Continent Instrument & Avionics 1394T101-3B - Turn Coordinator Lighted
Need a Quote?
The Mid-Continent Instruments and Avionics 1394T101-3B is a brushless, lighted turn coordinator engineered for long service life and dependable performance in certified general aviation aircraft. Powered by a wide-range 11–32 VDC input, this instrument serves both 14V and 28V aircraft electrical systems without modification — making it a go-to replacement for A&P mechanics, avionics shops, and MRO facilities maintaining piston singles, piston twins, and light turboprops.
Key Features
- Brushless AC rotor with solid-state inverter — eliminates motor wear, reduces heat behind the panel
- 4,500-hour MTBF for exceptional long-term reliability
- Standard 2-minute turn indication per FAA standards
- Lighted bezel for day and night operations
- White inclinometer background with black ball — high-contrast slip/skid readability
- HEA anti-reflective coated glass minimizes cockpit glare
- 3 1/8" compact size fits standard round instrument panel cutout
- Front or rear panel mount configurations supported
- FAA TSO-C3e certified and RTCA DO-160G environmental qualification
- Made in the USA — Wichita, Kansas
Specifications
- Input Voltage: 11–32 VDC
- Connector: 3-Pin (MS3106A10SL-3S compatible)
- Starting Current: 0.80A max
- Running Current: 0.35A max
- MTBF: 4,500 hours
- Inclinometer: White background, black ball
- Operating Altitude: 1,000 ft. to 35,000 ft.
- Maximum Weight: 1.4 lbs.
- Certification: FAA TSO-C3e / RTCA DO-160G
Applications and Use Cases
The 1394T101-3B is the current production replacement for the 1394T100-3B series and is a direct-fit upgrade for aircraft panels requiring a lighted, brushless turn coordinator with a 3-pin connector. It is well-suited for panel refurbishments, avionics shop stock, and line maintenance replacement at FBOs, MRO facilities, and flight schools operating type-certificated piston aircraft. An optional FAA Form 8130-3 airworthiness approval tag is available at time of order for operators requiring full documentation traceability.
| General Information | |
|---|---|
| Part # | 1394T101-3B |
| Manufacturer | Mid-Continent Instrument & Avionics |
| Specifications | |
|---|---|
| Bezel | Lighted |
| Certification | FAA TSO-C3e, RTCA DO-160G |
| Connector | 3-Pin |
| Country of Origin | USA |
| Glass | HEA Anti-Reflective Coated |
| Inclinometer | White background, Black ball |
| Indication | Standard 2-minute turn |
| Input Voltage | 11–32 VDC |
| Instrument Type | Turn Coordinator |
| Manufacturer | Mid-Continent Instruments and Avionics |
| Maximum Weight | 1.4 lbs. |
| Mount | Front or Rear panel |
| MTBF | 4,500 hours |
| Operating Altitude | 1,000 ft. to 35,000 ft. |
| Panel Cutout | 3 1/8" |
| Part Number | 1394T101-3B |
| Running Current | 0.35A max |
| Starting Current | 0.80A max |
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* |
|---|
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
The Mid-Continent 1394T101-3B operates on 11–32 VDC, making it compatible with both 14V and 28V aircraft electrical systems without modification.
Yes. The 1394T101-3B is FAA TSO-C3e certified and qualified to RTCA DO-160G environmental standards, making it approved for installation in type-certificated general aviation aircraft.
The primary difference is the bezel lighting. The 1394T101-3B includes an illuminated lighted bezel for night operations; the 1394T101-7B is the non-lighted variant. Both share the same brushless motor, 3-pin connector, and 11–32 VDC input range.
It uses a 3-pin connector. The compatible mating connector is the MS3106A10SL-3S, which is available separately.
