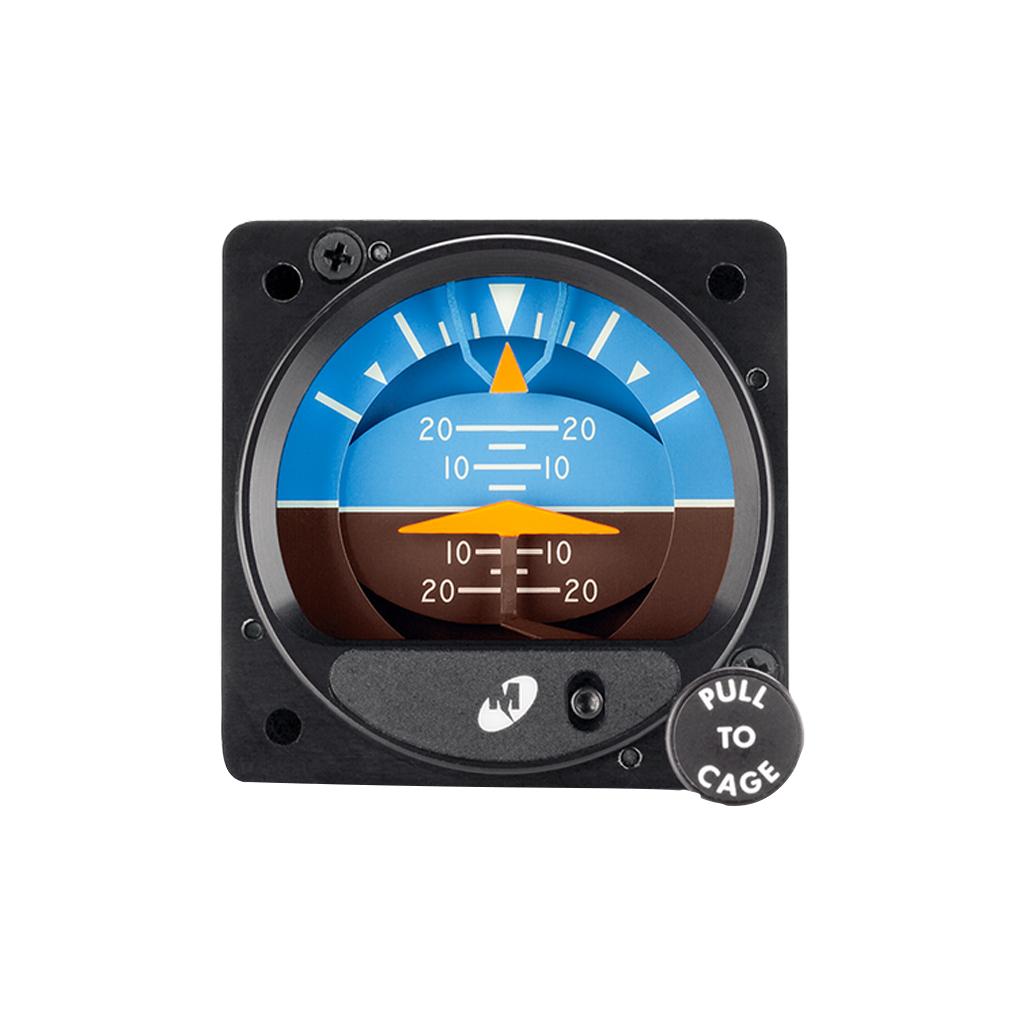

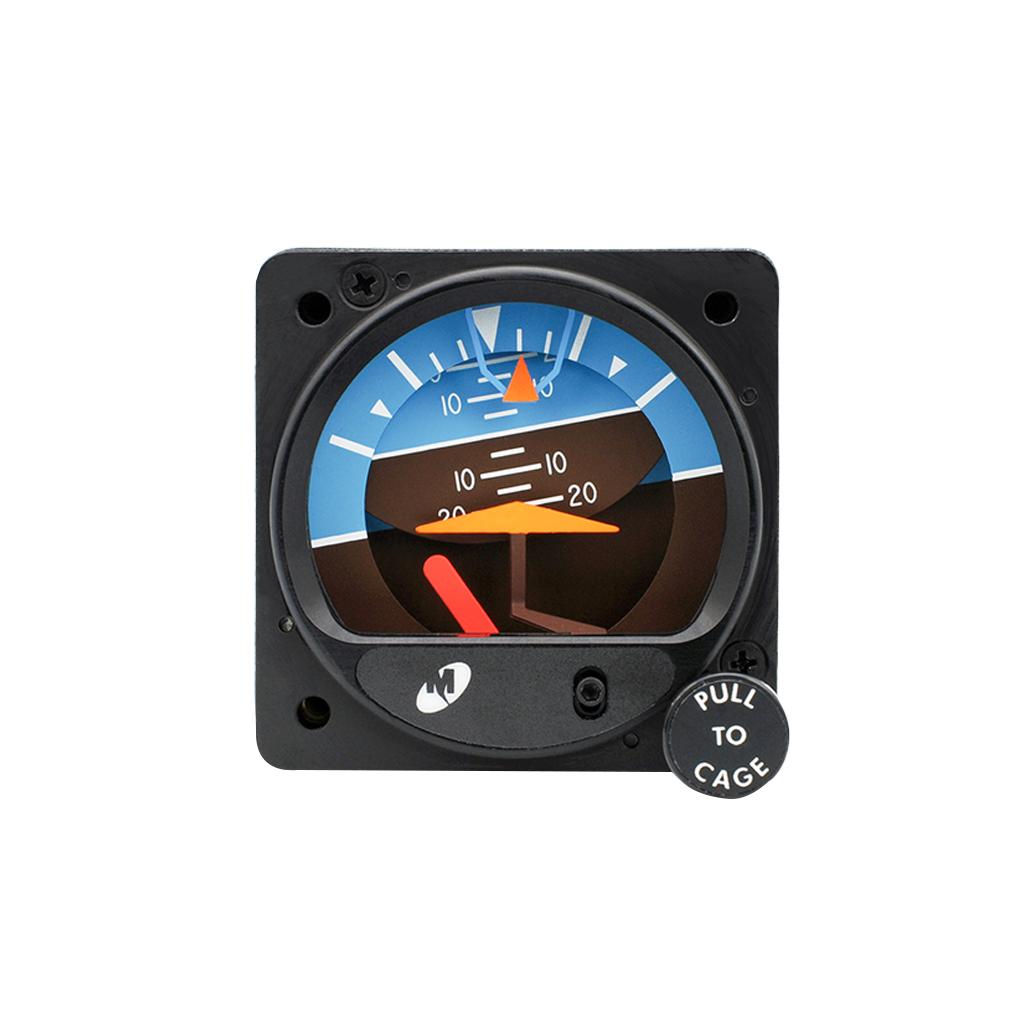

MCI 4200-11 - Model 4200 - Attitude Indicator 2", Electric, Delta symbolic aircraft
| General Information | |
|---|---|
| Part # | 4200-11 |
| Manufacturer | Mid-Continent Instrument & Avionics |
| Specifications | |
|---|---|
| Certification | FAA TSO-C4c, RTCA DO-160D/E |
| Dial | Rotating roll dial configuration, blue over brown, Delta wing symbolic airplane |
| Glass | Special HEA anti-reflective coating |
| Length | 5.94 inches |
| Lighting | Internal LED lighting switchable to 5, 14 or 28 VDC input, Wired through main connector |
| Mating Connector | Mid-Continent P/N 9015514 (MS3116F8-4S) |
| Mounting | Rear mount in standard 2" MS33638 panel cutout |
| MTBF | 2,500 Hours |
| Panel Tilt | Aircraft specific — calibrated at factory, Specify exact tilt between 0° and 20° when ordering |
| Power Input | 10–32 VDC: 14 VDC input (1.4A max start, 0.51A running), 28 VDC input (0.6A max start, 0.25A running) |
| Temperature Range | –30°C to +70°C (–22°F to +158°F) |
| Weight | 1.6 lbs |
