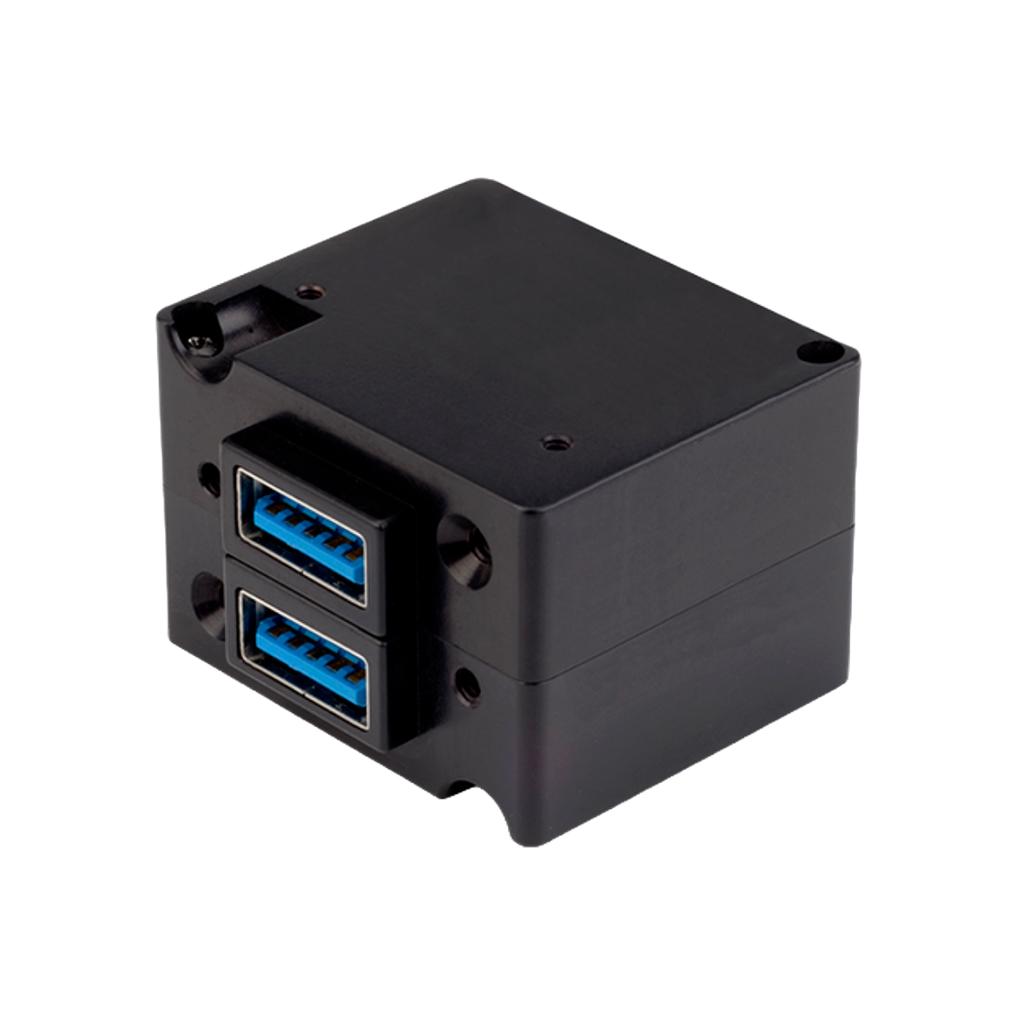

MCI 6430202-6 - TA202 High Power USB Charging Port
Available for Order
Lead Time: Chat now or request quote
$423.00 /ea.
Qty
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
Key Benefits
• Simultaneously provides 3 amps of power per charging port to USB-A electronic devices
• 10 – 32 VDC input voltage
• 5 VDC ± 0.25 output voltage per port
• Dual USB-A connectors
• Short circuit, power surges, overload and over temperature protection
• In-seat, cabin, cockpit and galley applications
• Designed and built in Wichita, Kansas, USA
• Limited lifetime warranty
| General Information | |
|---|---|
| Part # | 6430202-6 |
| Manufacturer | Mid-Continent Instrument & Avionics |
| Shipping Information | |
|---|---|
| Schedule B | 8504409540 |
| ECCN | 9A991.d |
| Specifications | |
|---|---|
| Adapter Plates | 9017947 |
| Case | Anodized aluminum, black |
| Certification | FAA TSO C71, EASA ETSO C71, CAAC CTSO C71, RTCA DO-160G |
| Dimensions | 1.5” W x 1.03” H x 1.25” D |
| Dust Covers | 9019313-1, 9019313-2 |
| Faceplates | 9017897, 9017958, 9019384-4 |
| Input Power | 18 W per port (maximum) |
| Input Voltage | 10 – 32 VDC |
| Installation | In-seat, cabin, cockpit, galley |
| Mating Connector Kit | MCI P/N 9017960 (included) |
| Mounting | Front or rear, faceplates and adapter plates (optional) |
| Output Current | 3.0 amps per port |
| Output Voltage | 5 VDC ± 0.25 per port |
| Power Input | Bottom |
| USB Connector | Dual USB-A |
| Weight | 1.3 ounces (38 grams) |
