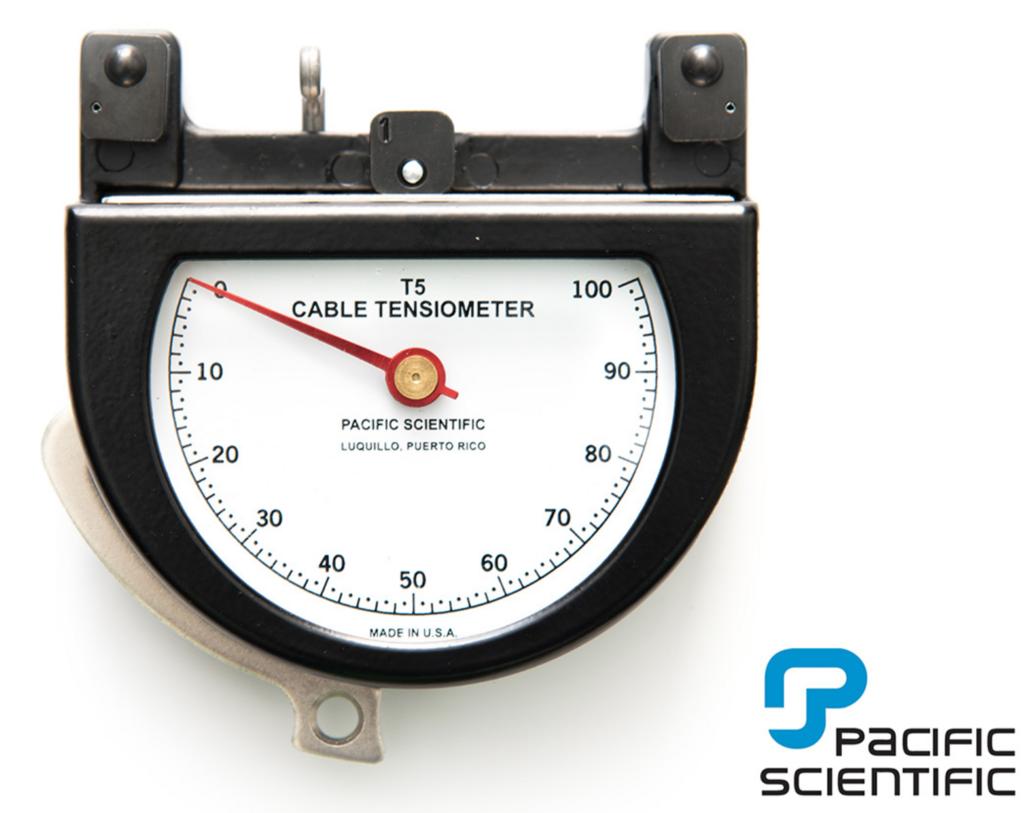

Pacific Scientific T5-2002-105-00 Cable Tensiometer

The Pacific Scientific T5-2002-105-00 is the highest-range model in the T5-2002 sub-series — the instrument maintenance programs turn to when primary flight control cable tensions push beyond the 300 lb ceiling of every other T5-2002 model. With a mid and high range of 30–400 lbs on cable sizes from 5/32" through 1/4", and a low range of 30–200 lbs on 1/16", 3/32", and 1/8" cables, the T5-2002-105-00 delivers the broadest tension ceiling in the sub-series while maintaining full compatibility with all seven standard aircraft cable diameters from 1/16" to 1/4". Carrying the U.S.A.F. C5 designation and calibration card T594-105, it is qualified for military aviation maintenance programs and carries the same factory-calibrated, zero-temperature-error precision that defines the entire T5-2000 platform.

When 300 lbs Isn't Enough

Most T5-2002 models top out at 300 lbs — sufficient for the majority of general aviation and turboprop primary control cable systems. But some aircraft, particularly larger turboprops, light business jets, rotary-wing platforms, and certain military airframes, specify primary control cable tensions at or above 300 lbs on 3/16" to 1/4" cables. The T5-2002-105-00 is the model built for exactly that scenario. Its 30–400 lb range on the mid and high cable size groups extends 100 lbs beyond any other T5-2002 instrument, giving maintenance professionals the coverage they need without requiring a completely different tensiometer platform or sacrificing coverage of the smaller cable sizes on the same airframe. Each unit ships factory-calibrated with its own individual calibration chart (T594-105) that maps dial readings to actual tension in pounds for all three ranges and all seven cable sizes — a direct lookup with no secondary calculations required. Zero temperature error means the instrument performs identically in a cold maintenance hangar or on a hot flight line, with no preliminary adjustments between sessions.

The Highest T5-2002 Ceiling. All Seven Cable Sizes.

• 30–400 lb upper range — highest tension ceiling in the T5-2002 sub-series, covering 5/32", 3/16", 7/32", and 1/4" cables
• All seven standard cable sizes — 1/16", 3/32", 1/8", 5/32", 3/16", 7/32", and 1/4" on one instrument
• Individual factory calibration chart (T594-105) — direct dial-to-pounds conversion for all ranges and cable sizes
• U.S.A.F. C5 designation — qualified for military aviation maintenance programs
• Zero temperature error — calibration-stable from -53°C to 71°C, no adjustment required
• Riser #3A compatibility — may be used in lieu of riser #3 for coated cable applications
• Pointer lock brake lever — retains dial reading before removal in confined or low-visibility areas
• One-handed operation — complete a full cable tension check in seconds
• No batteries or electronics — fully mechanical, always ready

Technical Specifications

• Tension Range (Low): 30 – 200 lbs
• Tension Range (Mid): 30 – 400 lbs
• Tension Range (High): 30 – 400 lbs
• Cable Sizes (Low Range): 1/16", 3/32", 1/8"
• Cable Sizes (Mid Range): 5/32", 3/16"
• Cable Sizes (High Range): 7/32", 1/4"
• Indicator: Black dial indicating
• Calibration Card: T594-105 (individual unit chart included)
• USAF Designation: C5
• Temperature Stability: Zero temperature error; operates from -53°C to 71°C
• Pointer Lock: Yes — brake lever rod
• Risers Included: #1, #2C, #3 (Riser #3A may be used in lieu of Riser #3)
• Origin: Made in the USA
• Warranty: 1 year on new units

Typical Applications

• High-tension primary flight control cable rigging on large turboprops and light business jets
• Rotary-wing and helicopter primary control cable tension verification above 300 lbs
• Military aircraft flight control maintenance (U.S.A.F. C5 qualified)
• Multi-aircraft MRO facilities needing 400 lb upper-range coverage without sacrificing small cable compatibility
• Post-repair and return-to-service cable tension verification on heavy primary control systems
• Coated cable applications where Riser #3A geometry is operationally preferred

Pacific Scientific T5-2002-105-00 Calibration

The T5-2002-105-00 should be recalibrated on a scheduled basis — annually at minimum, and immediately following any overload event, mechanical shock, or drop. Because this instrument operates at the highest tension range in the T5-2002 sub-series and is used on primary flight control cables where accuracy has direct airworthiness implications, maintaining calibration currency is non-negotiable. Pilot John International operates an ISO 17025-accredited calibration laboratory capable of recalibrating Pacific Scientific T5 series tensiometers to original manufacturer specifications, issuing a fully traceable calibration certificate upon completion. Whether your maintenance program operates under FAA oversight, a DOD contract, or an ISO 9001 quality management system, PJi's lab delivers the traceability and documentation your compliance requirements demand. Learn more about PJi's ISO 17025 Calibration Services →
