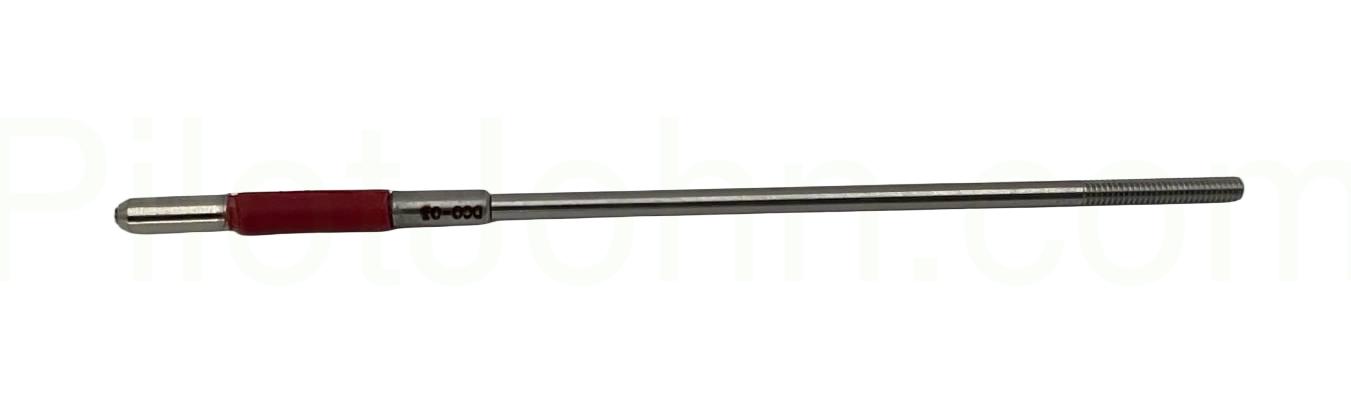

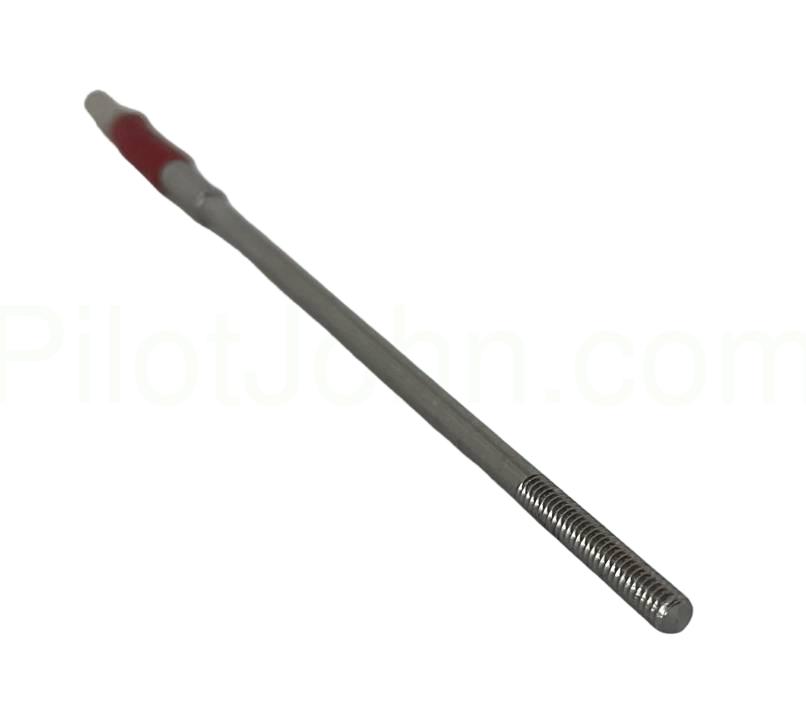

Permaswage D9759-13-03 Stem Sub Assembly

The Permaswage D9759-13-03 Stem Sub Assembly is a precision-machined tooling component designed for use in Permaswage aircraft fluid-fitting preparation and installation systems. This stem sub assembly plays a critical role in supporting accurate, repeatable tube preparation processes, which are essential for achieving permanent, leak-free Permaswage fitting installations in aerospace fluid systems.

Manufactured to strict aerospace quality standards, the D9759-13-03 stem sub assembly is engineered to provide consistent alignment, smooth operation, and long-term durability in demanding production and maintenance environments. As a replaceable tooling element, it helps maintain optimal performance of Permaswage tooling assemblies while minimizing downtime and ensuring dependable results across repeated applications.

Key Features & Benefits

• Precision-Machined Construction: Produced to exacting tolerances for consistent fit, alignment, and reliable operation within Permaswage tooling systems.
• Aerospace-Grade Quality: Designed to meet the performance expectations of aircraft manufacturing and maintenance operations.
• Tooling System Integration: Functions as a critical subcomponent within compatible Permaswage tool heads and preparation tools.
• Durable Design: Built to withstand frequent use in high-duty aviation environments.
• Serviceable Component: Allows for efficient replacement to extend tooling life and maintain installation accuracy.

Applications

The Permaswage D9759-13-03 Stem Sub Assembly is used by aerospace technicians and maintenance personnel during tube-end preparation and fitting installation for aircraft hydraulic, fuel, pneumatic, and environmental control systems. Its precision directly supports the integrity and reliability of Permaswage fitting installations.

Compatibility

This stem sub assembly is intended for use with specific Permaswage tooling configurations. Refer to the applicable Permaswage tooling manual or OEM documentation to confirm proper tool compatibility and application requirements.
