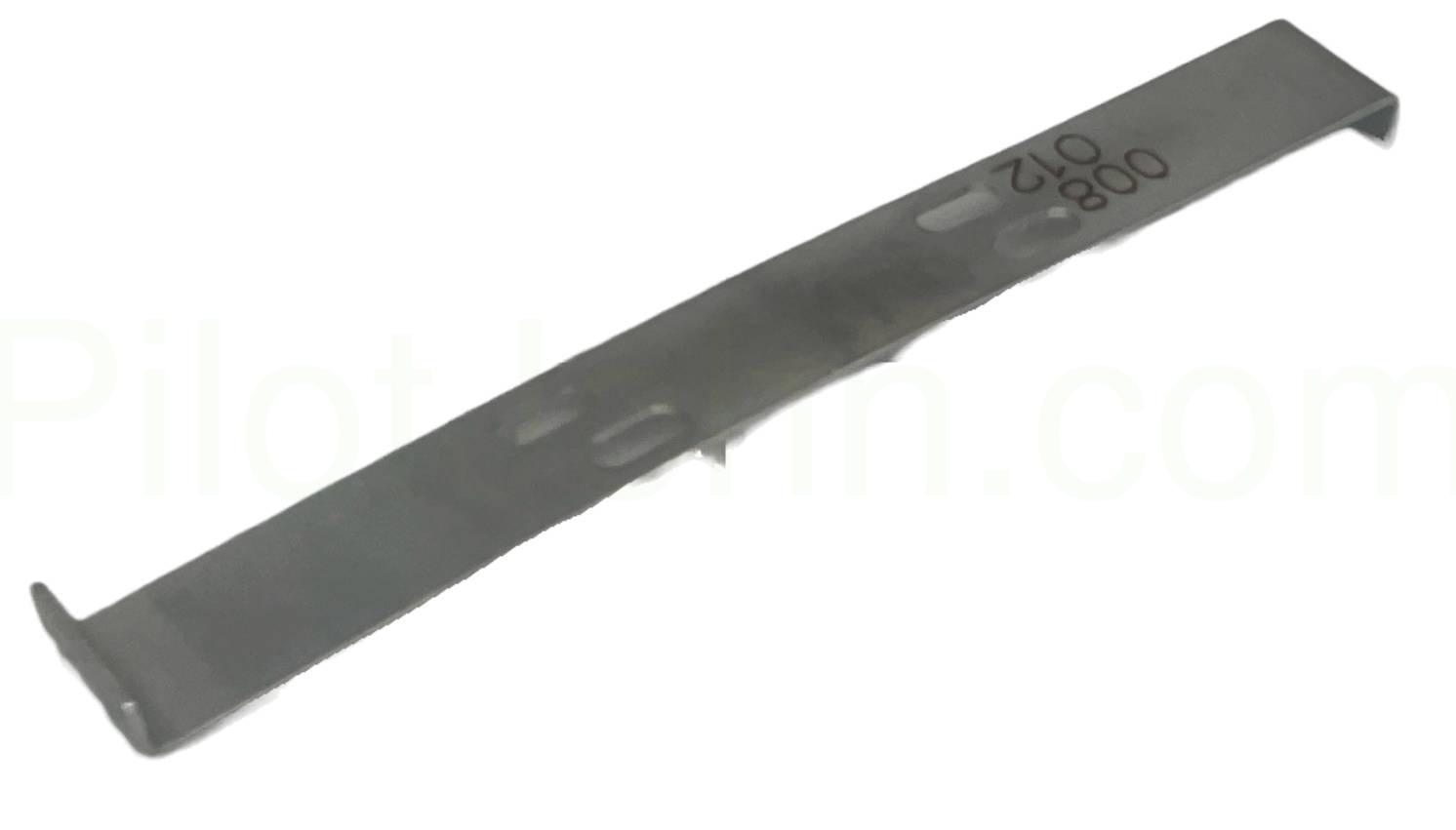

Permaswage DLT5302-031-01 Marking Tool for #8 to #12 Tubing
The Permaswage DLT5302-031-01 Marking Gauge is a precision stainless steel tool designed to accurately mark insertion depths on tubing sizes #8, #10, and #12 (1/2" to 3/4") for proper swage fitting alignment. Engineered for high accuracy, it provides defined marking ranges – 1.193" to 1.493" for 1/2" tubing and 1.303" to 1.603" for 3/4" tubing – ensuring correct fitting placement and secure, leak-free connections in critical aerospace fluid system applications.
| General Information | |
|---|---|
| Part # | DLT5302-031-01 |
| Manufacturer | Permaswage |
| NSN | 5120000064540 |
| Shipping Information | |
|---|---|
| Product Weight | 0.04 lbs. |
| Product Dimensions | 4.3 x 0.5 x 0.1 in. |
