Key Features:
• Accurate Temperature Measurement: Precisely measure temperatures from -40°F to +185°F (-40°C to +85°C) on pipes ranging from 1/4 to 1 1/2 inches.
• Smart Connectivity: Seamlessly integrates with smartphones and tablets with the Test Products International (TPI) View App for real-time data monitoring and analysis.
• Versatile Applications: Measure air conditioning, heating, and refrigeration system temperatures to identify performance issues.
• Data Management: Capture, analyze, and share temperature data with the Test Products International (TPI) View app for efficient troubleshooting and system optimization.
• Differential Temperature Measurement: Calculate temperature differences between components for accurate system evaluation.
• Data Logging: Record temperature data over time to identify trends and troubleshoot intermittent problems.

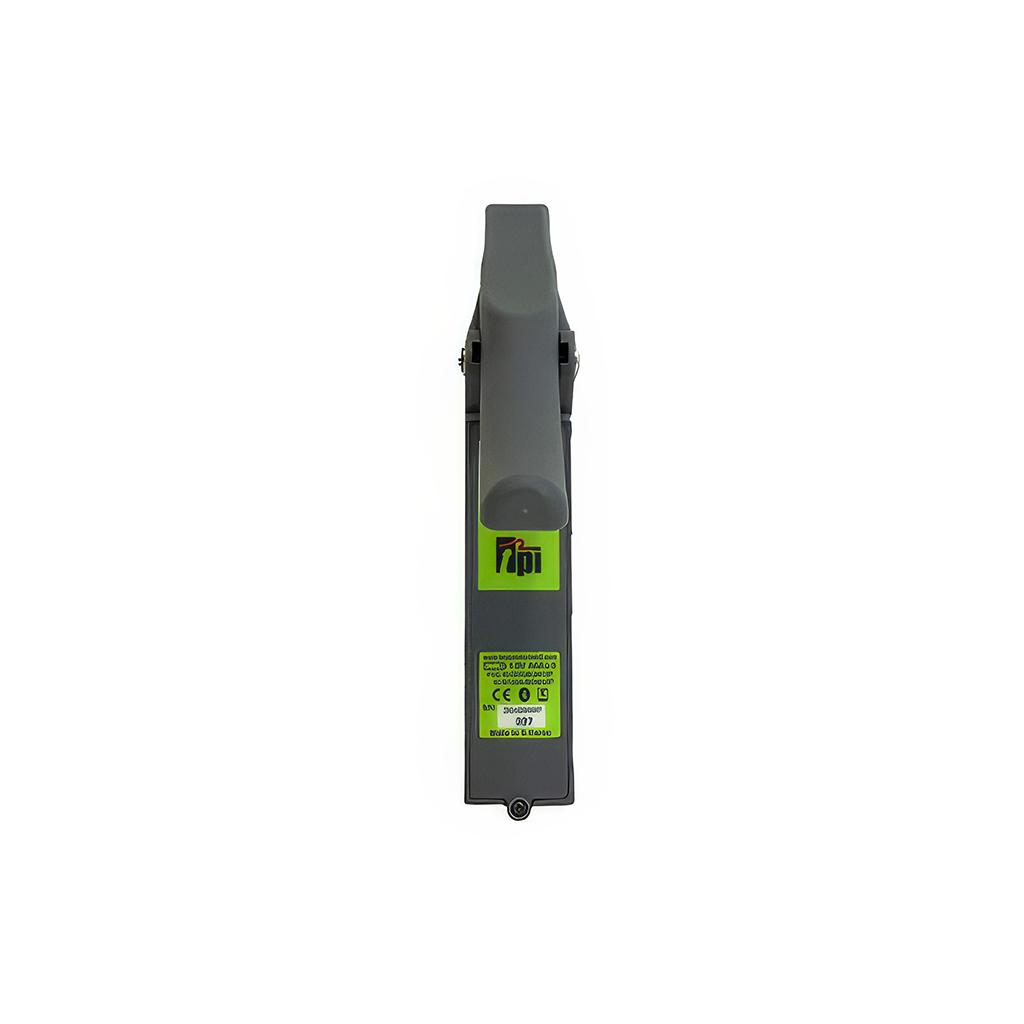

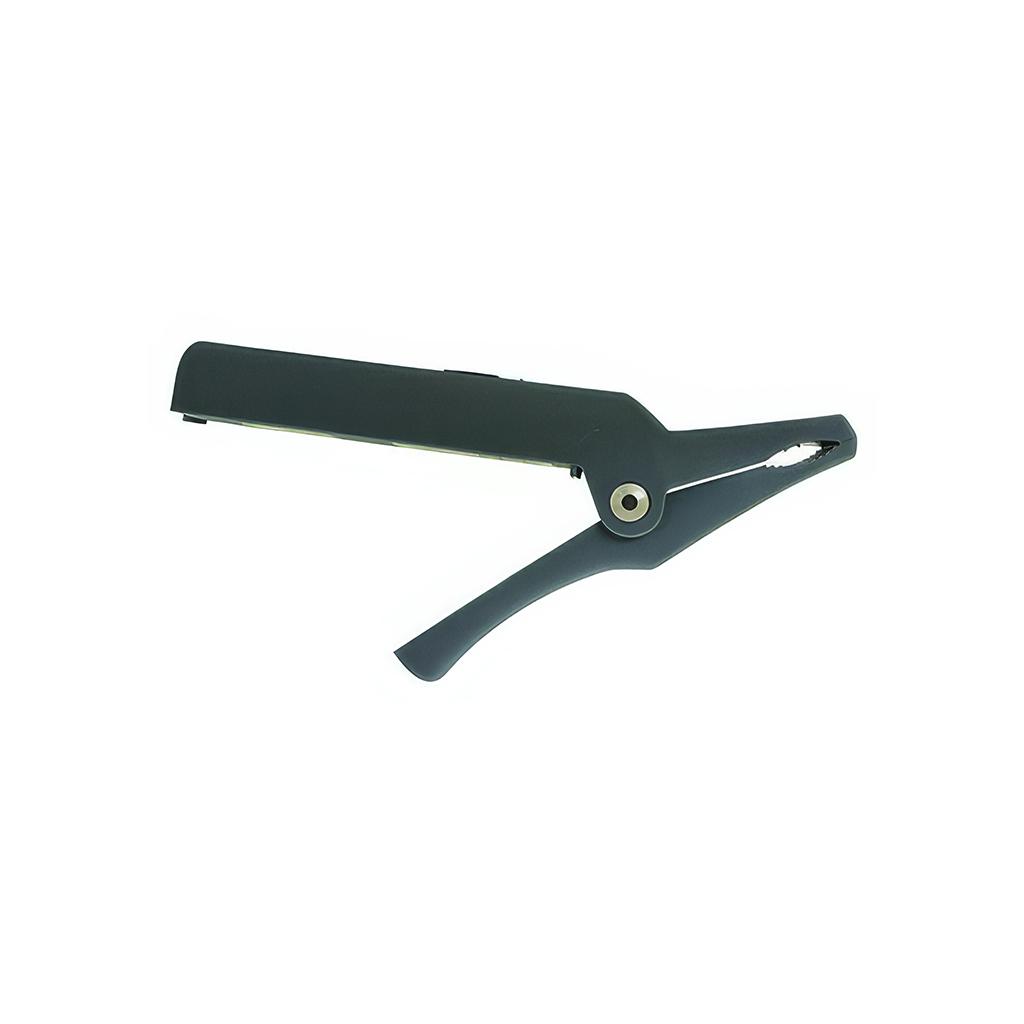

The Test Products International (TPI) SP323 Smart Temperature Clamp Probe empowers technicians to optimize aircraft environmental systems, enhance passenger comfort, and improve overall performance by providing comprehensive temperature data and analysis.
| General Information | |
|---|---|
| Part # | SP323 |
| Manufacturer | Test Products International |
| Shipping Information | |
|---|---|
| Product Weight | 0.35 lbs. |
| Product Dimensions | 10 x 8 x 6 in. |
| Schedule B | 9025198080 |
| Specifications | |
|---|---|
| Accuracy | 32⁰F to 185⁰F (0⁰C to 85⁰C) = +/- 0.9⁰F (+/- 0.5⁰C) <32⁰F (<0⁰C) = +/-1.8⁰F (+/-1.0⁰C) |
| Battery life | Approximately 170 hours |
| Battery type | AAA x 3 alkaline |
| Bluetooth | 5.0 (350 foot range depending on obstacles) |
| Clamp Pipe Size | 1/4 inch to 1 1/2 inch (6mm to 38mm) |
| Data Logging | 10,000 readings in 1 sec to 59 min 59 sec intervals |
| Humidity | 0 ~ 80 %RH |
| Operating temperature | -4 °F ~ 140 °F (-20 °C ~ 60 °C) |
| Resolution | 0.1⁰F / 0.1⁰C |
| Storage temperature | 0 °C ~ 50 °C ( 32 °F ~ 122 °F ) |
| Temperature Range | -40⁰F to 185⁰F (-40⁰C to 85⁰C) |
| Weight | 5.64oz (160g) |
