Tronair 02-2560-0111 – 25-Ton Aircraft Hydraulic Tripod Jack, 60" to 118"
Discontinued or No longer available
This item has been discontinued or is no longer available.
It has been replaced by Tronair 02-2560C0111
CofC and 8130 available at no cost
Worldwide shipping available

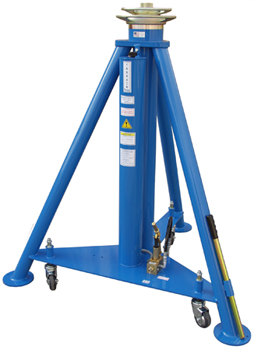

The Tronair 02-2560-0111 is a 25-ton hydraulic tripod jack used to lift aircraft for maintenance. This single-stage tripod jack extends from 60" to 118" in height.
Standard Features
- Sturdy steel construction for extended service life
- Single-speed, manually operated pump with built-in pressure relief valve
- Mechanical ram lock nut prevents lowering of the jack under a load
- Quick-action mechanical extension
- Threaded rams with improved handwheel-style safety nut
- Easy-access filler/breather cap
- Spring-loaded casters for easy maneuverability
- 3/4" (2 cm) spherical radius cup jack pad
- Durable powder-coat finish (Tronair Blue)
Specifications
- Rated Capacity: 50,000 lbs. (22,679 kg)
- Hydraulic Fluid: MIL-PRF-5606
- Closed Height: 60" (152 cm)
- Mechanical Extension: 16" (41 cm)
- Hydraulic Extension: 42" (107 cm)
- Fully Extended Height: 118" (300 cm)
- Weight: 590 lbs. (268 kg)
| Alternate Models | |
|---|---|
| 02-2560C0111 | New Part Number |
| 02A2560-0111 | Previous Model Number with Air Pump |
| 02A2560C0111 | New Part Number (CE) with Air Pump |
| General Information | |
|---|---|
| Part # | 02-2560-0111 |
| Manufacturer | Tronair |
| Shipping Information | |
|---|---|
| Freight NMFC | 186600 |
| Schedule B | 8425420000 |
| ECCN | EAR99 |
| Spare Parts | |
|---|---|
| G-1206 | Knurled Nut |
| H-2395 | Cover |
| HJ-557 | Large Jack Pad |
| K-1001 | Pump Seal Kit |
| K-1051 | Cylinder Seal Kit |
| K-1106 | Air Pump Manifold Kit |
| K-1276 | Weldment |
| K-1685 | Air Pump Seal Kit (Hydraulic) |
| K-1686 | Air Pump Seal Kit (Pneumatic) |
| K-2800 | Casters |
| K-3218 | Hand Wheel |
| K-3387 | Air Pump Kit |
| R-1150 | Center Extension |
| TR-1176 | Knurled Nut |
Customers also viewed
60" to 118.5", CE-Marked – Select BAe/Fokker Aircraft
8" to 19", CE-Marked
1 Gallon - Aircraft Leather Cleaner & Conditioner
Michelin AIR X – Airbus A330 & A340-200/300
24V Aircraft Lead-Acid Battery
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| BAe | 146-100, -200, -300/Avro RJ70, RJ85, RJ100 , RJ70 , RJ85 |
| Fokker | 28 , 70 |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
Question:
Can a hydraulic air pump be installed on this unit?
Answer:
Yes, the air pump kit that is compatible with this jack is K-1043-28-01.
Asked August 18, 2023
