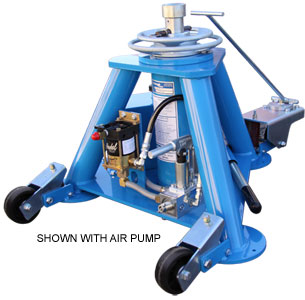

Jack, Tripod 10 Ton - Tronair 02-7809-0110

Tronair 02-7809-0110
Manufacturer: Tronair
Part Number: 02-7809-0110
NSN: 1730-01-563-7046
Condition: New
Item Not Available New

This item has been discontinued or is no longer available.

It has been replaced by 02-7809C0110.

Customers who viewed this item also viewed:
Jack, Tripod 10 Ton (Ce)
Jack, Tripod 12 Ton (Ce) - 46 to 92 inches
Jack, Tripod 10 Ton
5 Ton Axle Jack (CE) - 5.5 to 17 inches
Tripod 5 Ton Jack (Ce) - 84 to 116 inches
Jack, Tripod 10 Ton

Standard Features:
  • Hand Pump with built-in pressure relief valve
  • Threaded rams with improved hand wheel style safety nut
  • Quick rising center extension
  • Easy access filler/breather cap
  • Heavy duty wheels on all jacks where spring loaded casters are not standard
  • Hydraulic fluid: MIL-PRF-5606
  • 3/4 in (2 cm) spherical radius cup jack pad
  • Finish: Durable Powder Coat Tronair Blue
Specifications
Hydraulic Extension23 (58) in (cm)
Fully Extended47 (119) in (cm)
Closed Height20 (51) in (cm)
Mechanical Extension4 (10) in (cm)
Capacity10 tons
Weight250 (113) lb (kg)
Single (S) or Multi (M) StageM
Replacement PartsQuote?
K-2783Release Screw
K-1106Air Pump Manifold Kit
K-3236Hand Wheel
H-2395Cover
K-2023Weldment
HJ-557Large Jack Pad
K-1685Air Pump Seal Kit (Hydraulic)
K-1001Pump Seal Kit
K-1686Air Pump Seal Kit (Pneumatic)
K-4389Cylinder/Ram Replacement
K-3073Casters (Rear)
G-1318-1033Safety Pin
K-4156Casters (Front)
K-4557Medium Duty Springs (for jacks built before 2012)
K-3860Cylinder Seal Kit
R-1341-01Center Extension
TR-1994Ram Protection Ring
Replacement parts may vary depending on serial number. Please refer to the manual for your specific unit to find correct replacement parts or provide your serial number in the comments box when requesting a quote below and we will check for you.
Compatible Aircraft*
Airbus Military (CASA)C-295
Boeing234 Chinook, CH47, MH47 Chinook
CessnaCitation 560 XLS
Shorts330, 360
*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
Shipping Information
Pkg. 1 Weight320 lbs.
Pkg. 1 Dimensions35 in. x 46 in. x 30 in.
Freight Class70
Freight NMFC184990
Schedule B8425.42.0000
Servicing

We service the 02-7809-0110 and other items like it at our facility.

A few of the common services we offer for this item are:
• Load Test and Certification
• Seal Replacement
• Standard Repair / Maintenance
How does servicing work for this item?
We'll provide you with a custom-sized pallet for your item and send it to you via LTL freight. Once you receive the pallet, strap down your item to it and attach the pre-paid shipping label. After you let us know when it's ready to go, we'll schedule the pickup from your facility. The entire process takes only a few days and makes servicing your item less expensive since we can do it directly at our facility. When we've completed the servicing, we'll ship your item back to you via LTL freight. How often should jacks be load tested?
(Statement from Tronair) Tronair recommends functional load testing of hydraulic jacks on an annual (12-month) preventative maintenance cycle. Tronair also recommends load testing any time the jack seals have been replaced.

To request service for load testing a tripod jack, please contact us at the form below or visit us at the following link to request service - Aircraft Jack Load Test.
What seal kits can we replace?
We have the capability to replace the cylinder and hand pump seals on tripod jacks. Along with replacing the seals, we will provide load test certification as recommended by the manufacturer. To help with making the seal kit replacement process simple, we will help with shipping the jacks to and from our facility.
Parts

As an authorized Tronair Distributor, we sell factory OEM parts for the 02-7809-0110. Not sure exactly what part you need? Just describe it or send us a photo and we will research it for you if needed.

A few of the common parts we offer for this item are:
• Cylinder Seal Kits
• Pump Seal Kits
• Casters / Wheels
• Air Pump Kits
• Cover
• Ram Protection Ring
• Safety Pins
• Replacement Reservoir
• Jack Pads
• PDF Operating Manuals
Renting

We provide short-term and long-term rentals for the 02-7809-0110. We will ship the item directly to you and arrange for pickup at the end of your lease.

Sell or Trade-In

We can purchase your used 02-7809-0110 (or similar GSE items like it) and apply it as a credit for new GSE, or buy it outright directly.
