Our Stock # 255747 - Serviceable
Overview

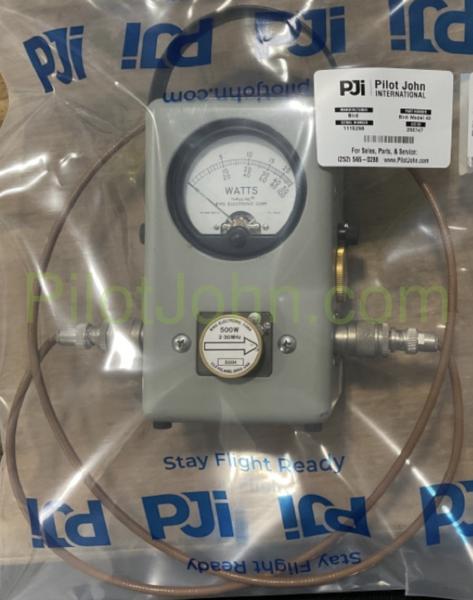

The Bird 43 Wattmeter is a field-proven portable, insertion-type instrument designed to measure both forward and reflected CW power in coaxial transmission lines under any load condition. With a full-scale accuracy of ± 5%, it accurately measures RF power with low added VSWR and insertion loss. QC (quick change) type connectors and a full range of plug-in elements provide a wide choice of frequency ranges and power levels giving the Model 43 amazing flexibility. Two extra elements can be stored in the housing, one on each side.
Features
- Accurate CW field power measurement over 450 kHz to 1.2 GHz and 100 mW to 10 kW
- Uses industry standard Bird elements with space to store 2 additional within the meter housing
- Rugged metal housing for the most demanding environments
- Quick Change (QC) connectors to minimize the need for adapters when making critical measurements
Specifications
- Power Range: 100 mW to 10 kW (using Bird® Plug-in Elements)
- Frequency Range: 450 kHz to 1.2 GHz (depending on element)
- Insertion VSWR: 1.05 max. to 1000 MHz (with N Connectors)
- Accuracy: ± 5% of full scale
- Connectors: QC Type (Female N normally supplied)
- Finish: Light Gray Powder Coat
- Dimensions:
- (H x W x D) 6.88 in x 5.13 in x 3.63 in (175 mm x 130 mm x 92 mm)
- Weight: 3 lbs. (1.4 kg)
| General Information | |
|---|---|
| Part # | 43 |
| Manufacturer | Bird |
Aircraft Compatibility
| Compatible Aircraft* |
|---|
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
