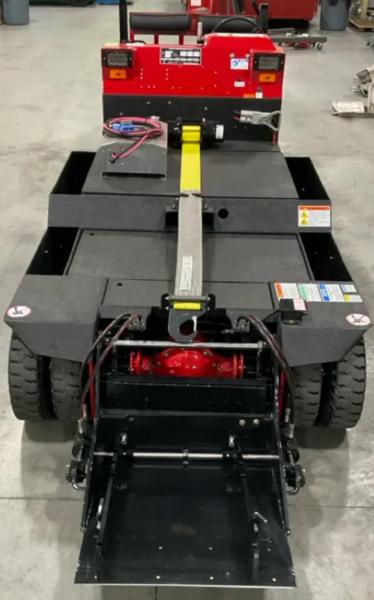

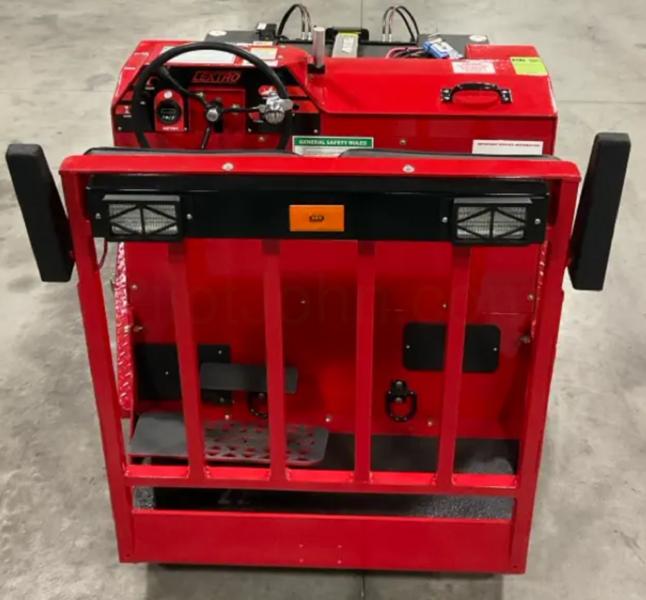

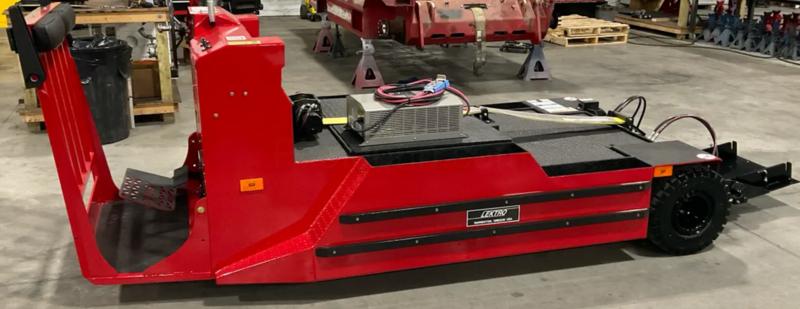

Lektro AP8750C - Used Electric Aircraft Tug

The Used AP8750C Electric Towbarless Aircraft Tug is an all-electric tow tractor built to move aircraft on the ramp or inside the hangar without a tow bar. Powered by a 72 VDC traction motor and Lektro's patented universal nose gear lift cradle, the AP8750C captures the nose wheel directly, making it a clean, quiet, zero-emission alternative to diesel ground support equipment for FBOs, MROs, and corporate flight departments.

Key Features

• All-electric, towbarless design that eliminates tow bars and reduces ramp emissions
• 33.1 HP / 24.8 kW, 72 VDC traction motor with Auburn/Dana 44 limited slip differential
• Patented universal nose gear lift cradle, electric/hydraulic actuated, handles dual-wheel nose gear
• EV-100 LX SCR speed control with on-board diagnostics and a combination hand throttle/directional lever
• Welded steel plate construction with protective polyurethane coating and steel rub rails
• Quiet operation suited to hangar, ramp, and all-weather aircraft positioning

Specifications

• Tow capacity: up to 80,000 lb (36,287 kg), configuration dependent
• Traction motor: 33.1 HP / 24.8 kW, 72 VDC
• Motive batteries: 72 VDC industrial, 275 AMP-HR (6 hr rate) with single point watering
• Optional built-in GPU: 12/24/28 VDC / 1175 CCA batteries and charging system
• Motive charger: external fully automatic 60 A DC / 208-480 VAC / 3-phase
• Construction: welded steel plate and polymers, polyurethane protective coating

Applications

The AP8750C is a versatile piece of aviation ground support equipment for towing and pushback of turboprops and business jets at medium FBOs, MRO facilities, OEMs, and regional operators.
