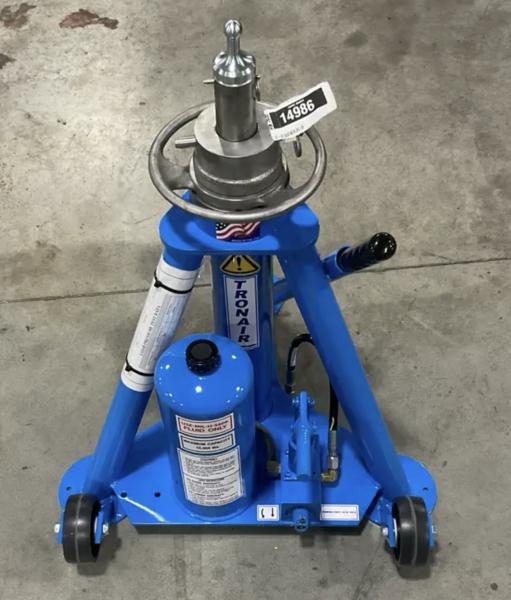

Tronair 02-7838-0110 Used 5-Ton Tripod Aircraft Jack (Non-CE)

Tronair 02-7838-0110 Used / Serviceable 5-Ton Tripod Aircraft Jack (Non-CE)

The Tronair 02-7838-0110 5-Ton Tripod Jack is a heavy-duty, single-stage aircraft jack designed for safely lifting aircraft during maintenance and servicing operations. This unit is offered in used, serviceable condition and has been inspected to ensure it is fully functional and suitable for continued aviation ground support use.

Built with a rugged steel tripod frame, this jack provides excellent stability and load distribution while lifting up to 10,000 lbs (5 tons). It features a mechanical ram locknut safety system that prevents unintended lowering under load, along with a quick-action mechanical extension to help position the jack efficiently under aircraft jacking points.

This model incorporates a manual hydraulic pump and is compatible with MIL-PRF-5606 hydraulic fluid, making it suitable for use in many legacy aircraft maintenance environments. While this jack meets its original U.S. operational design standards, it is not CE rated, which should be considered for international or EU-regulated operations.

This used unit is ideal for MRO facilities, flight schools, FBOs, and maintenance shops seeking a cost-effective, proven aircraft jack from a trusted manufacturer.

Key Features

• Rated for 5 tons (10,000 lbs) lifting capacity

• Tripod steel construction for stability and durability

• Single-stage hydraulic design

• Mechanical ram locknut to secure load under lift

• Quick-action mechanical extension for efficient positioning

• Manual hydraulic pump operation

• Uses standard MIL-PRF-5606 hydraulic fluid

• Proven Tronair design widely used in aviation maintenance

• Used / serviceable condition

• Not CE rated

Specifications

• Manufacturer: Tronair

• Part Number: 02-7838-0110

• Condition: Used – Serviceable

• Rated Capacity: 10,000 lbs (5 tons)

• Minimum Closed Height: 27 in

• Mechanical Extension: 8 in

• Hydraulic Extension: 15 in

• Maximum Height: 50 in

• Weight: Approx. 100 lbs

• Pressure Relief Setting: 1950 +250 / -0 psig

• Seal Material: Buna-N

• Hydraulic Fluid: MIL-PRF-5606

• Certification: Non-CE - Cannot be used in European countries
