Alberth Aviation FBL - Falcon Actuator Backlash Tool

The Alberth Aviation FBL Falcon Actuator Backlash Tool is designed to measure actuator backlash on Falcon aircraft jack screw assemblies. Proper backlash measurement is critical to maintaining flight control system integrity and ensuring compliance with OEM inspection intervals. Accurate readings help technicians detect excessive wear before it becomes a safety concern. The tool supports precise, repeatable maintenance procedures on Falcon aircraft.

Actuator backlash measurement is essential for monitoring wear within the jack screw and actuator system. Excessive backlash can indicate internal component wear that may affect control surface performance or system reliability. Routine measurement helps maintenance teams identify issues early and avoid costly repairs or unplanned downtime. Maintaining proper backlash tolerances supports overall aircraft safety and regulatory compliance.

The FBL is designed for use across multiple Falcon platforms, including Falcon 50, 900, and 2000 series aircraft. Its compatibility with multiple jack screw diameters allows maintenance facilities servicing mixed Falcon fleets to standardize tooling. This reduces the need for separate backlash measurement tools. Always verify applicability in accordance with the Aircraft Maintenance Manual (AMM).

Traditional backlash measurement methods may require additional disassembly or limited-visibility inspections. The FBL tool’s extended indicator configuration allows technicians to obtain clear readings with minimal aircraft disturbance. This reduces labor time and simplifies inspection procedures. Improved efficiency is particularly valuable during scheduled inspections or heavy maintenance checks.

Yes, the long pointer design is specifically intended to minimize unnecessary fairing removal. By extending the measurement reach, technicians can obtain readings without removing additional structural components. This saves time and reduces the risk of cosmetic or structural damage during disassembly. It also streamlines repetitive inspection tasks.

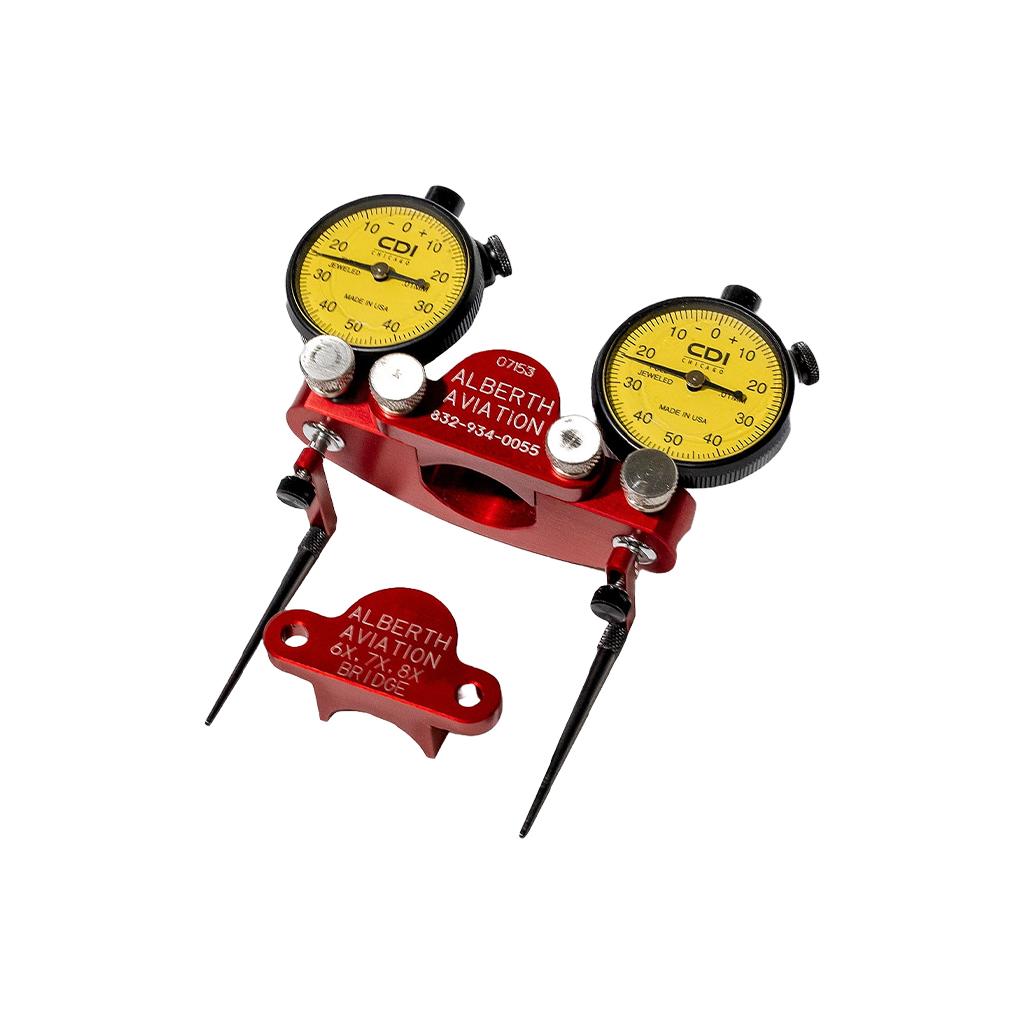

The tool’s large face dials and long indicator pointers enhance readability and reduce parallax errors. Clear visual feedback improves measurement consistency between technicians. Stable attachment across multiple jack screw diameters ensures secure positioning during testing. Consistency is critical when tracking backlash trends over time.

Yes, the FBL is engineered to fit all three Falcon jack screw diameters. This eliminates the need for maintaining separate diameter-specific tools. Consolidating tooling simplifies inventory management within MRO and corporate maintenance departments. It also reduces the risk of selecting the wrong measurement device.

The FBL Falcon Actuator Backlash Tool is ideal for MRO facilities, OEM service centers, corporate flight departments, and specialized Falcon maintenance providers. Its ergonomic configuration supports frequent use during heavy checks or recurring inspections. The design prioritizes durability and ease of handling in professional hangar environments. It is built for technicians who require reliable and repeatable results.

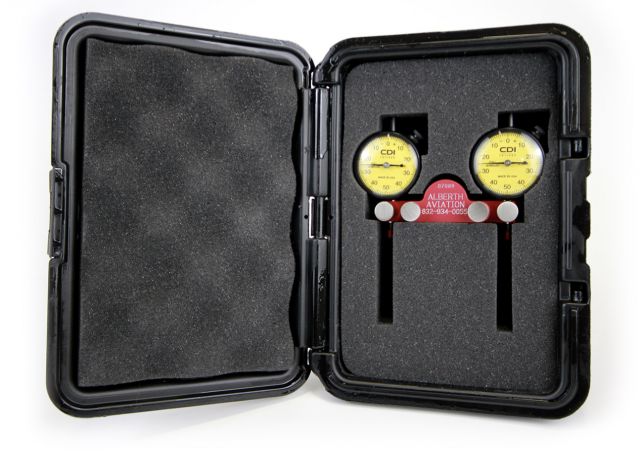

To maintain accuracy, the FBL tool should be cleaned after use and stored in a protective case or designated tooling cabinet. Indicator faces and moving components should be inspected regularly to ensure smooth operation. Keeping the tool free from debris and impact damage preserves calibration integrity. Proper care extends service life and ensures dependable measurement performance.

By enabling precise actuator backlash measurement, the FBL helps maintenance teams identify wear patterns early and schedule corrective action proactively. Early detection supports preventative maintenance strategies and reduces the likelihood of unexpected actuator issues. Consistent monitoring enhances the long-term reliability of Falcon flight control systems. Using specialized Falcon tooling, such as the FBL, reinforces a professional, compliance-focused maintenance program.
