BatteryMINDer® 128CEC2-OBD2 12V 2,4,8A CEC2 Charger/Maintainer/Desulfator W/OBD2 Connector + Lithium
User-Selectable Settings for All Sealed / Wet (filler cap) /Maintenance-Free / AGM / Deep Cycle / RV / Marine / PLT and Odyssey brand Lead-Acid** based Batteries. Diagnoses battery’s condition – can predict failing batteries before they die. For ALL 12-Volt Sealed and Wet “Filler Caps” Batteries Including AGM, PLT and Odyssey®. This BatteryMINDer® is an Odyssey-approved charger.
Selecting the Correct Amperage for Lead Acid Batteries:
All BatteryMINDers are regulated and will not overcharge, no matter what amp selection you make. It is just a matter of how fast you need to charge the battery.
• If you know the battery is charged and in good shape use the 2 Amp setting.
• If you are charging a large deep cycle battery or more than one battery than use 4 Amp setting.
• You will probably use the wet/AGM/sealed selection most of the time. Use the Odyssey selection on all named Odyssey batteries at the 8 Amp setting.
Features & Benefits:
• Guaranteed to never overcharge/undercharge between temperature extremes considered safe to charge or maintain by major battery manufacturers.
• Push-button Selection for ALL battery types and charge rates.
• 100% Full - Time U.S. Patented Pulse-type Desulfation keeps Lead Acid battery free of sulfate or dissolves sulfate completely in older batteries.
• Detects and rejects batteries with bad cells.
• Maximize battery life and capacity, recovers weak batteries.
• Diagnoses battery’s condition / state-of-charge.
• Recovers weak or deeply discharged batteries: including but not limited to flooded filler cap, maintenance-free, valve regulated lead-acid (VRLA), sealed lead-acid (SLA), starter, deep cycle and hybrid.
• Maintain up to 8 batteries at a time. (requires BatteryMINDer® Y-Connector Accessory(s) 210-AY).
• Auto-Restart after power failure.
• Automatic disconnect and resume if AC power is interrupted.
• Bad cell detection with auto-shutdown.
• Includes Short circuit, spark, reverse polarity protection, thermal runaway protection, automatic D/C disconnect on A/C failure and quick-connect/disconnect fused alligator clip assembly.
• Very high efficiency. California CEC Approved.
• Automatically detects input AC power.
• ECO-mode with hi-efficiency / low power consumption.
• Ambient temperature compensation. Built-in temperature sensor automatically adjusts charge rate to ensure full-charge between temperature extremes considered safe to charge or maintain by major battery manufacturers.
• 18 LED indicators show state-of-charge and important status mode / battery condition.
• Rugged, vibration-resistant construction.
• Never connect two or more batteries together before fully charging each and checking their condition. Failure to fully charge each battery and check their condition can result in a serious safety hazard.
• Not for nickel–cadmium (NiCad), nickel–metal hydride (NiMH) or aircraft batteries.

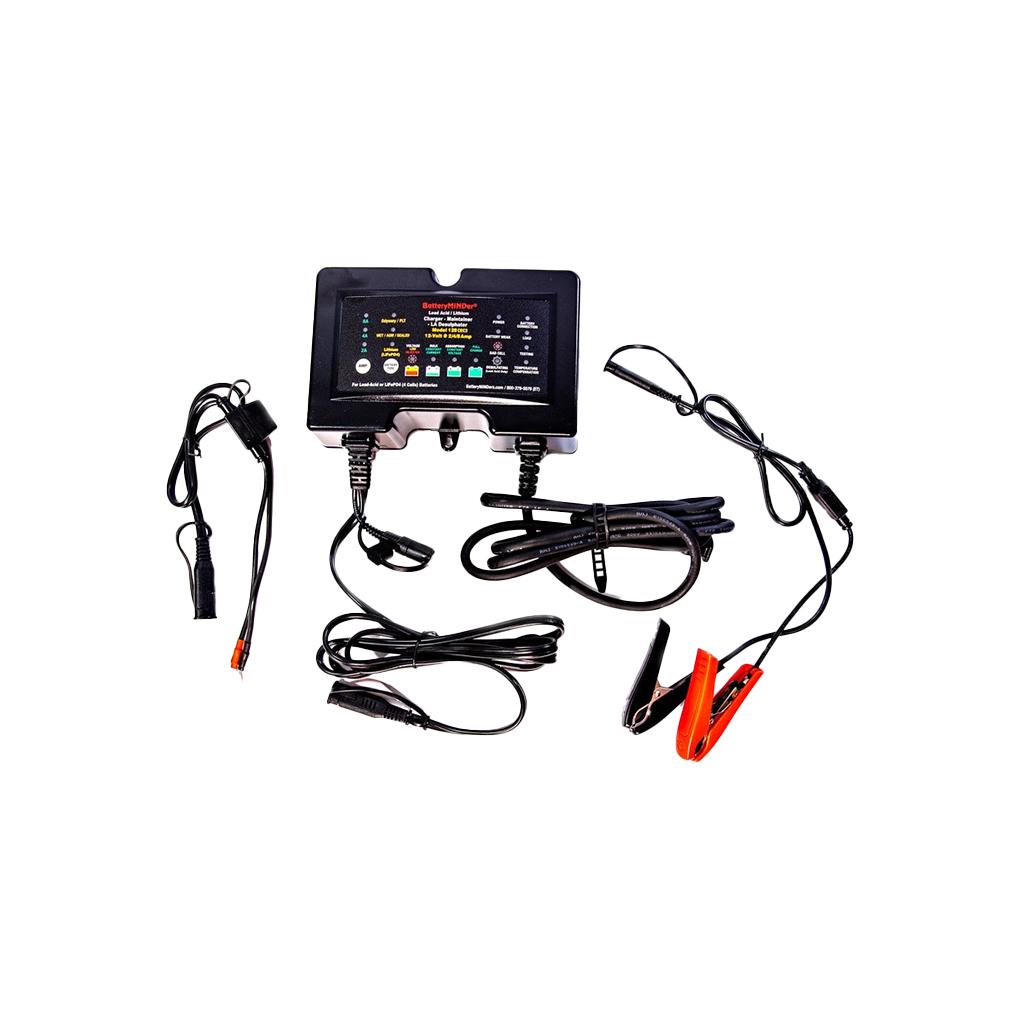

What's In the Box

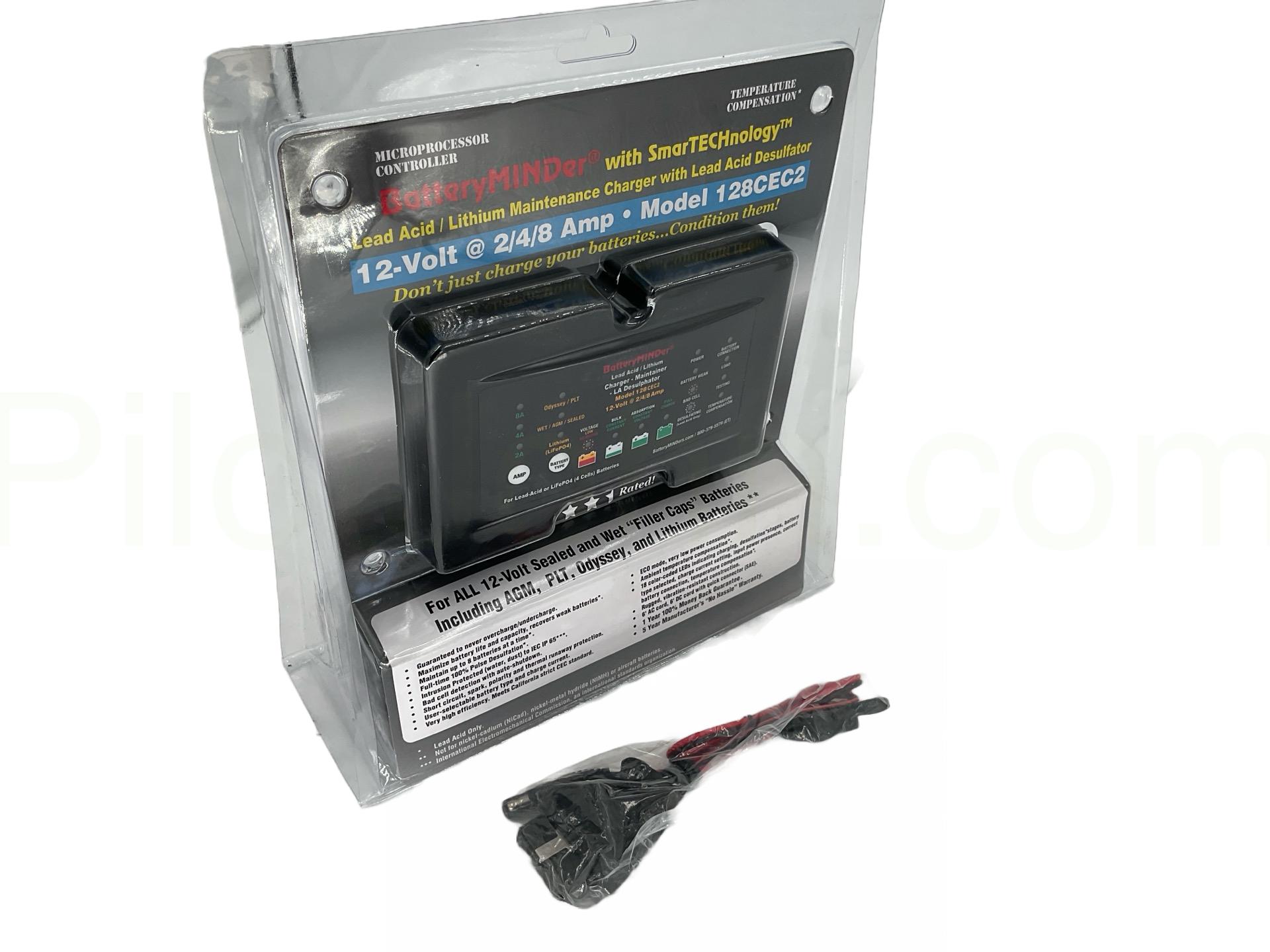

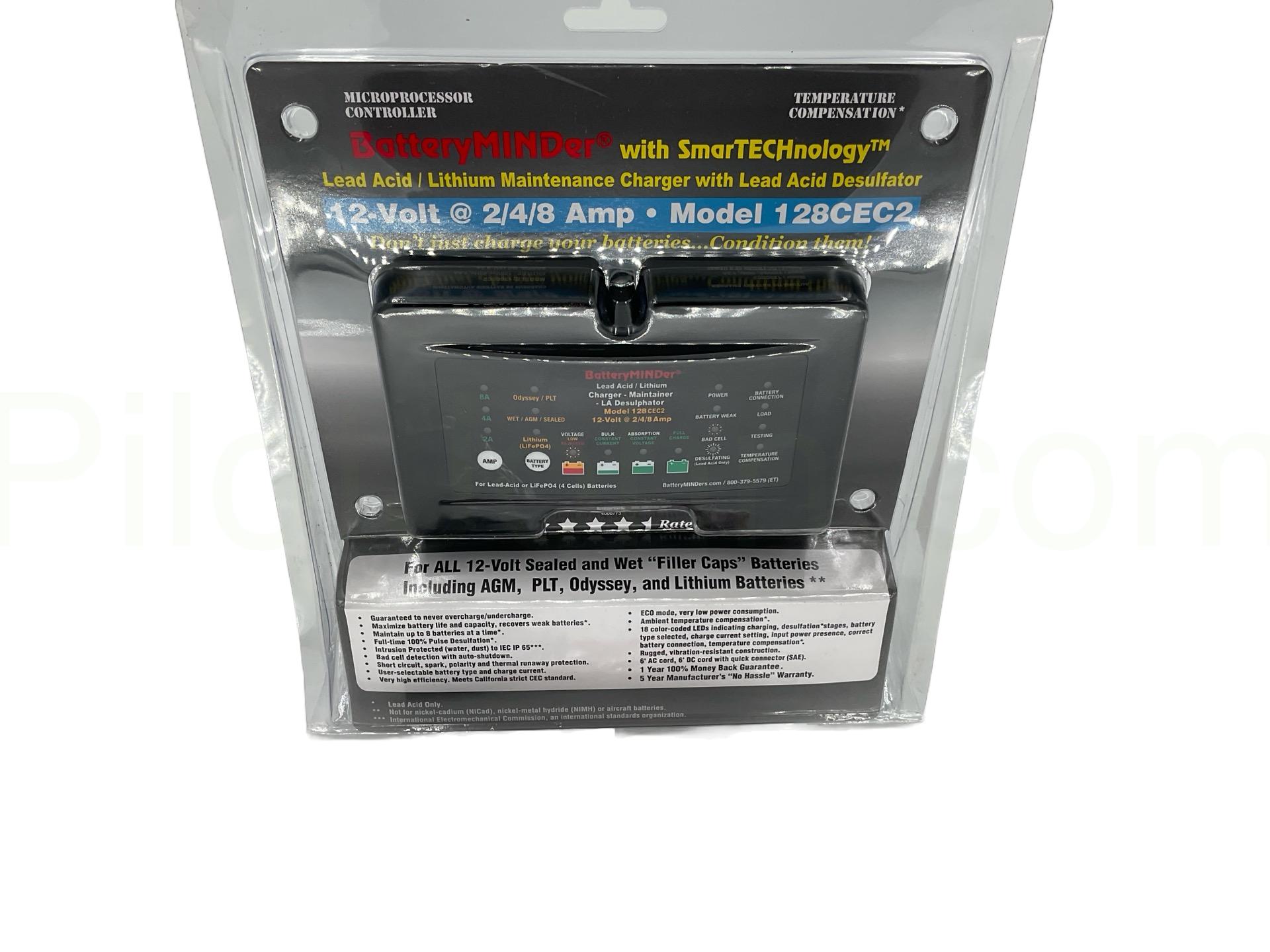

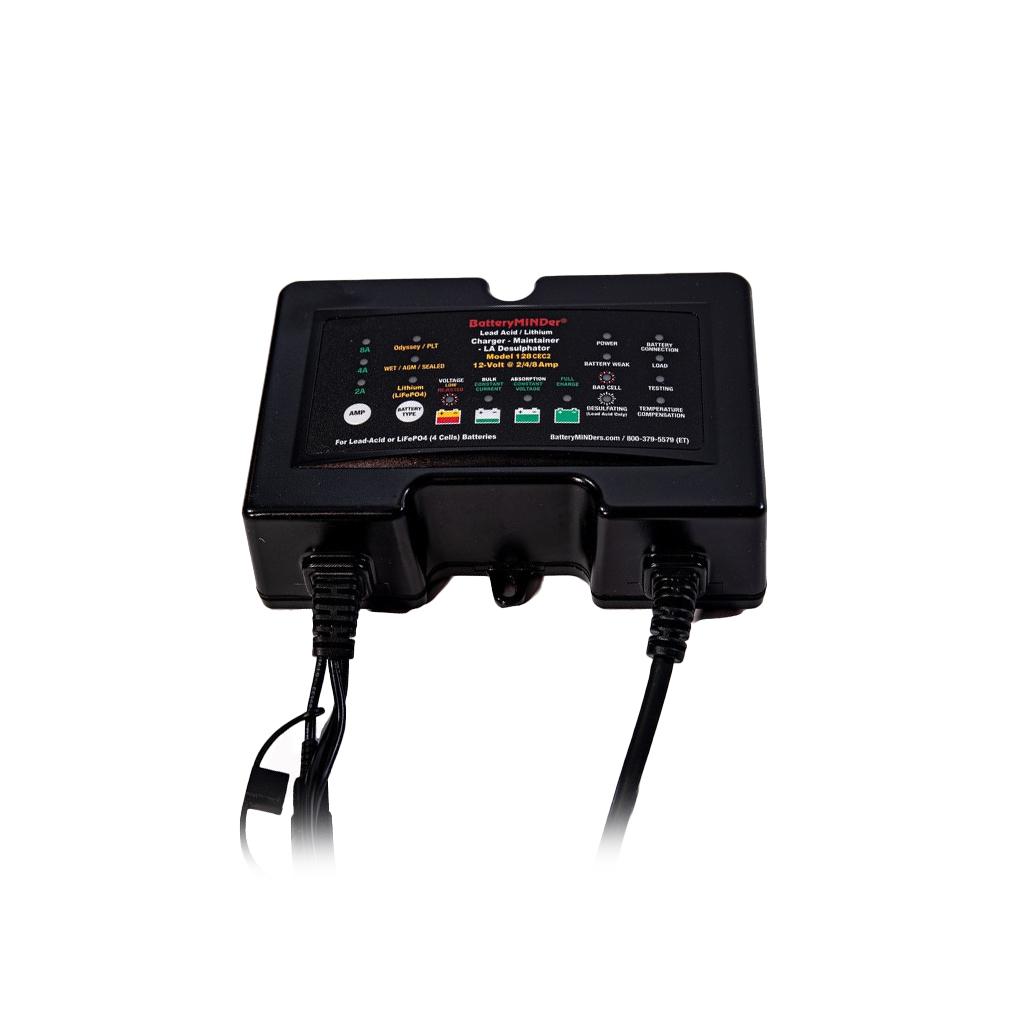

• Model 128CEC2 Charger-Maintainer-Desulfator

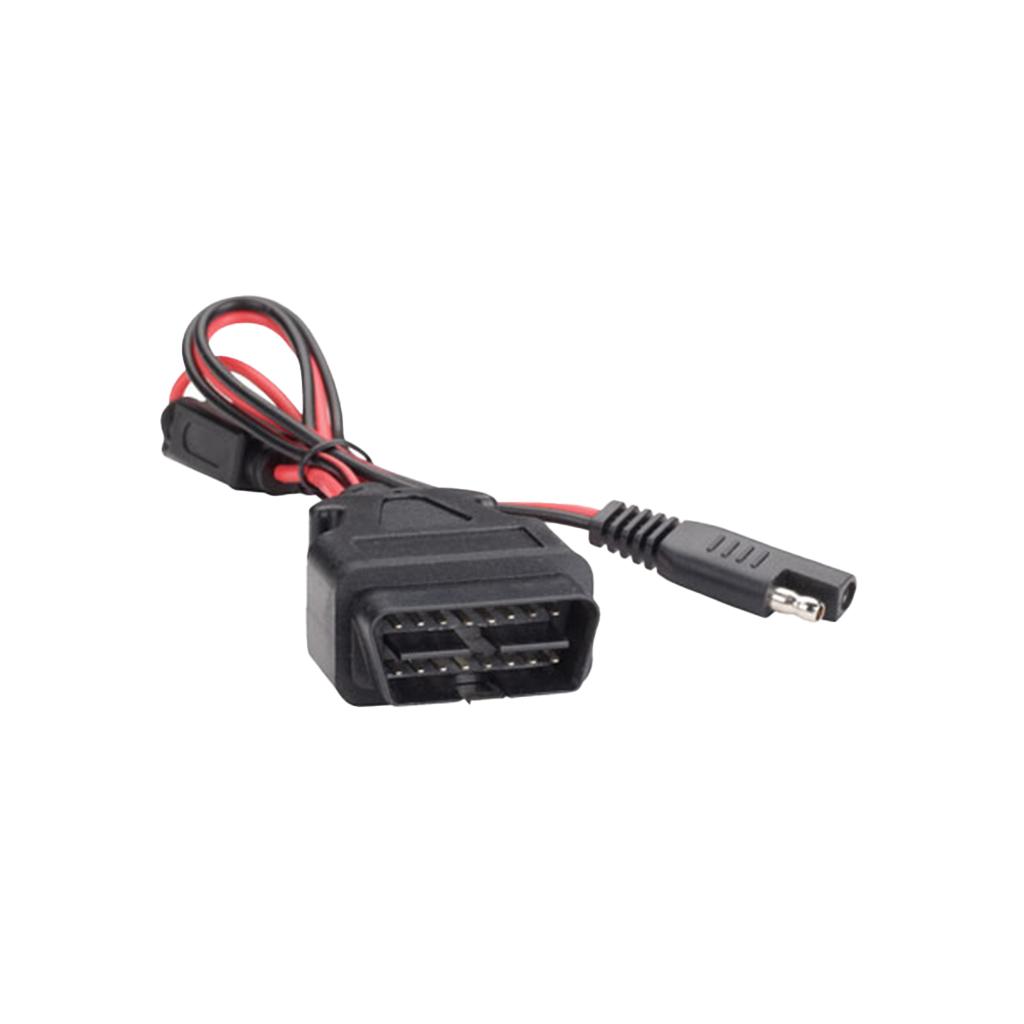

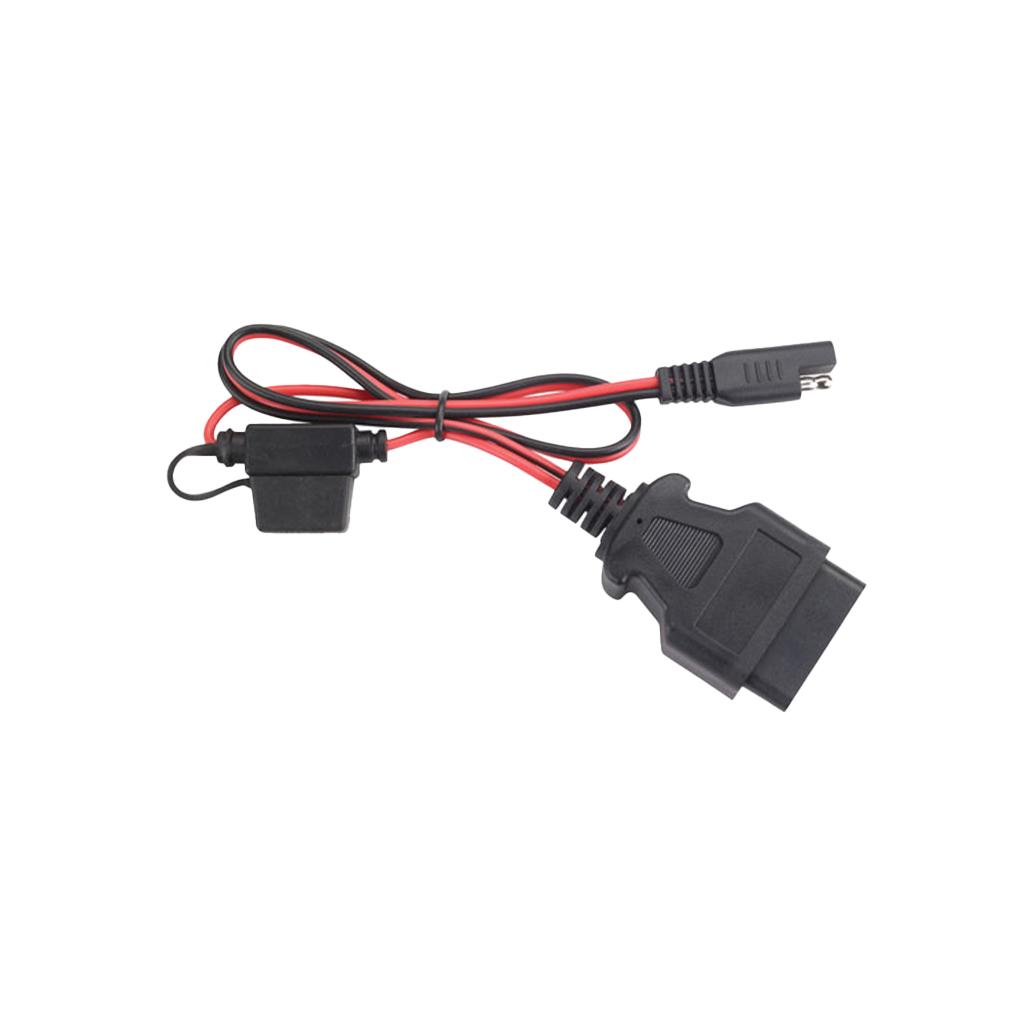

• SAE to OBD2 Connector
• 6' AC cord, 6' DC cord with quick connector (SAE)
• Auto-Temp Compensation Sensor (Installed)
• Insulated Battery Clip Cord Set with Quick Connector and 15A replaceable fuse
• Ring Terminal Cord Set with Quick Connector and 15A replaceable fuse
| General Information | |
|---|---|
| Part # | 128CEC2-OBD2 |
| Manufacturer | BatteryMINDer |
| Shipping Information | |
|---|---|
| Product Weight (Piece 1) | 3.29 lbs. |
| Product Dimensions (Piece 1) | 13 x 12 x 4 in. |
| Product Weight (Piece 2) | 0.29 lbs. |
| Product Dimensions (Piece 2) | 8 x 2 x 2 in. |
| Schedule B | 8504409520 |
| ECCN | EAR99 |
| Specifications | |
|---|---|
| Charging Current | 2/4/8 AMP |
| Comes with | OBD2 Connector, Auto-Temp Compensation Sensor (Installed), 2' Insulated Battery Clip Cord Set with Quick Connector and 15A replaceable fuse, 2' Ring Terminal Cord Set, Instruction Manual |
| International Standard | IP65, Dust tight |
| Multiple Batteries (#) | 8 |
| Optional Accessories | 210AY, 210RT, ABS-248, ATS-1, BCAA, DCE12, DCE25, EZC-01, EZC-RT, RTA-2415, RTA-7215, VPP12 |
| Overcharge Protection | Yes |
| Polarity Reversal Protection | Yes |
| Power Source | 90-140 VAC, 47-63 Hz |
| Product Dimensions | 4.9” L x 7.3” W x 2.1” H |
| Temperature Compensation | Yes: -4°F (-20°C) to 122°F (50°C) |
| Voltage | 12V |
| Warranty | 5 Year |
| Works With | All sizes/types/brands of 12 Volt flooded (filler cap) and sealed maintenance free batteries and 12V Lithium Batteries |
