VIAVI AVX-10K-CNS – Complete Avionics Testing Package
Create yours now for free.
Need a Quote?

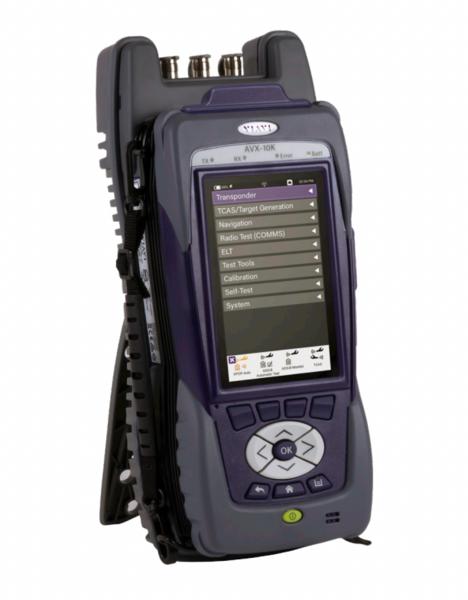

The VIAVI AVX-10K is a cutting-edge avionics testing solution that offers a range of features to ensure the safety and reliability of aircraft systems. Developed by a leading avionics team, the AVX-10K allows pilots and technicians to test a variety of systems, including transponders, ADS-B, DME, navigation, and radio communications. With the ability to customize the AVX-10K to meet your specific needs, this advanced testing solution is a must-have for any aviation professional.
The AVX-10K-CNS is the Communication, Navigation, and Surveillance package and includes all hardware needed to support all software options. TCAS, UAT, and ELT are optional.
The AVX-10K is a comprehensive flight line test solution providing today’s avionics technicians with an easy-to-use instrument for various maintenance needs. From a quick airborne system auto-test to an in-depth troubleshooting tool, testing can conveniently be done around the aircraft or in the cockpit from the touchscreen display or using your mobile device. Easy set-up, quick testing, and reporting transferable via USB, Ethernet, and wireless all done from a modern user interface or the VIAVI Solutions Mobile Tech App.
Building on nearly 50 years of providing superior avionics test sets, the AVX-10K is a compact, durable tester capable of providing a wide range of quick airborne system auto-tests and in-depth troubleshooting using software-specific applications.
The AVX-10K is approved for use on Boeing aircraft and is a direct replacement for the original VIAVI IFR4000 and IFR6000 testing units.
Features
- Configurable Test Capability
- Intuitive User Interface
- Software-Defined Applications
- Remote Operation
- Android and iOS Compatible
- Guided Test
- Built-In GPS Receiver
- International Test Configurations
Benefits
- Purchase Only the Test Options That You Need
- Time-Saving; Ease of Operation
- Easily Updated with Future Applications
- Conveniently Test In and Around the Aircraft from Your Mobile Device
- Recall Saved Test Sequences for Future Use
- Provides Accurate Positional Data for ADS-B Testing
- Compliant with Global Regulatory Requirements
Applications
- ATCRBS & Mode S Transponders
- 978/1090 MHz ADS-B In/Out UAT & GICB
- 978/1090 MHz ADS-B Traffic
- ACAS/TCAS I/II & TAS
- ILS – LOC, GS, & MB
- DME/VOR
- AM/FM Communications, SSB, & Expanded SELCAL
- 121/243/406 MHz ELT, EPIRBs, PLBs
- VSWR & Distance to Fault
Base Model AVX-10K-CNS Comes Standard With:
- AVX-10K – AVX-10K Avionics Test Unit
- AC10K-PWRADPTR – AC/DC Power Adapter
- AC10K-HANDSTRAP – Hand Strap
- AC10K-OPSMNL – Operations Manual
- AC10K-QSGUIDE – Quick-Start Manual
- AC10K-TRANSITCASE – Hard-Transit Carrying Case
- AC10K-ADPTRKIT – VSWR/DTF Calibration Kit
- AC10K-CBL6FT – 6' Coaxial Cable
- AC10K-ANT-FPANT – RF Flat Panel Antenna with 1’ Cable
- UC-584 – UC-584 Coupler with 25' Cable
- AC10K-ANT-ILS – VOR / ILS Antenna
- AC10K-ANT-MB – Marker Beacon Antenna
- UC-584S – UC-584S Coupler with 25' Cable
Standard Test Software Installed
- AVX-10K-SXPDR – Transponder Modes A, C, S
- AVX-10K-SADSB – ADS-B-In/Out/GICB/Target Gen
- AVX-10K-SDME – DME
- AVX-10K-SNAV – Navigation (ILS/MB/VOR)
- AVX-10K-SCOM – Radio Test AM/FM (Comms)
Software Available to Install (Request When Quoting)
- AVX-10K-STCAS – TCAS I/II
- AVX-10K-SUAT – UAT In/Out
- AVX-10K-SELT – ELT 121.5/243/406 MHz
Additional Accessories (Available for Purchase Separately)
- AC10K-ANTBRKT – Antenna Bracket (required to use Your current IFR6000 1030/1090 RF antenna)
- AC10K-CC – Soft-Sided Carrying Case
- AC10K-BATTERY – Internal Lithium-Ion Battery, 7.3V 13Ah
- AC10K-CBL12FT – 12' Coaxial Cable
- 141131 – 25' Coaxial Cable
- 142839 – 50' Coaxial Cable
- 140889 – TC-201A TCAS/XPDR Directional Antenna Coupler
- 90106 – UC-584S Coupler Placement Pole
Available Power Cords
- AC10K-PWRCRD-US/CAN – AC Power Cord – USA & Canada
- AC10K-PWRCRD-EU – AC Power Cord – Continental Europe
- AC10K-PWRCRD-AUSNZ – AC Power Cord – Australia & New Zealand
- AC10K-PWRCRD-INDIA – AC Power Cord – India
- AC10K-PWRCRD-UK/IRE – AC Power Cord – UK & Ireland
- AC10K-PWRCRD-SWITZ – AC Power Cord & Switzerland
Specifications
- Test Set: 12” H x 5.3” W x 3.75” D (30.5 cm x 13.5 cm x 9.5 cm)
- Transit Case Size: 24.5” H x 19.3” W x 22.2” D (62.2 cm x 49.2 cm x 31 cm)
- Weight: 6.5 lbs. (2.9 kg) – Test Set Only; 32 lbs. (14.5 kg) – Shipping Weight
- Battery: Up to 8 Hours of Operation
- Power: 100V to 250V AC, 1.5 amps Max., 47 to 63 Hz
- Operating Temperature Range: -20°C to 55°C (-4°F to 131°F)
- Storage Temperature: -30°C to 71°C (-22°F to 159.8°F)
| General Information | |
|---|---|
| Part # | AVX-10K-CNS |
| Manufacturer | Viavi |
| Shipping Information | |
|---|---|
| Shipping Weight | 40 lbs. |
| Shipping Dimensions | 20 x 13 x 26 in. |
| Schedule B | 9031808080 |
| ECCN | 7B994 |
| Hazmat/Dangerous Goods | Yes |
Customers also viewed
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
This item is for use on all aircraft.
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
Yes, the AVX-10K-CNS is the direct replacement for the IFR4000 and IFR6000 test sets.
With the AVX-10K-CNS test set, you can perform the capabilities of both the IFR4000 and IFR6000 in one unit!
This specific configuration is the Communications, Navigation, and Surveillance package and has ELT, UAT, and TCAS as optional add-ons.
No, you do not need to purchase the AVX-10K-CNS configuration if you only need Nav/Comm testing. You can perform all of your Nav/Comm testing needs with the AVX-10K-NAV configuration.
The AVX-10K-CNS is recommended if you're also looking to conduct Transponder, DME, and ADS-B testing in addition to Nav/Comm.
No, you do not need to purchase the AVX-10K-CNS configuration if you only need Transponder and ADS-B testing capabilities. You would be able to perform all of your testing needs with the AVX-10K-SVLC configuration.
The AVX-10K-CNS is recommended if you're also looking to conduct Marker Beacon, VOR, ILS, and other Nav/Comm testing in addition to Transponder and ADS-B.
Yes, the AVX-10K-CNS does have UAT, ELT, and TCAS testing capabilities. These options are not included, but they are available as add-ons.
Please let us know at the time of quote/purchase if you're interested in any of these additional options, so we can make sure your AVX-10K test unit is equipped with exactly what you need.
Yes! The AVX-10K-CNS test set does include the UC-584 Antenna Coupler for performing your ADS-B OUT system checks. There is no need to purchase the UC-584 as an add-on.
All AVX-10K models come with a standard one-year manufacturer warranty.
Yes! Although these units come with a standard one-year manufacturer warranty, there are options available for purchase to extend this warranty. These options range from three to five years with various benefits and coverages.
TIS- Traffic Information Service. This allows pilots to see aircraft that are NOT emitting ADS-B data but have a basic transponder. So… as an aircraft is discovered by primary radar and responds with encoded altitude information, this info is broadcast over ADS-B.
The TIS function is part of the TCAS function on the AVX-10K and is considered Target Generation.
TCAS is an optional function on all versions of the AVX-10K. (AVX-10k- STCAS).
No, additional hardware would not be needed to use with the AVX-10K-CNS if the ELT option is purchased, as the antenna that comes with the CNS version for the NAV functions will work for the ELT function as well.
Distance measuring equipment, or DME for short, is a radio navigation technology used to determine the distance between an aircraft and a ground-based DME station.
DME works by sending and receiving signals between the aircraft's transceiver and the DME station, measuring the time it takes for the signals to travel and calculating the distance based on the speed of light.
Commonly used in conjunction with VOR (Very High-Frequency Omnidirectional Range) navigation systems, DME provides pilots with accurate distance and direction information during flight.
Yes! The AVX-10K-CNS unit is supplied with the UC-584DUAL Coupler Kit at the time of purchase.
