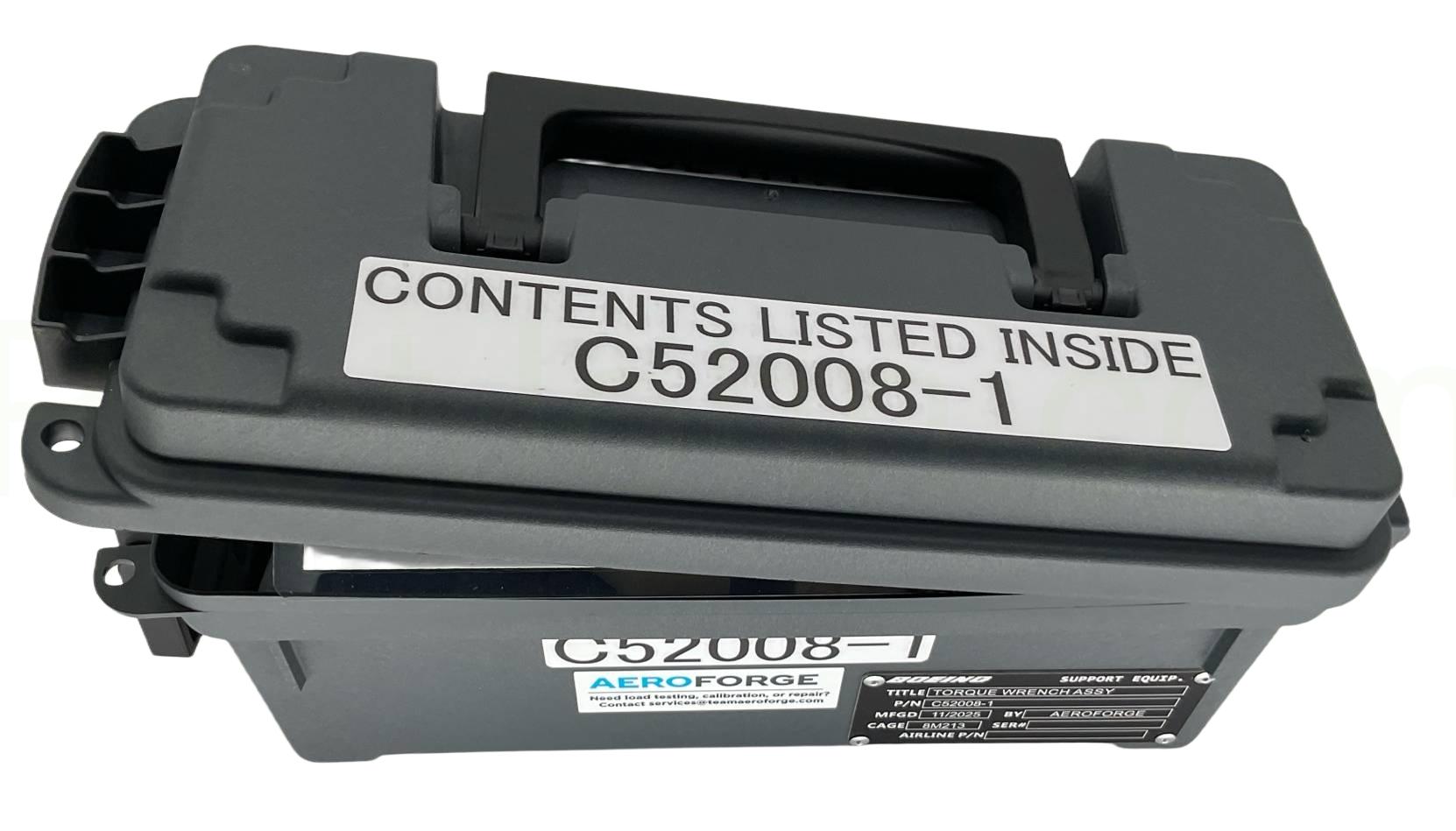

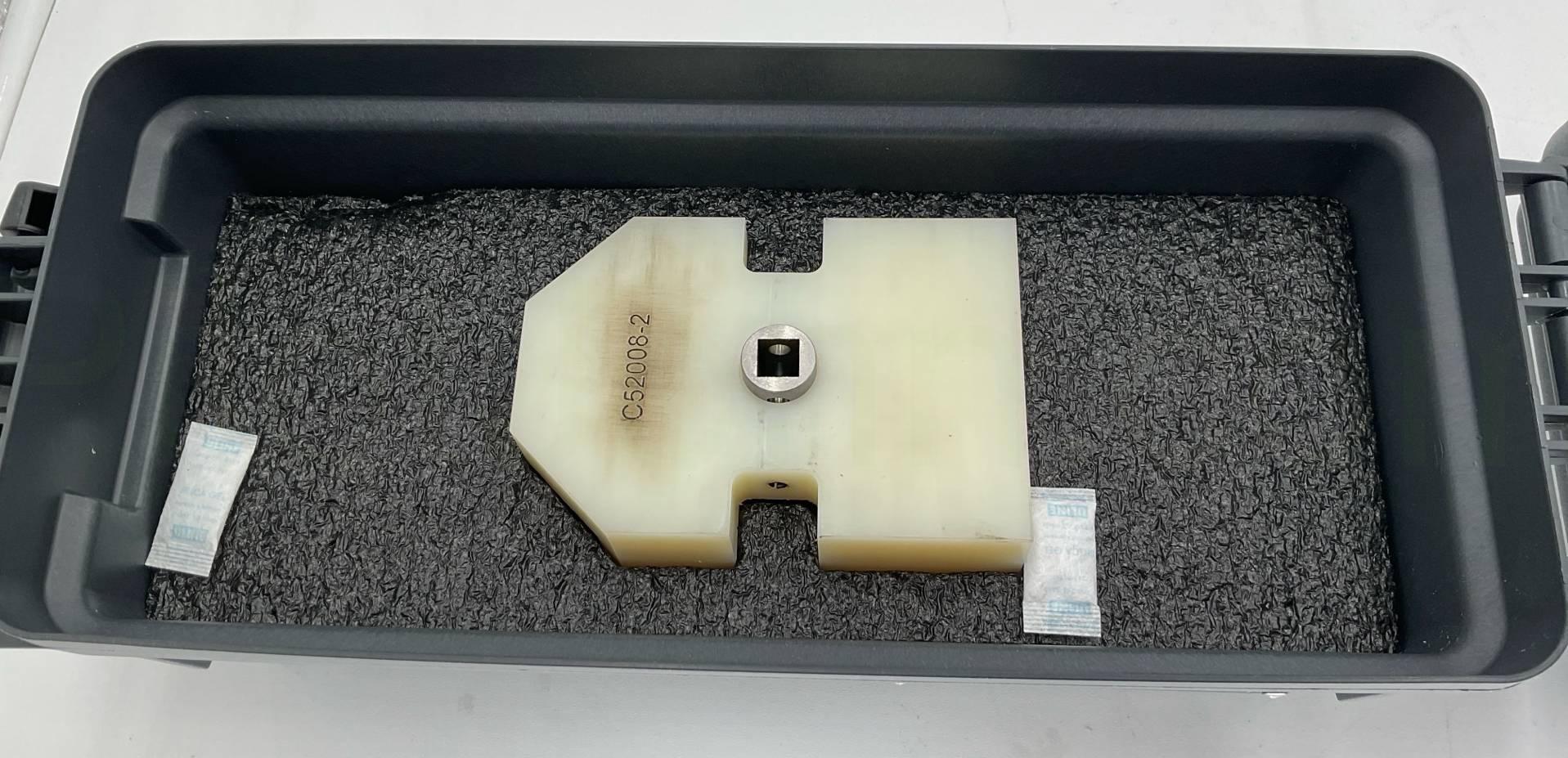

Boeing C52008-1 Torque Wrench Assy – Galley & Entry Door

The Boeing C52008-1 Torque Wrench Assembly is a specialized maintenance tool designed for applying correct torque to hinge and torque tube fasteners on galley service doors and passenger entry doors across the full Boeing 737 aircraft family. Boeing's Aircraft Maintenance Manual (AMM) specifies this tool for door hinge bolt torquing procedures under ATA Chapter 52 (Doors), ensuring that hinge-to-body and hinge-to-door fasteners are tightened to precise values required for safe, reliable door operation and pressure seal integrity.

Aircraft Applicability

• Boeing 737-100 / 737-200 (Original)
• Boeing 737-300 / 737-400 / 737-500 (Classic)
• Boeing 737-600 / 737-700 / 737-800 / 737-900 (NG)
• Boeing 737-8 / 737-8200 / 737-9 / 737-10 (MAX)

Purpose & Function

Boeing 737 galley service doors and passenger entry doors use a hinge-and-torque-tube system that allows the door to pivot outward and upward during normal operation. The hinge arm bolts, torque tube mounting bolts, and associated bearing support fasteners all require precise torque values to maintain proper door alignment, smooth operation, and pressure seal performance. The C52008-1 torque wrench assembly provides the specific adapter geometry needed to access and torque these fasteners in the confined hinge area where standard torque wrenches cannot reach or engage properly.

Key Features

• Boeing AMM-specified torque wrench adapter assembly for 737 galley and entry door hinge maintenance
• Engineered to access confined hinge areas on 737 door frames where standard wrenches cannot reach
• Covers the complete 737 family — a single tool supporting Original, Classic, NG, and MAX variants
• Supports hinge bolt, torque tube bolt, and bearing support fastener torquing per ATA Chapter 52 procedures
• Ensures proper clamping force on door hinge fasteners critical to pressure seal integrity and door alignment
• Required tooling for door adjustment, hinge replacement, and torque tube maintenance tasks

Typical Maintenance Applications

• Forward and aft entry door hinge bolt torquing
• Forward and aft galley service door hinge bolt torquing
• Door torque tube mounting bolt installation and torquing
• Hinge arm and bearing support fastener torquing
• Door-to-hinge alignment and adjustment procedures
• Door hinge replacement and reinstallation
• Post heavy-check door rigging and restoration (C-check, D-check)
• Door seal troubleshooting and corrective maintenance involving hinge reassembly

Related Part Numbers

The F80171-1 is an earlier-generation torque wrench for galley and entry doors that covers only the 737 Classic series (737-100 through -500). The C52008-1 extends coverage across the full 737 product line, including NG and MAX, making it the preferred tool for operators and MROs supporting mixed or current-generation 737 fleets.

Why This Tool Matters

Proper door hinge torquing is essential to the safe operation of pressurized passenger entry and galley service doors on the 737. Under-torqued hinge bolts can lead to excessive door sag, misalignment with latch tracks, increased operating force, and compromised pressure seal performance. Over-torqued fasteners risk damaging hinge arm bushings or cracking bearing supports. The C52008-1 gives A&P mechanics the Boeing-approved adapter geometry to apply precise, AMM-specified torque in the tight hinge pocket — supporting both safety and long-term door mechanism reliability across the entire 737 fleet.
