Brackett Aircraft Company (BAC) Tow System for CH-47 Helicopter - HT-47S

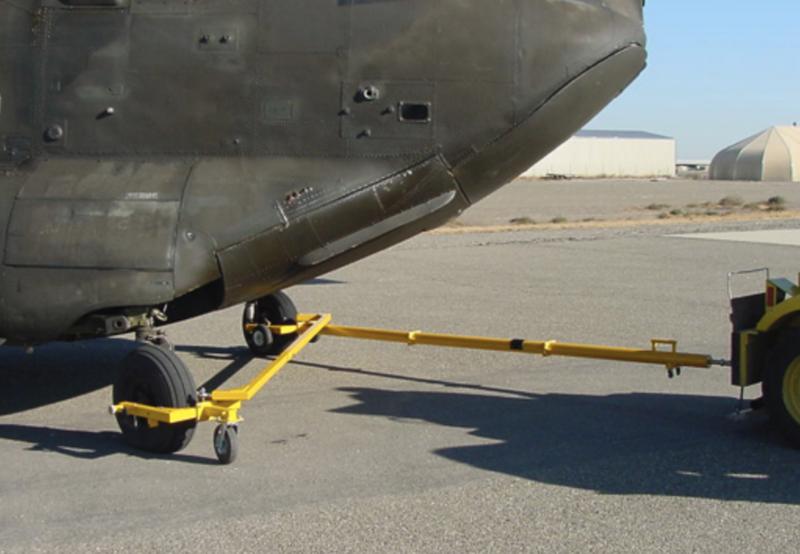

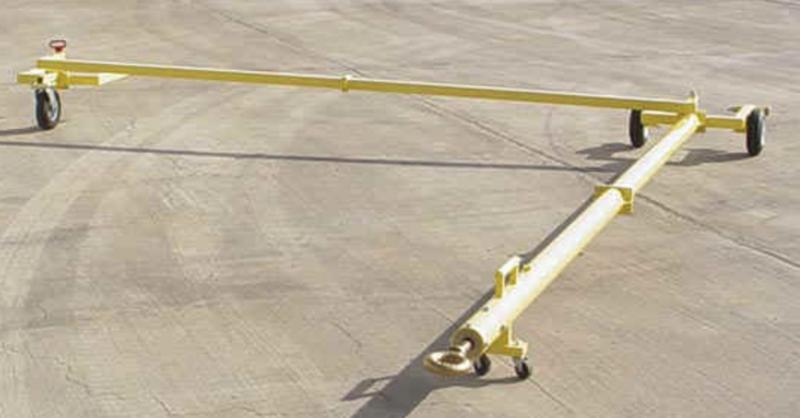

The Brackett HT-47S Towbar is a specialized ground handling tool engineered for CH-47 Chinook helicopters. This rugged towbar system is designed to attach securely to both rear wheels, eliminating the need to manually steer the left wheel during towing. A spring-loaded slide pin secures the main tow head to the right rear wheel, while an auxiliary tow head mounts to the left. A tie rod connects both heads, enabling synchronized movement and turning. With its quick breakdown design and 75,000-pound load rating, the HT-47S is ideal for military operations and heavy-duty ground handling tasks.

Key Features

• Designed specifically for towing CH-47 Chinook helicopters with synchronized dual-wheel engagement
• Primary tow head attaches to right rear wheel using a spring-loaded slide pin for fast installation
• Auxiliary tow head mounts to the left rear wheel and is linked via a tie rod for simultaneous turning
• Eliminates the need for manual steering input on the left wheel during towing operations
• Breaks down into compact components with an 80" stowed length for easy transport in vehicles or aircraft
• Overall length of 14.8 feet and 134" centerline between wheels provides broad stance for controlled towing
• Heavy-duty construction with a 75,000 lb. maximum load rating for military-grade durability
• Finished in yellow powder coat for corrosion protection and enhanced visibility on the ramp
• NSN: 1730-01-562-4023

The HT-47S is the go-to towbar for ground crews and maintenance teams working with CH-47 Chinooks, offering a safer, more efficient way to maneuver large helicopters without compromising control or portability.
