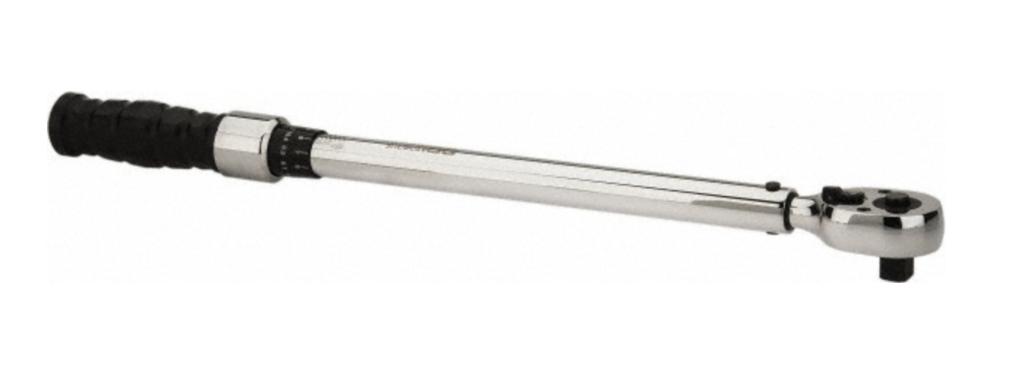

CDI 1503MFRPH – 1/2" Comfort-Grip Torque Wrench

The CDI 1503MFRPH is a 1/2-inch drive, dual-scale micrometer click-type torque wrench covering 20–150 ft-lb (27.1–203.4 Nm) — mechanically identical to the 1503MFRMH in range, accuracy, certification, and dimensions, with one deliberate difference: an ergonomic comfort-grip polymer handle instead of the knurled metal grip. At 19 inches long and 3.25 lb, the handle choice has a real effect over the course of a full day's work in a high-cycle inspection environment.

When the comfort-grip variant earns its place on a 1/2-inch drive wrench

At the 1/2-inch drive level, the work is heavier — cowling and nacelle fasteners, landing gear door hardware, wheel pant attach, brake caliper mounting, main gear axle nuts — and it typically comes later in a shift, after lighter-fastener work has already accumulated fatigue in the hands. A 19-inch, 3.25 lb wrench with a metal grip that's been sitting in a 40°F hangar overnight is noticeably more fatiguing to use over an extended landing gear sequence than the same wrench with an insulated polymer grip. For FBOs running active flight school fleets, inspection shops doing back-to-back student aircraft annuals, or maintenance facilities with high-cycle light GA throughput, that difference compounds meaningfully across a full maintenance season.

When the metal handle (1503MFRMH) is the better choice

The knurled metal handle of the 1503MFRMH provides better grip in oily or wet conditions and greater resistance to chemical degradation from hydraulic fluid, avgas, and shop solvents over extended service life. Shops doing fuel system work, brake hydraulics, or engine-adjacent work where the wrench regularly contacts fluids typically prefer the metal handle. Both carry the same internal precision and the same NIST-traceable documentation — the choice is about the grip surface, not the tool's capability.

Documentation-ready for certificated maintenance

Every 1503MFRPH ships individually serialized with a NIST-traceable certificate of calibration, satisfying traceability requirements in FAA-accepted maintenance programs, Part 145 repair station QCMs, and ISO 9001 quality systems. Meets or exceeds ASME B107.14 and ISO 6789. Accuracy: ±4% CW, ±6% CCW of indicated value from 20–100% of full scale.

Identical specs to the 1503MFRMH, different grip

• Same 1/2" drive, 20–150 ft-lb (27.1–203.4 Nm) range, 1 ft-lb graduation as the 1503MFRMH
• Same 19" overall length — same reach into engine bays and landing gear bays
• Ergonomic comfort-grip polymer reduces fatigue during extended landing gear, cowling, and wheel sequences
• Thermal insulation from polymer grip matters in cold hangars and outdoor ramp environments
• Spring-loaded pull-down lock ring locks the setting through multi-fastener sequences
• Laser-marked dual scale reads ft-lb and Nm simultaneously — no conversion chart needed
• Fixed ratcheting 1/2" drive head with quick-release button
• Audible click plus tactile impulse confirms torque in noisy hangar environments
• Rated to a minimum of 5,000 operating cycles
• Made in the USA by CDI Torque Products, a Snap-on Industrial Brands company

Where A&P mechanics reach for the 1503MFRPH

• Engine cowling and nacelle fasteners on light singles and light twins (20–40 ft-lb)
• Wheel pant, spinner, and fairing attach hardware (40–80 ft-lb)
• Brake caliper mounting bolts and nose gear shimmy damper hardware
• Main gear axle nuts on light singles and sport aircraft (80–120 ft-lb)
• Engine mount attach bolts on smaller piston aircraft (100–150 ft-lb)
• Flight school fleet annuals and high-cycle light GA inspection environments
