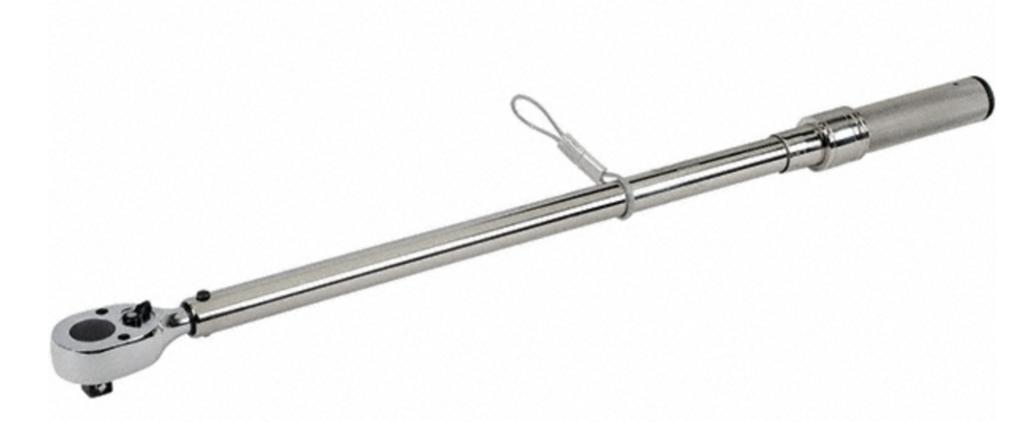

CDI 2503MFRMH-TH – 1/2" Tethered Torque Wrench

The CDI 2503MFRMH-TH is a 1/2-inch drive, dual-scale micrometer click-type torque wrench covering 30–250 ft-lb (40.7–338.9 Nm) — mechanically identical to the 2503MFRMH in every specification, with one addition: a built-in tether attachment point. That tether point is the whole reason this variant exists. Understanding when it matters requires understanding the two programs that drive demand for tethered tooling in aviation maintenance.

FOD prevention: the aviation-specific driver

FOD (Foreign Object Debris) programs at certificated repair stations, airline maintenance bases, and military aviation facilities require that tools used on or near an aircraft where they could fall into an engine inlet, control surface gap, wheel well, or fuel access be secured against that event. A torque wrench dropped from a maintenance stand onto an open engine bay or into an aircraft structure is an FOD event — it generates a mandatory report, a search, potentially a parts inspection, and in some cases a service delay. A tethered wrench attached to a belt ring or stand D-ring eliminates the drop event rather than just documenting it after the fact.

Work-at-height: the regulatory driver

OSHA general industry standards address tool tethering above 4 feet; construction standards at 6 feet. More directly for aviation, AS9100 Rev D and FAA-accepted quality management systems at airlines and large Part 145 operators frequently include work-at-height tool control requirements in their safety management programs. A factory-installed tether point satisfies those requirements more cleanly than an aftermarket attachment — it is part of the tool's design, not a field modification that may not be recognized by your QMS documentation.

The right range for work-at-height torque in aviation

Maintenance stands and scaffolding are standard for wing walk hardware, cowling and nacelle attachment, engine mount access on mounted-engine configurations, landing gear bay work on retractable gear aircraft, and prop retention on high-mounted turboprops. Those fasteners are 1/2-inch drive, 30–250 ft-lb hardware. The 2503MFRMH-TH covers that work with the tether provision built in.

Documentation-ready for certificated maintenance

Every 2503MFRMH-TH ships individually serialized with a NIST-traceable certificate of calibration, satisfying traceability requirements in FAA-accepted maintenance programs, Part 145 repair station QCMs, and ISO 9001 quality systems. Meets or exceeds ASME B107.14 and ISO 6789. Accuracy: ±4% CW, ±6% CCW of indicated value from 20–100% of full scale.

Identical specs to the 2503MFRMH — plus the tether point

• Same 1/2" drive, 30–250 ft-lb (40.7–338.9 Nm) range, 1 ft-lb graduation as the 2503MFRMH
• Same 24.40" overall length and 3.15 lb weight — same tool, same capability, secured against drops
• Factory-installed tether attachment point — part of the design, not an aftermarket modification
• Satisfies FOD prevention program tool control requirements in Part 145 and airline MRO environments
• Supports OSHA work-at-height tool tethering compliance and AS9100/QMS safety management programs
• Spring-loaded pull-down lock ring locks the setting before ascending to the work position
• Laser-marked dual scale reads ft-lb and Nm simultaneously
• Fixed ratcheting 1/2" drive head with quick-release button
• Audible click plus tactile impulse confirms torque when the work position limits direct sightlines
• Rated to a minimum of 5,000 operating cycles
• Made in the USA by CDI Torque Products, a Snap-on Industrial Brands company

Where work-at-height and FOD programs call for the 2503MFRMH-TH

• Wing walk and wing root structural hardware on high-wing aircraft from maintenance stands
• Engine cowling and nacelle attach hardware on mounted-engine configurations at elevated access
• Engine mount attach bolts on high-wing and pylon-mounted configurations (150–250 ft-lb from scaffolding)
• Landing gear bay structural hardware and drag brace attach on retractable gear aircraft
• Propeller retention hardware on high-mounted turboprops from maintenance platforms
• Any 1/2" drive, 30–250 ft-lb fastener within scope of an active FOD or work-at-height tool program
