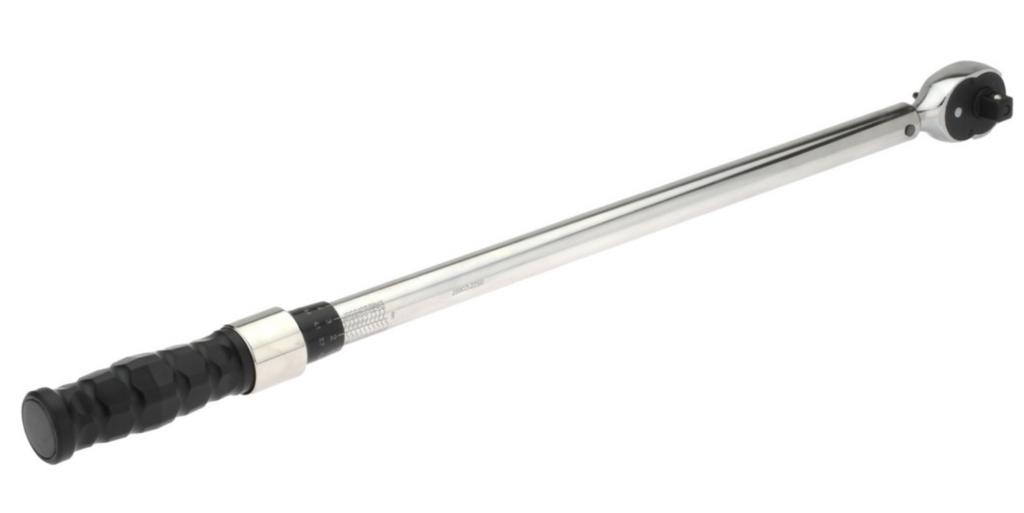

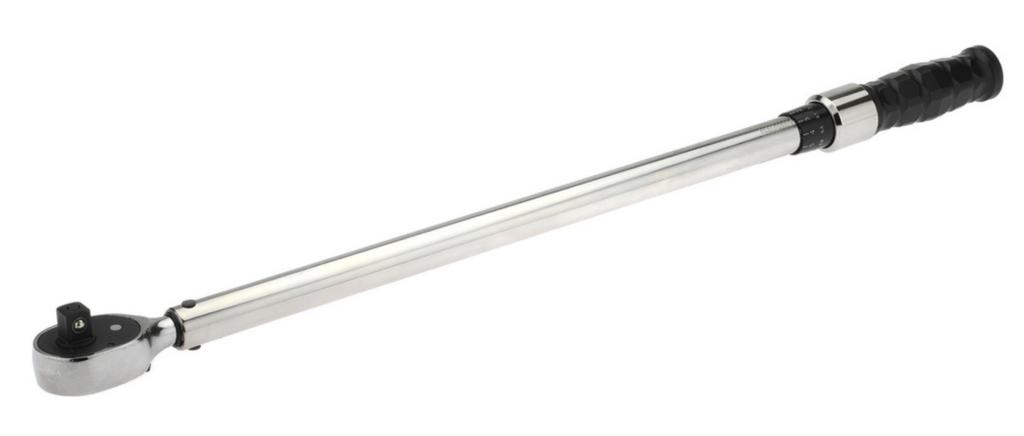

CDI 2503MFRPH – 1/2" Comfort-Grip Torque Wrench

The CDI 2503MFRPH is a 1/2-inch drive, dual-scale micrometer click-type torque wrench covering 30–250 ft-lb (40.7–338.9 Nm) — mechanically identical to the 2503MFRMH in range, accuracy, certification, and 24.40-inch overall length, with an ergonomic comfort-grip polymer handle instead of the knurled metal grip. At 3.40 lb and nearly two feet long, this is the point in the CDI comfort-grip family where the handle choice carries the most physical consequence over a full day's work.

The longest wrench in the comfort-grip family — and why the handle matters most here

A 24-inch, 3.40 lb wrench working engine mount bolts, main landing gear attach hardware, and propeller retention fasteners at 150–250 ft-lb is a two-handed tool on many sequences. The polymer grip distributes sustained contact pressure more evenly and provides thermal insulation that compounds in cold hangar and ramp environments. For FBOs running back-to-back flight school annuals in a cold November hangar, or inspection shops pushing a seasonal fleet prep through in a tight window, the difference between a metal and polymer grip on a 24-inch wrench late in the heavy-fastener portion of the work is the most tangible argument for the comfort-grip variant anywhere in the CDI lineup.

When the metal handle (2503MFRMH) is the better choice

The 2503MFRMH knurled metal handle provides better grip in oily or wet conditions and greater long-term resistance to hydraulic fluid, avgas, and shop solvents. Shops doing brake hydraulic work, fuel system maintenance, or engine-adjacent fastener work where the wrench regularly contacts fluids typically prefer the metal handle. Both wrenches carry the same internal mechanism, the same ±4% CW accuracy, and the same NIST-traceable documentation — the choice is entirely the grip surface.

Documentation-ready for certificated maintenance

Every 2503MFRPH ships individually serialized with a NIST-traceable certificate of calibration, satisfying traceability requirements in FAA-accepted maintenance programs, Part 145 repair station QCMs, and ISO 9001 quality systems. Meets or exceeds ASME B107.14 and ISO 6789. Accuracy: ±4% CW, ±6% CCW of indicated value from 20–100% of full scale.

Identical specs to the 2503MFRMH, different grip

• Same 1/2" drive, 30–250 ft-lb (40.7–338.9 Nm) range, 1 ft-lb graduation as the 2503MFRMH
• Same 24.40" overall length — same reach and leverage for heavy landing gear and engine mount sequences
• 3.40 lb comfort-grip polymer handle — the longest, heaviest wrench in the CDI comfort-grip family
• Ergonomic grip reduces fatigue on two-handed heavy fastener sequences in the 150–250 ft-lb band
• Thermal insulation matters most at this length and weight, in cold hangar and outdoor ramp environments
• Spring-loaded pull-down lock ring locks the setting through extended structural torque sequences
• Laser-marked dual scale reads ft-lb and Nm simultaneously — no conversion chart needed
• Fixed ratcheting 1/2" drive head with quick-release button
• Audible click plus tactile impulse confirms torque in noisy hangar environments
• Rated to a minimum of 5,000 operating cycles
• Made in the USA by CDI Torque Products, a Snap-on Industrial Brands company

Where A&P mechanics and line technicians reach for the 2503MFRPH

• Engine mount attach bolts on heavier light singles and light twins (150–200 ft-lb)
• Main landing gear structural attach hardware and drag brace fasteners
• Wheel axle nuts on heavier GA aircraft (150–250 ft-lb)
• Fixed-pitch propeller retention hardware on Continental and Lycoming powered aircraft
• Flight school fleet annuals and high-cycle light GA inspection environments
• GSE tug, tractor, and ground power unit chassis hardware requiring 1/2" drive documentation

Why source aviation tooling from Pilot John International

Pilot John International is an aviation-specialist distributor — not a general industrial catalog. We serve Part 145 repair stations, FBOs, MRO operations, and flight schools across the U.S. Whether your shop runs metal or comfort-grip handles, both CDI variants come from the same aviation-specialist source with the same NIST-traceable documentation — and both can be recertified by our on-site ISO 17025-accredited calibration laboratory when they come due.
