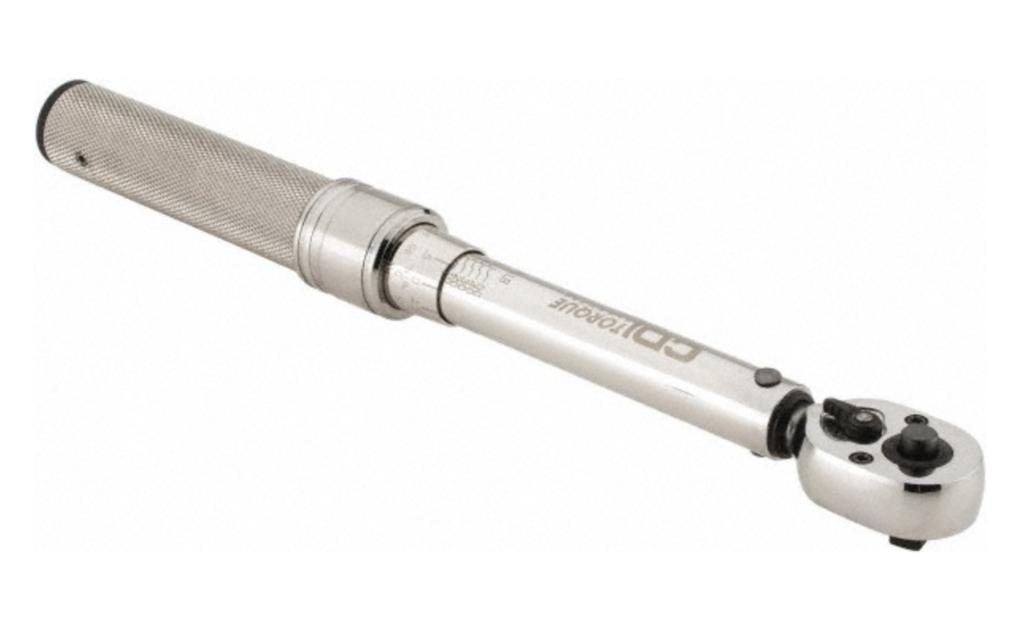

CDI 501MRMH – 1/4" Drive Micrometer Torque Wrench

The CDI 501MRMH is the lowest-range micrometer adjustable wrench in the CDI metal handle family — a 1/4-inch drive, dual-scale click-type torque wrench covering 10–50 in-lb (1.1–5.6 Nm) with NIST-traceable documentation. That 10 in-lb floor is where this wrench earns its specific place: it covers the connector hardware, avionics mounting fasteners, bonding terminals, relay panel screws, and instrument mounting hardware that most A&P mechanics have traditionally tightened with a screwdriver and judgment rather than a calibrated, documented torque application.

Why the 501MRMH exists alongside the 1501MRMH

A click-type torque wrench is accurate from 20% to 100% of its full scale. On a 1501MRMH (150 in-lb full scale), the accurate band starts at 30 in-lb — hardware at 10–29 in-lb is below the wrench's reliable accuracy range. The 501MRMH (50 in-lb full scale) puts its accurate band starting at 10 in-lb, placing 15, 20, and 25 in-lb fasteners squarely within the range where ±4% CW holds. For avionics installation shops, avionics-heavy repair stations, and general maintenance environments where 10–30 in-lb hardware appears regularly, the 501MRMH is the correct tool rather than the 1501MRMH operating at the bottom of its scale. The two wrenches together cover 10–150 in-lb with each range's hardware in the accurate middle of its respective scale.

Documentation-ready for the small-fastener work that most programs overlook

Every 501MRMH ships individually serialized with a NIST-traceable certificate of calibration, satisfying traceability requirements in FAA-accepted maintenance programs, Part 145 repair station QCMs, and ISO 9001 quality systems. Meets or exceeds ASME B107.14 and ISO 6789. Accuracy: ±4% CW, ±6% CCW of indicated value from 20–100% of full scale. The documentation requirement for 10–50 in-lb hardware is the same as for larger fasteners — the tool that covers it needs to be as traceable as any other in the tool crib.

Built for the small-fastener range no other CDI MRMH wrench covers optimally

• 10–50 in-lb (1.1–5.6 Nm) — the lowest range of any CDI MRMH micrometer adjustable wrench
• 10 in-lb floor covers connector backshell hardware, bonding terminals, and relay mounting screws at full-accuracy band
• 1 in-lb graduation for fine resolution across the narrow 40 in-lb working range
• 1/4" drive — same compact footprint as the 1501MRMH; fits the same spaces in avionics bays and instrument panels
• 10.15" overall length and 0.85 lb — genuinely compact for avionics bay and panel work
• Knurled metal handle withstands daily professional use in avionics installation and repair environments
• Spring-loaded pull-down lock ring locks settings before inserting into confined access spaces
• Laser-marked dual scale reads in-lb and Nm simultaneously — no conversion chart needed
• Fixed ratcheting head with quick-release button for fast socket changes between small fastener types
• Rated to a minimum of 5,000 operating cycles
• Made in the USA by CDI Torque Products, a Snap-on Industrial Brands company

Where A&P mechanics and avionics technicians reach for the 501MRMH

• Avionics connector backshell hardware and MIL-spec connector retention screws (10–25 in-lb)
• Bonding strap terminal hardware and grounding screws on aircraft electrical installations
• Relay and circuit breaker panel mounting fasteners in avionics bays
• Instrument panel mounting screws in composite and aluminum instrument panels (15–35 in-lb)
• Avionics box mounting fasteners on retrofit and certification installations
• Light engine accessory and sensor mounting hardware in the 20–50 in-lb band

Why source aviation tooling from Pilot John International

Pilot John International is an aviation-specialist distributor — not a general industrial catalog. We serve Part 145 repair stations, FBOs, MRO operations, and flight schools across the U.S. The 501MRMH is the tool that closes the documentation gap on small-fastener avionics work — and our on-site ISO 17025-accredited calibration laboratory recertifies it when due, keeping it in your tool crib with a current NIST-traceable certificate rather than sitting in a drawer because "it's just small stuff."
