Available for Order
Lead Time: Chat now or request quote
$3,494.97 /ea.
Qty
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?

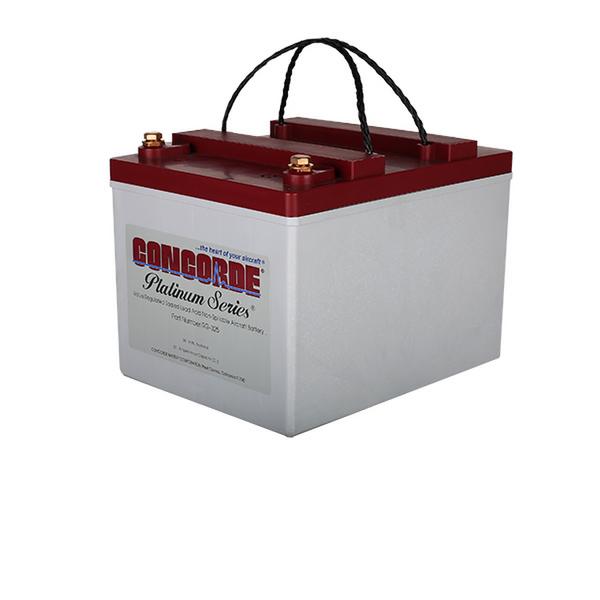

RG-325 is housed in a polypropylene container with lifting rope attached to the molded polypropylene cover. M8 silicon bronze alloy terminals for corrosion free connections and maximum conductivity.
| General Information | |
|---|---|
| Part # | RG-325 |
| Manufacturer | Concorde |
| MSDS 1 | View Safety Data Sheet |
| Shipping Information | |
|---|---|
| Schedule B | 8507200090 |
| ECCN | 9A991.d |
| Specifications | |
|---|---|
| C1 Capacity | 25 Ah |
| CCA @ 32°F | 0 |
| Engine Starting | Yes |
| Height | 7.38 in |
| IPP -18° C | 750 |
| IPP -30° C | 550 |
| IPP 23° C | 1000 |
| IPR -18° C | 600 |
| IPR -30° C | 450 |
| IPR 23° C | 650 |
| Length | 10.11 in |
| Volts | 24 Volt |
| Weight | 52 lb / 23.6 kg |
| Width | 9.76 in |
Customers also viewed
Replacement Cylinder Seal Kit for Select Tronair Aircraft Tire Bead Breakers
27" to 72", CE-Marked, Nose Landing Gear – Dash 8-400
Digital Turbine Temperature Unit
Vertical Speed Indicator
Honeywell SSFDR Interface Cable
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Cirrus | SF50 (Jet) G1 |
| Robinson Helicopter | R66 |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
