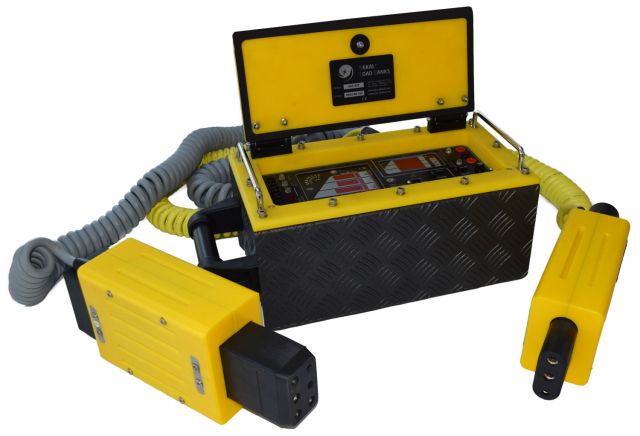

Dekal ANA-440 AC 400 HZ GPU Power Analyzer (2 AC Plugs)

The Future is Here for Load Banks and Power Analyzers - Dekal GPU Power Analzyers

Advantages of ANA-440 AC GPU Power Analyzer (2 AC Plugs)

• Simple operation suitable for non-trained operators
• 115 - 200V / 400 Hz V AC Power measuring, connected between GPU and Aircraft
• Allowing the billing od ground power by time and kW
• Monitoring and data logging, curve and table view
• Real time measurements < 10 ms pooling
• Visible on smartphone, tablet and laptop - WIFI
• Measuring possible to export in pdf, excel and jpg files
• Free DEKAL software applications for download available
• Suitable for workshop or airside operation

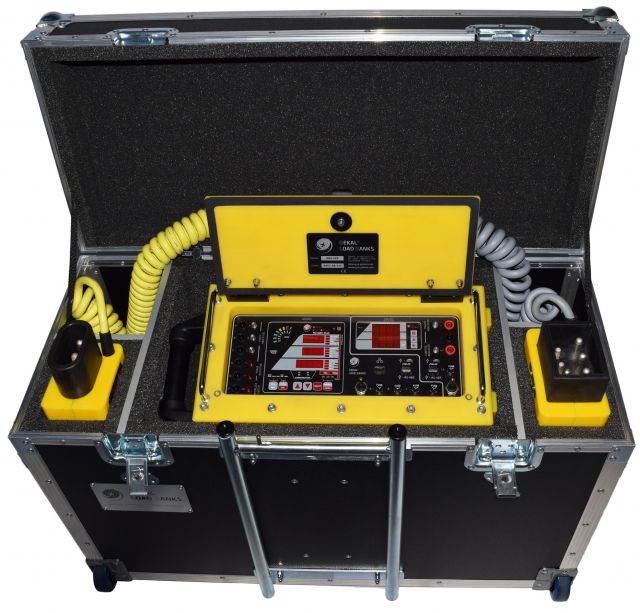

• Carrying shipping case with pull up handle as standard for each analyzer
• Aluminum housing and non corrosive parts
• High component quality High reliability
• Spare parts availability and accurate on-time deliveries
• Short delivery times
• 2 years warranty
• CE certification
• Customized model configuration; DC, AC, DC/AC, AC/AC analyzer models

Specifications

• AC Voltage: 115/200 V AC +/- 20%
• AC Load: 0 to 180 KW +/- 10%
• Frequency: 400 HZ +/- 20%
• 3 Line High Brightness Red LED Display: V, A, Hz, kW, kVA, Unbal. % load, cos o
• Plug Test Pins for External Instrument Device: A, B, C, N, E, F (AC)

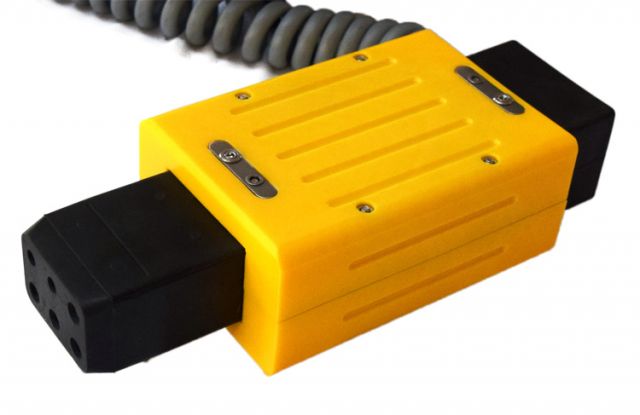

• Interface Between GPU and Aircraft: 2 x 400 Hz
• Indications: 1 x Interlock, Phase Indication, Phase Rotation
• Connection to Device With Included Free Dekal Software: USB AND WIFI
• Testing Procedure According: ISO 6858, DSF 400, ARP 5015
• Device Classification: CE marking, DIN, VDE, IEC

Dimensions and Weight

• Analzyer Size: 20.5 x 9.8 x 9 inches / 22 lbs - 520 x 250 x 230 mm / 10 Kg
• Transport Casing: 33 x 15 x 23 inches / 48 lbs - 840 x 380 x 580 / 22 Kg
• Analzyer Painting / Transport Casing: Power Coating Fine Structure 71319 IGP / Swiss Quality / High Grade Aluminum

*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
