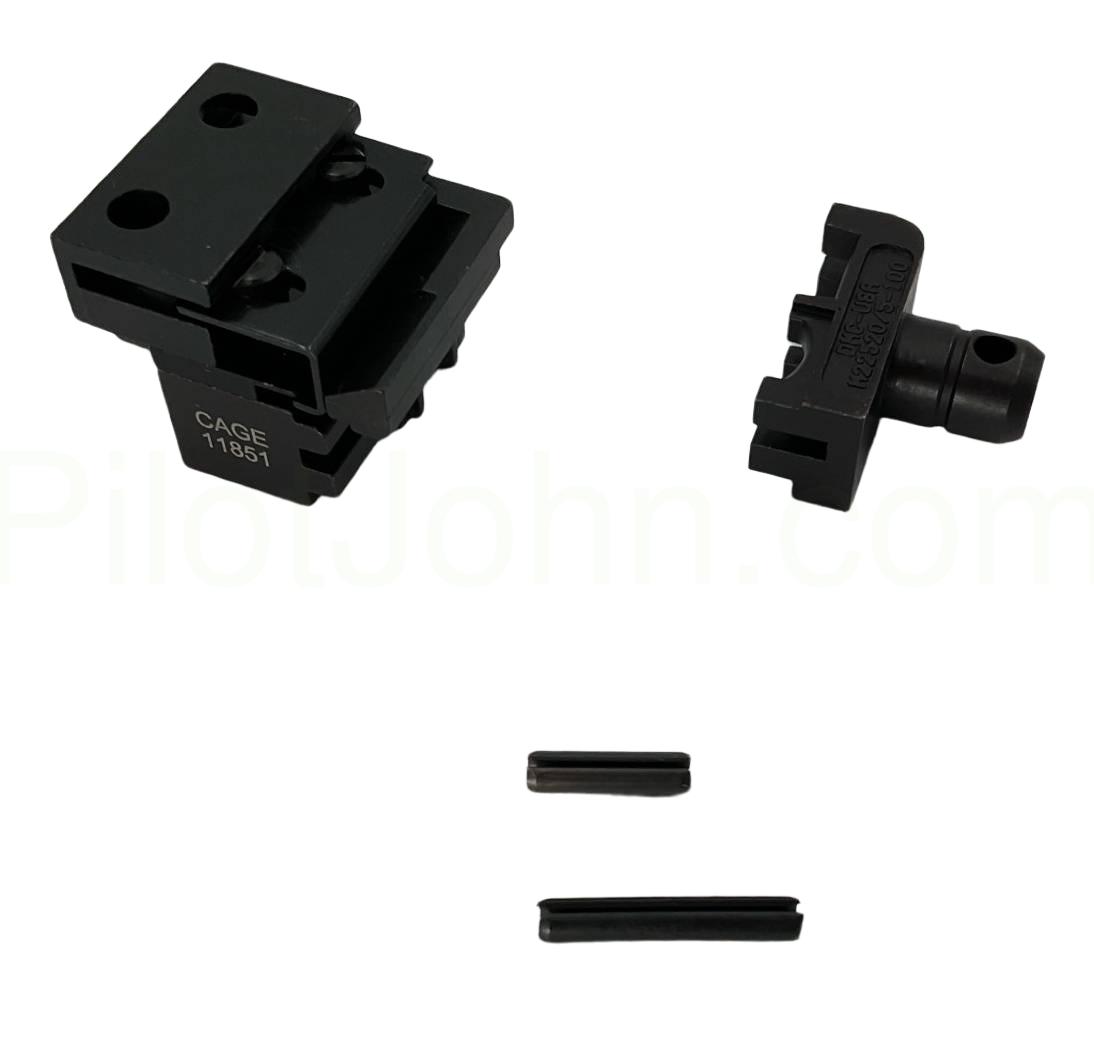

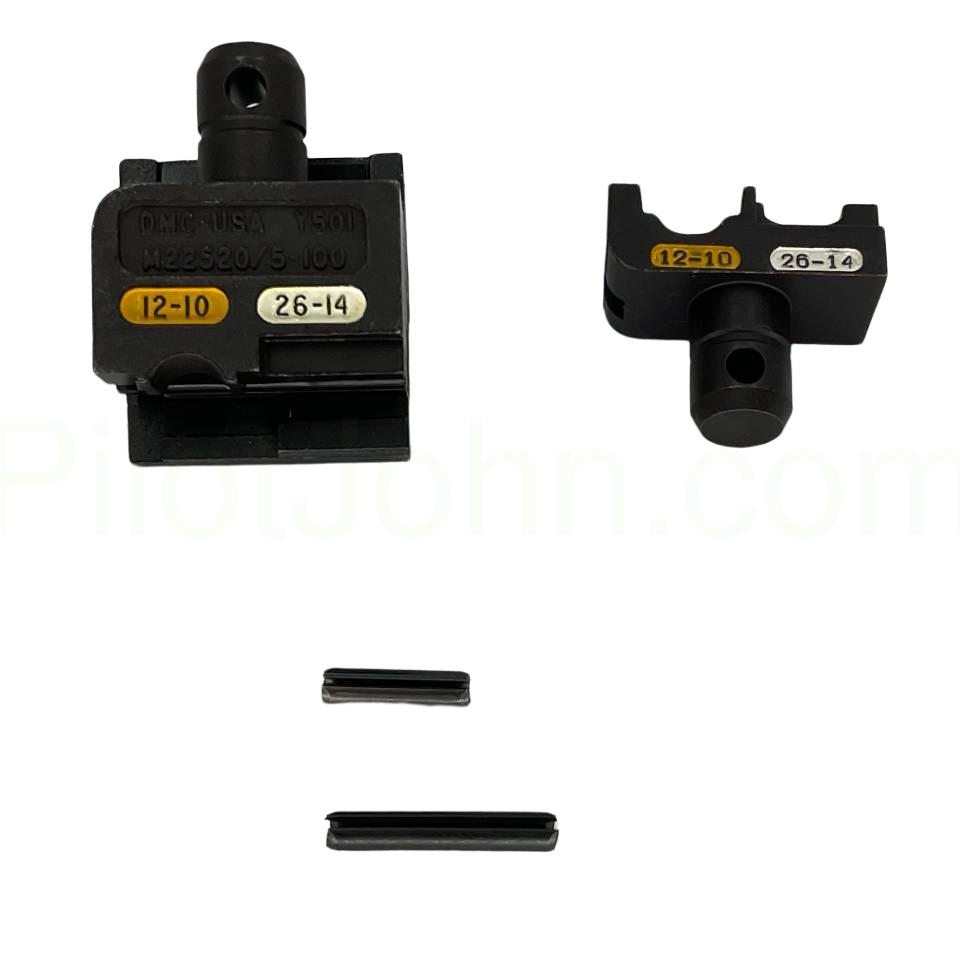

DMC Y501 – M22520/5-100 Die Set

Part Number: Y501
Standard: M22520/5-100
Brand: DMC (Daniels Manufacturing Corporation)
Category: Crimping Die Sets & Tooling

Engineered for precision, repeatability, and long-lasting performance, the DMC Y501 – M22520/5-100 Die Set is a trusted choice for professional crimping applications in aerospace, military, industrial, and commercial environments. This die set is designed to deliver reliable terminations on electrical contacts, conforming to the exacting performance standards required for M22520 tooling systems.

Built by Daniels Manufacturing Corporation, a global leader in interconnection tooling solutions, the DMC Y501 die set pairs superior manufacturing quality with rigorous dimensional accuracy. Whether you’re working in production, on the assembly floor, or in maintenance and repair operations, this die set ensures consistent, high-integrity crimps that meet or exceed industry expectations.

Key Features & Benefits

• Engineered for Precision: Manufactured to the M22520/5-100 specification for crimp consistency and compliance with industry standards.

• Durable Construction: Built from high-quality materials to withstand repeated use in demanding environments while maintaining dimensional integrity.

• Consistent Performance: Designed to provide reliable, repeatable terminations across large production runs and field service tasks.

• Professional-Grade Quality: Trusted by electrical assemblers, aerospace technicians, and maintenance professionals for critical wiring applications.

• Tooling Compatibility: Specifically engineered for use with DMC M22520 series crimping tools.

Technical Specifications

• Die Set Type: M22520/5-100

• Manufacturer: Daniels Manufacturing Corporation (DMC)

• Application: Crimp termination of electrical contacts

• Compatibility: DMC crimping tools that accept M22520 series die sets

• Condition: New

• Industry Use: Aerospace, Defense, Industrial, Commercial

The DMC Y501 – M22520/5-100 Die Set is an essential addition to any professional crimping toolkit. Its precision-machined design and rugged build ensure dependable performance and quality terminations that help maintain the reliability of electrical systems in critical applications.
