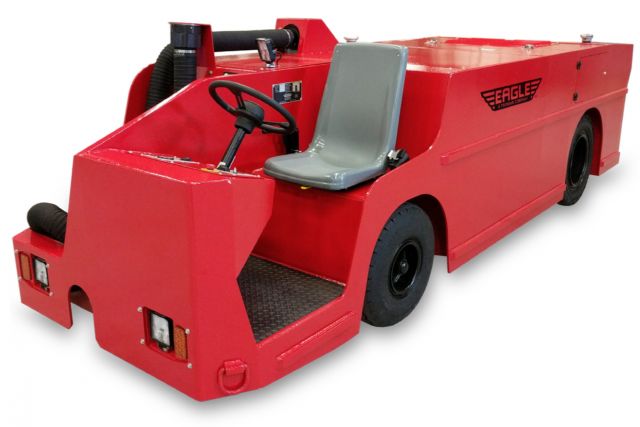

Eagle eLT Electric Lavatory Service Vehicle

Eagle eLT
Manufacturer: Eagle
Part Number: eLT
Condition: New
Warranty: 3 Year / 3,000 Operating Hours - View Details

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Backup Alarm
Turn Signals
Onboard Charging Capability
Tank Heater
Stainless Tanks - Unit comes standard with Poly Tanks
Heated Soft Side Cab
Where would you like the waste port to empty the unit?
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Customers who viewed this item also viewed:
Tier4 Diesel - AWD - 16,000 lbs DBP - 23,000 lbs Service Weight
Electric Lavatory Cart - 136 Gallon Dump / 68 Gallon Fill
12,000 lbs DBP - Diesel AWD Standard
Potable Water 100 Gallon (Ce) - Electric Fill Pump - No Heater
Tow up to 100,000 lbs
Eagle Electric Aircraft Lavatory Cart - eLT

Eagle is proud to introduce the new Eagle eLT electric lavatory service vehicle. Powered by an environmentally-friendly 80V A/C electric drive, the eLT allows you to service the fresh water or lavatory for regional aircraft from the ground. With an overall capacity of 300 gallons (200 waste/100 fresh water) and front or rear dump operations, the eLT can safely accommodate a variety of operations.

The eLT combines a low profile design with an ergonomic front operator compartment to make aircraft service easy and efficient. Regenerative braking ensures that slowing the unit is controlled and safe. This unit is simple to maintain with 10” easy access ports on both tanks and direct access to the batteries and motor. An optional heated cab keeps you protected from the elements and storage box option ensures your PPE is protected as well. The automatic parking brake always engages upon stopping to maintain overall safety during operation.

Features

  • 3 year/3,000 hour warranty
  • Zero-emission 80V AC electric drive
  • 300 gallon total capacity poly tanks
  • Regenerative braking
  • Four wheel disc brakes
  • Power steering
  • Digital display with diagnostics Front or rear dump configuration
  • 4" aircraft connections

Specifications

  • Drive Wheels: 2 Rear
  • Gross Vehicle Weight (full): 11,820 lbs (5,361.5 kg)
  • Length (Front Dump Version): 182 in (4,623 mm)
  • Length (Rear Dump Version): 196 in (4,978 mm)
  • Width: 57.5 in (1,460 mm)
  • Height: 54 in (1,370 mm)
  • Height w/Cab: 73 in (1,858 mm)
  • Wheelbase: 94.25 in (2,394 mm)
  • Tires (front/rear): 650 X 10 - 12 ply pneumatic / 8.5 X 15 - 14 ply pneumatic
  • Turn Radius: 200 in (5,080 mm)
  • Ground Clearance: 4.5 in (114 mm)
  • Waste Tank Capacity : 200 gal (757 L)
  • Water Tank Capacity: 100 gal (379 L)
  • Water Tank Pump: 4.5 GPM 12V Water Pump
  • Frame: 1/4" to 5/8” ASTM A572 GR 50 plate and 4 x 2 x 1/4 wall ASTM A500 Rectangular Tubing
  • Suspension: Leaf Spring
  • Max Speed: 15 mph (24 kph)
  • Steering: Continuous Duty 7 kW AC Hydraulic Pump Motor
  • Primary Brakes: Regenerative braking
  • Supplemental Brakes: Disc brakes
  • Parking Brakes: Spring Applied Hydraulically Released (SAHR)

Power Train - 80V A/C Electric

  • Traction Motor: Schabmueller - 80V A/C Brushless
  • Output @ 1300 RPM: 40 hp (30 kW) Peak
  • Torque: 300 ft-lbs (407 Nm)
  • Battery Capacity: 500Ah, 80V DC
  • Lighting: 12V LED
  • Instruments: Electronic display showing speed, battery life, hours and diagnostics

Optional Features - Request at time of quote

  • Heated soft side cab
  • Stainless tanks
  • Tank heaters
  • Onboard charging Turn signals
  • Backup alarm
Alternate Models
ELT-RElectric Lav Cart - With Rear Waste Port
Compatible Aircraft*
ATR42, 72
AdamA500, A700
Aermacchi AleniaC27J, G-222
AerospatialeNord 262
AgustaA109A, A109C, A109E, A109S, AW139 (AB139), Mark II
AirbusA300, A310, A318, A319, A320, A321, A330-200, A330-300, A340-200, A340-300, A340-500, A340-600, A350, A380
Airbus Military (CASA)212-100, 212-200, A330-MRTT, A400M, C-295, CN-235/HC-144A
BAe146-100, -200, -300/Avro RJ70, RJ85, RJ100, ATP, BAC I-II, HS-748, Jetstream 31, Jetstream 41, RJ70, RJ85
Bell204, 205, 206B3, 206L4, 206LT, 212, 214, 214ST, 222, 230, 407, 407GX, 412, 427, 429, 430, 505, 525, CH-139, OH-58, TH-67, UH-1, UH-1H
Boeing234 Chinook, 707, 717, 727-100, 727-200, 737-100, 737-200, 737-300, 737-400, 737-500, 737-600, 737-700, 737-800, 737-900, 737-BBJ, 737-BBJ2, 747, 747-8, 757, 767, 777, 787, Apache AH-64, CH47, MH47 Chinook, DC-8 Series 60, DC-9 Series 10, DC-9 Series 20, DC-9 Series 30, DC-9 Series 33, DC-9 Series 40, DC-9 Series 50, KC-46, MD-80, P-8 Poseidon
Bombardier (Business)C-21, Challenger 300, Challenger 350, Challenger 600, Challenger 601, Challenger 604, Challenger 605 (CL605), Challenger 650, Challenger 850, Challenger 870, Challenger 890, CL-215, CL-215T, CL-415, Global 5000, Global 6000, Global 7000, Global 8000, Global Express, Global Express XRS, Learjet 23, Learjet 24, Learjet 25, Learjet 31, Learjet 31A, Learjet 35, Learjet 45, Learjet 55, Learjet 60, Learjet 70, Learjet 75, Learjet 85
Bombardier (Regional)Challenger 870, Challenger 890, CRJ100, CRJ1000, CRJ200, CRJ700, CRJ705, CRJ900, CS100, CS300, Dash 6 (Twin Otter UV-18A), Dash 7, Dash 8-100, Dash 8-200, Dash 8-300, Dash 8-400
Britten NormanIslander/Trislander
Cessna150, 152, 172, 177, 180, 182, 185, 206, 207, 210, 310, 320, 337 Skymaster, 340, 401, 402, 404, 411, 414, 414A, 421, 421C, Bravo, Caravan 208, Caravan 208B, Caravan 406, Citation 560 XL, Citation 560 XLS, Citation 650, Citation CJ1, Citation CJ2, Citation CJ3, Citation CJ4, Citation Encore 560, Citation I 500, Citation I/SP 501, Citation II 550, Citation III, Citation IV, Citation Longitude 700, Citation M2, Citation SII, Citation Sovereign 680, Citation Ultra 560, Citation V, Citation VI, Citation VII, Citation X 750, Latitude 680A, Mustang 510
DassaultFalcon 10-100, Falcon 20-200, Falcon 2000, Falcon 2000EX, Falcon 50, Falcon 50EX, Falcon 7X, Falcon 8X, Falcon 900, Falcon 900EX
Diamond AircraftDA20-A1, DA20-C1, DA40 Diamond Star
Eclipse500
EmbraerEMB-110, EMB-120, ERJ-135, ERJ-140, ERJ-145, ERJ-170, ERJ-175, ERJ-190, ERJ-195, ERJ-340, KC-390, Legacy 450, Legacy 500, Legacy 600, Legacy 650, Lineage 1000, Phenom 100, Phenom 300
EurocopterAS330 Puma, AS332 Super Puma, AS350 A-Star (High Skid Gear), AS350 A-Star (Low Skid Gear), AS355 Twin Star, AS365N Dauphin, AS532 Cougar, BK-117, BO-105, EC155, H135 (EC135), H145 (EC145), H175 (EC175), H225 (EC225 Super Puma MKII+), H225M (EC725 Super Cougar), HH-65A Dolphin, UH-72A Lakota
EurofighterTyphoon
Fairchild/DornierDornier 228-100/200, Dornier DO328, Dornier DO328 Jet, Envoy 3, Merlin II, Metro Merlin III, Metro Merlin IV
Fokker100, 27, 28, 50, 70
General AtomicsP46 Avenger, Predator B, Predator C
General DynamicsConvair 580, Convair 600, Convair 640
GrobG120A, G120TP
GulfstreamAero Commander, G100 (Astra SPX), G150, G200 (Galaxy), G280, G350, G450, G500, G550, G650, I, II, III, IV, IVSP, Turbo Commander, V, VSP
Hawker BeechcraftBeech 1900, Beech 99, Beech Baron, Beech Bonanza, Beechjet 400A, C-12, Diamond, Duke 60, Hawker 1000, Hawker 4000 (Horizon), HS-125 400 Series, HS-125 800 / 850 / 900 Series, King Air, Premier, Queen Air, T-1 Jayhawk, T-400, T-6A Texan II, U-21 A/G
HondaJetHA-420 HondaJet
IAIAstra, Westwind 1, Westwind 2
KAIKT-1, KUH
LockheedA-10, C-130, F-16, Jetstar C-140, Joint Strike Fighter, L-1011, T-33
McDonnell DouglasDC-10, DC-8 Series 60, DC-9 Series 10, DC-9 Series 20, DC-9 Series 30, DC-9 Series 33, DC-9 Series 40, DC-9 Series 50, F-14 Tomcar, F-4 Phantom, F/A-18 Hornet, MD-11, MD-80
MitsubishiMU-2 Marquise, MU-2 Solitaire
MooneyAll
NihonYS-11
NomadNomad
NorthropE2C Hawkeye, Firebird, T-38
PiaggioP-180 Avanti
PilatusPC-12, PC-24, PC-9
PiperAerostar, Aztec, Cherokee, Cheyenne II, Cheyenne III, Chieftan, Comanche, Navajo, Seneca
Russian HelicopterMi-17
Saab2000, 340
Sabreliner40 Series, 60 Series, 70 Series
Shorts330, 360
SikorskyCH-148, H-92 Superhawk, MH-60R, SH-60B/F, HH-60H, HH-60J, S-70B, S-70i, S-61, S-65 (CH53, HH53, MH53, Sea Stallion), S-76 (AUH-76), S-92, UH-60 Black Hawk, MH-60S Seahawk
Sino SwearingenSJ30-2
SukhoiSJ100
*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
