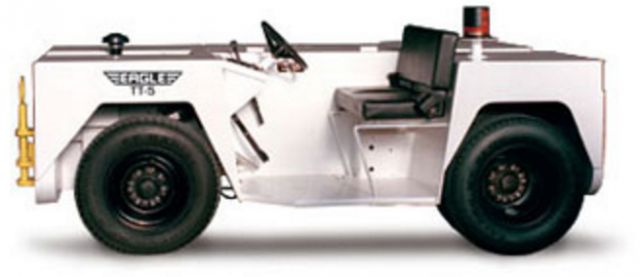

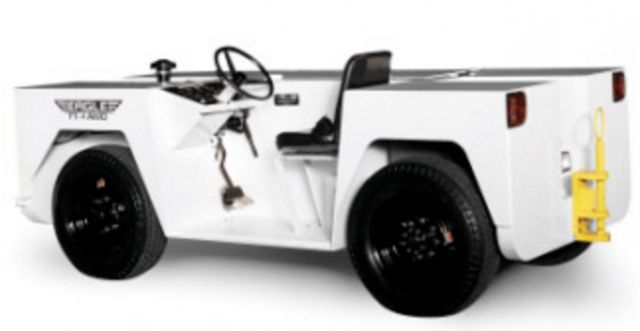

Eagle TT-5 Aircraft Tug (Tractor) - 5,000 lbs DBP

The Eagle TT-5 is designed specifically for corporate and military aircraft with it's low profile and compact design. All-Wheel Drive (AWD - optional), hitch site tunnels, and power steering and braking make this tug the best overall aircraft tug in it's weight class. The TT series of aircraft tugs are also capable of moving in all weather conditions.

TT Series Highlights

• OPTIONAL All Wheel Drive power train, providing safe, controlled traction on all surface conditions.
• Ergonomic operator compartment, low-profile design and mirror-less hitch visibility allow operators to safely and efficiently handle aircraft.
• Designed with carefully matched components, resulting in minimal or no unscheduled maintenance or repair, and is backed by an industry leading 3-year/3,000-hour warranty.
• Unparalleled reliability and factory-direct service and support is the Eagle Tugs advantage.
• Eagle Tugs has over 40 years of experience designing, building and supporting reliable tow tractors.

Standard Features for TT-5

• Low profile
• Hitch sight tunnels
• Power steering & braking
• Front & Rear brakes
• Side & top engine access
• Choice of gas, diesel, & LPG
• Low oil/high temp shutdown system

Highlights

The ergonomic side operator entry and power steering allow for smooth and safe operation.

The TT-4 has brakes on all four (4) wheels, and front disc brakes provide a greater degree of control and safety when handling aircraft.

The operator friendly top and side engine compartment access makes for easier, timely scheduled maintenance.

The front and rear sight tunnels allow operators to view towbars without the use of mirrors, providing safer and more efficient operations.

Recommended Options

• All Wheel Drive
• Front & Rear E-hitch
• Limited slip differential
• Custom paint scheme
• 2,000 hour PM kit

TT Series Safe Handling / Towing Chart

TT-5 AWD Specifications

• Drive Wheels: 2 Front / 2 Rear
• Drawbar Pull: 5,000 lbf / 22.2 kN
• *Max Tow (Dry - 1% Grade): 70,000 lbs / 31,752 kgs
• *Max Tow (Wet - 1% Grade): 65,000 lbs / 29,484 kgs
• *Max Tow (Snow - 1% Grade): 40,000 lbs / 18,144 kgs
• Service Weight Gas/LP: 7,000 lbs / 3,175 kgs
• Service Weight Diesel: 7,200 lbs / 3,266 kgs
• Optional Cab - Add: 500 lbs / 227 kgs
• Length: 116 in / 2,946 mm
• Width: 54 in / 1,372 mm
• Width (dual rear tires): 72 in / 1,829 mm
• Height: 40 in / 1,016 mm
• Height w/ cab (option): 71 in / 1,803 mm
• Wheelbase: 75 in / 1,905 mm
• Track: 46 in / 1,168 mm
• Tires (front & rear): 8.00 x 16.5 in - Standard / 225/75R16 - Dual Rear Option
• Step Height: 11.5 in / 228 mm
• Ground Clearance: 9 in / 228 mm
• Frame: 375 in / 9.5 mm thick steel
• Bumper (front/rear): 3 in (75 mm) – 4 in (100 mm) / 3 in (75 mm)
• Suspension: Leaf springs over both axles
• Number of Speeds: 3 forward / 1 reverse with neutral safety switch
• Max Speed Gas/LPG: 15 mph / 24 kph
• Max Speed Diesel: 13 mph / 21 kph
• Steering: Hydraulic power-boosted mechanical: self-centering
• Brakes: Hydraulic, self-adjusting split type with accumulator
• Front Brakes: 12 in (disc)
• Rear Brakes: 12 x 2.5 in (drum)
• Parking Brakes: Orscheln-type mechanical to rear brake drums

* Calculations assume 1% grade. Severity of Grades and Surface Conditions will affect towing capacities. Snow rating assumes the use of cables.

Gas / LPG Engine Option

EPA emissions compliant

• Manufacturer: WisCon
• Model: TM27
• Rated Output @ 2800 rpm: 80 HP / 60 kW
• Torque @ 2800 rpm: 162 ft lbs / 220 Nm
• Cylinders - Displacement: 4 Cylinder / 2.7 L
• Fuel Tank: 13 gallons / 60 liters
• Air Cleaner: Severe environment, heavy duty, dry replacement element
• System: 12 Volt
• Alternator: 65 amp
• Battery (cold crank): 650 amp
• Ignition: Keyed with anti-restart switch
• Lights: Halogen headlights / combination brake, tail and back-up at rear-all recessed
• Instruments: Dual-unit digital back-lit display offering engine diagnostics and full instrumentation

Diesel Engine Option EPA emissions compliant

• Manufacturer: Yanmar
• Model: 4TNV98 Direct Injection
• Rated Output @ 2800 rpm: 68 HP / 51 kW
• Torque @ 2800 rpm: 186 ft lbs / 252 Nm
• Cylinders - Displacement: 4 Cylinder / 3.3 L
• Fuel Tank: 13 gallons / 49 liters
• Air Cleaner: Severe environment, heavy duty, dry replacement element
• System: 12 Volt
• Alternator: 80 amp
• Battery (cold crank): 650 amp
• Ignition: Keyed with anti-restart switch
• Lights: Halogen headlights / combination brake, tail and back-up at rear-all recessed
• Instruments: Dual-unit digital back-lit display offering engine diagnostics and full instrumentation
