Eagle XL-30 Commercial Aircraft Tug - 26,000 lbs DBP - 32,000 lbs Service Weight

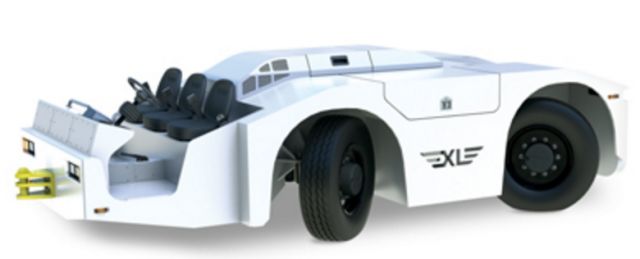

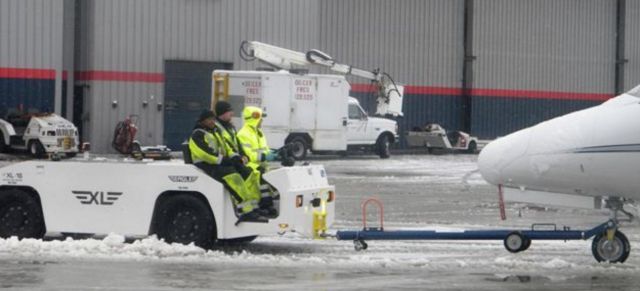

The Eagle XL-30 is in the largest series of Eagle aircraft tugs. The XL-30 features four wheel drive, four wheel steer power train, and offers superior functionality for moving all "single-aisle" aircraft in all weather conditions. The XL-30 is front operated which can accommodate an operator and up to 2 passengers.

The XL-30 is is powered by a T4i diesel engine for use with ultra-low sulfur diesel fuel (ULSD). It is also available with a T3 diesel engine where only high-sulfur diesel fuel is available.

The XL-30 is loaded with standard features to help you meet all of your aircraft handling requires and needs.

XL Series Highlights

• Four Wheel Drive power train, providing safe, controlled traction on all surface conditions.
• Standard switchable-steering between Four Wheel and Crab Steering for superior maneuverability of and around aircraft.
• Several safety features designed in to the XL Series to ensure safe operation.
• Powered by either T4i or T3 diesel engines to meet your fuel availability.
• Ergonomic front-operator compartment that accommodates up to 3 people.
• Low-profile design that allows operators to safely and efficiently handle aircraft.
• Designed with carefully matched components, resulting in minimal or no unscheduled maintenance or repair, and is backed by an industry-leading 3-yr/3,000-hr warranty.
• Unparalleled reliability and factory-direct service and support is the Eagle Tugs advantage.
• Eagle Tugs has over 40 years of experience designing, building and supporting reliable tow tractors

Standard Features for XL-30

• Four Wheel Drive
• Four Wheel or Crab Steering
• Three-person Seating
• Front and Rear Wet-disc Brakes
• Low Oil/High Temp Protection System
• Low Coolant Protection System
• "Hot Shift" Transmission Protection
• Emergency Stop
• Built-in Marker/Strobe Lights
• 12V Accessory Outlet

Recommended and Available Options

• Custom Paint Scheme

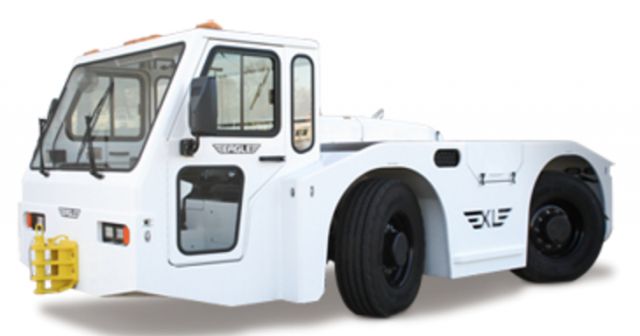

• OPT-XL00-001-A - XL30-40 Standard Cab - L/R Mirror, Wipers, Heater, Defrost Fan & Dome Light
• OPT-XL00-024-A - Air Conditioning System
• AE-OPT-0007-LED - Roof-Mounted LED Strobe (Amber)
• OPT-ET00-002-A - Spotlight (LED) - Vertical Adj. Only - Front OR Rear Hitch Illumination
• OPT-Xl00-015-A - Front Hitch Mirror
• OPT-XL00-016-A - Rear Hitch Mirror
• OPT-TT00-001-A - Heavy-duty Stainless Steel Chock Basket - 19" X 19" X 4.25"
• OPT-XL00-004-A - Airline Hitch w/ 2.88" PIN - Single Level
• OPT-XL00-002-B - XL PVC Decking Kit, Black

XL-30 Specifications

• Drive Wheels: 2 Front / 2 Rear
• Drawbar Pull: 26,000 lbf / 116 kN

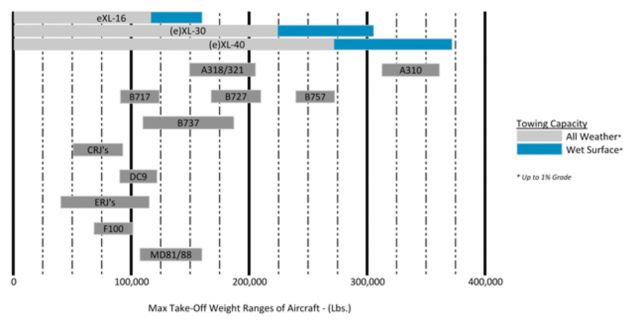

• Towing Capacity*: 300,000 lbs / 136,078 kgs
• Service Weight: 32,000 lbs / 14,5 kgs
• Optional Cab - Add: 850 lbs / 386 kgs
• Length: 201 in / 5,105 mm
• Width: 99 in / 2,515 mm
• Height (deck): 52 in / 1,321 mm
• Height w/ cab (option): 84 in / 2,134 mm
• Wheelbase: 91 in / 2,311 mm
• Track: 83 in / 2,108 mm
• Tires (front & rear): 315/80R22.5
• Step Height: 21 in / 533 mm
• Ground Clearance: 9 in / 228 mm
• Frame: A36 steel: 2 in / 51 mm
• Bumper (front/rear): A36 steel: 1.5 in / 38 mm (front); 4 in / 101.6 mm (rear)
• Suspension: Rigid (front); Trunnion (rear)
• Number of Speeds: 3 forward / 3 reverse
• Max Speed: 19 mph / 30 kph
• Steering: Hydraulic 4-wheel coordinated
• Brakes: Wet Disc (front & rear)
• Parking Brakes: Mechanical Dry Disc (rear axle)

* Normal Operating Conditions - Wet, 1% grade.

Diesel Engine

EPA emissions compliant

• Manufacturer: Deutz
• Model: TCD 3.6L Interim Tier4
• Rated Output @ 2800 rpm: 120 HP / 89 kW
• Torque @ 2800 rpm: 354 ft lbs / 480 Nm
• Cylinders - Displacement: 4 Cylinder / 3.6 L
• Fuel Tank: 30 gallons / 114 liters
• Air Cleaner: Severe environment, heavy duty, dry replacement element
• System: 12 Volt
• Alternator: 95 amp
• Battery (cold crank): Dual 650 amp
• Ignition: Keyed with anti-restart
• Lights: 12V LED Long Life
• Instruments: Dual-unit digital back-lit display offering engine diagnostics and full instrumentation

*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
