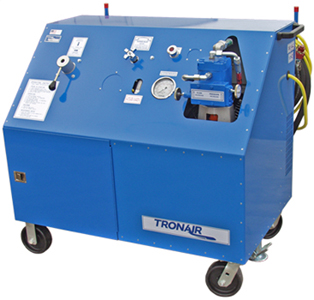

This Tronair Hydraulic Power Unit (Series 5120) uses MIL-PRF-83282 fluid with an output of 6 gallons per minute. Quick Disconnects are available as an option for each particular aircraft (if needed).
Standard Features:
- 6 gpm (22.7 lpm) pressure compensated pump with adjustable flow and pressure controls
- Certified pressure gauge
- 0-10 gpm (0-38 lpm) dual scale flowmeter
- 2.4 gpm (9 lpm) flow at rated pressure
- Bypass valve
- Reservoir selector valve
- 2 micron absolute non-bypass pressure filter (Beta rating > 2,000 based on ISO 4572)
- #8 pressure and #16 return hoses (PE), or #12 return hose (MB), 15 ft (4.5 m) long with 37° JIC swivel connectors
- Standard 50 ft. (15.2 m) input power cord
- Heavy duty 3 phase motor
- Heavy duty starter with overload protection and external manual reset button
- Sturdy welded steel frame with 16 gauge sheet metal cabinet
- Fluid sample valve
- Operating instruction located on instrument panel
- Two (2) fixed and two (2) swivel casters for easy maneuvering
- Stainless steel 13 gal (49 l) reservoir
- Heat exchanger with electric fan
- Illuminated On/Off switch
- Front access door panel for ease of maintenance
- Available Options: A, C, D, F, K, M, T, W
- Finish: Durable Powder Coat Tronair Blue
| Alternate Models | |
|---|---|
| 51200AC7FW | 5 - HPU 1 - 6 GPM / 3000 PSI / 5 HP 2 - MIL-PRF-83282 0 - Standard 1 - Tronair Blue AC - KHC-1006 Couplers 7 - 380V 3 PH 50 HZ Input Voltage Required / 50' AC Input Cable Included F - Hourmeter W - Return Filter Standard Features: 15 ft Hoses Single System 10 Gallon Reservoir |
| 51201AA1 | 1 - Tronair Blue AA - KHC-1004 Couplers 1 - 220-240V 3 PH 60 HZ Input Voltage Required / 50' AC Input Cable Included |
| 51201AA3 | 1 - Tronair Blue AA - KHC-1004 Couplers 3 - 440-480V 3 PH 60 HZ Input Voltage Required / 50' AC Input Cable Included |
| 51201AC7FK | AC - KHC-1006 Couplers 7 - 380-400V 3 PH 50 HZ Input Voltage Required / 50' AC Input Cable Included F - Hourmeter K - Pyrometer |
| 51201ZZ1 | 5 - HPU 1 - 6 GPM / 3000 PSI / 5 HP 2 - MIL-PRF-83282 0 - Standard 1 - Tronair Blue ZZ - No Aircraft Couplers 1 - 220-240V 3 PH 60 HZ Input Voltage Required / 50' AC Input Cable Included Standard Features: 15 ft Hoses |
| 51202AB1AF | 5 - HPU 1 - 6 GPM / 3000 PSI / 5 HP 2 - MIL-PRF-83282 0 - Non-CE Compliant 2 - Safety Yellow AB - KHC-1005 Aircraft Coupler 1 - 220-240V 3 PH 60 Hz Input Voltage Required / 50’ AC Input Cable Included A - 25 ft. Hoses F - Hour Meter (60 Hz) Standard Features: 25 ft Hoses Single System 50 ft Input Cable (Only) 10 Gallon Reservoir |
| General Information | |
|---|---|
| Part # | 5120 |
| Manufacturer | Tronair |
| Specifications | |
|---|---|
| Fluid | MIL-PRF-83282 |
| Gauge Max | 5000 (345) psi (bar) |
| Height | 44 (111) in (cm) |
| Length | 45 (114) in (cm) |
| Motor | 5 (3.7) hp (kW) |
| Pressure Max | 3000 (207) psi (bar) |
| Weight | 501 (227) lb (kg) |
| Width | 33 (84) in (cm) |
| Accessories/Kits/Adapters | |
|---|---|
| H-1339 | Protective Cover |
| K-3590 | Unit self servicing kit (MB) |
| K-3591 | Unit self servicing kit (PE) |
Customers also viewed
6 GPM, 1800 PSI, 3 HP
6 GPM, 3000 PSI, 5 HP
10 GPM (60 Hz), 8.3 GPM (50 Hz), 750 to 3000 PSI, 15 HP
15 GPM, 3500 PSI, 25 HP
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Agusta | AW09 |
| Eurocopter | HH-65A Dolphin |
| Fairchild/Dornier | Metro Merlin III , Metro Merlin IV |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
PRODUCT REVIEWS
5/5
by Happy, a Military Operation in Florida
06/17/2020 12:09:36 PM
It is performing very well. Just as expected! It is always a pleasure doing business with CGSE. They always deliver. They have the best prices for Tronair products.
5/5
by LT from Swiss Devco in San Diego
12/10/2019 12:57:05 PM
Excellent product, excellent service from the vendor. Product arrived on time as promised with all paperwork requested and was turned around same day to my customer who appreciated the vendor agility.
QUESTIONS & ANSWERS
Question:
Can we put a 100' input cable on this unit?
Answer:
No. The engineers at Tronair have confirmed that the 5120 HPU will not have 100' cords available as an option.
Asked May 14, 2024
Question:
Is this unit CE marked?
Answer:
No, the 5120 HPU is not CE marked.
Asked May 15, 2024
Question:
What options are available to add to this unit?
Answer:
Available options for the 5120 Series HPU include:
- 25' Hoses (Option A)
- Split System (Option C)
- Split System with Crossover Check (Option D)
- Hourmeter (Option F – 50 Hz and 60 Hz)
- Pyrometer (Option K)
- Hand Pump (Option M)
- Return Back-Pressure with Sight Gauge (Option T – Skydrol Only)
- Return Filter (Option W)
Asked August 8, 2024
Question:
What voltages can this unit can be set for?
Answer:
Tronair 5120 Series HPUs can be set for 200V to 460V 3-phase input voltage at either 50 or 60 Hz. Since these units are custom-built, this information is required upfront to complete them.
Asked August 8, 2024
Question:
What are the replacement filters for this unit?
Answer:
Question:
What are the replacement hoses for this unit?
Answer:
The pressure hose for the 5120 Series HPU is TF-1037-01*180, and the return hose is TF-1039-01*180.
Asked August 9, 2024
