Eagle XL-40 Commercial Aircraft Tug - 26,000 lbs DBP - 40,000 lbs Service Weight

Eagle XL-40
Eagle XL-40Eagle XL-40Eagle XL-40
Manufacturer: Eagle
Part Number: XL-40
Condition: New
Warranty: 3 Year / 3,000 Operating Hours - View Details

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Or Instead of buying this item new, do you...
Customers who viewed this item also viewed:
Tier4 Diesel - AWD - 16,000 lbs DBP - 32,000 lbs Service Weight
Tow up to 100,000 lbs
10,000 lbs DBP - Diesel AWD Standard
Diesel - AWD & AWS - 26,000 lbs DBP - 32,000 lbs Service Weight
Tier4 Diesel - AWD - 16,000 lbs DBP - 23,000 lbs Service Weight
Eagle Tugs

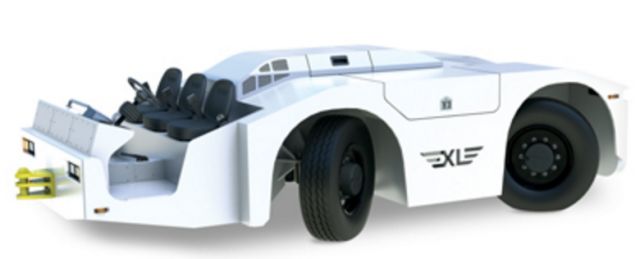

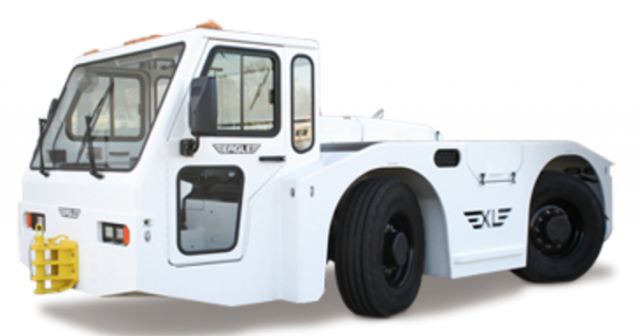

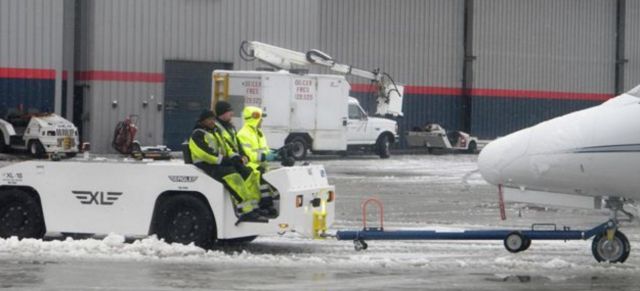

The Eagle XL-40 is in the largest series of Eagle aircraft tugs. The XL-40 features four wheel drive, four wheel steer power train, and offers superior functionality for moving all "single-aisle" aircraft in all weather conditions. It is front operated which can accommodate an operator and up to 2 passengers.

The XL-40 is is powered by a T4i diesel engine for use with ultra-low sulfur diesel fuel (ULSD). It is also available with a T3 diesel engine where only high-sulfur diesel fuel is available.

This commercial aircraft tug is loaded with standard features to help you meet all of your aircraft handling requires and needs.

XL Series Highlights
  • Up to 40,000 lbs. GVW to handle aircraft up to a B757 in all weather conditions.
  • Four Wheel Drive power train, providing safe, controlled traction on all surface conditions.
  • Standard switchable-steering between Four Wheel and Crab Steering for superior maneuverability of and around aircraft.
  • Several safety features designed in to the XL Series to ensure safe operation.
  • Powered by either T4i or T3 diesel engines to meet your fuel availability.
  • Ergonomic front-operator compartment that accommodates up to 3 people.
  • Low-profile design that allows operators to safely and efficiently handle aircraft.
  • Designed with carefully matched components, resulting in minimal or no unscheduled maintenance or repair, and is backed by an industry-leading 3-yr/3,000-hr warranty.
  • Unparalleled reliability and factory-direct service and support is the Eagle Tugs advantage.
  • Eagle Tugs has over 40 years of experience designing, building and supporting reliable tow tractors

Standard Features for XL-40

  • Four Wheel Drive
  • Four Wheel or Crab Steering
  • Three-person Seating
  • Front and Rear Wet-disc Brakes
  • Low Oil/High Temp Protection System
  • Low Coolant Protection System
  • "Hot Shift" Transmission Protection
  • Emergency Stop
  • Built-in Marker/Strobe Lights
  • 12V Accessory Outlet

Recommended Options

  • Front and Rear Multi-level Hitch
  • Custom Paint Scheme

XL-40 Specifications

  • Drive Wheels: 2 Front / 2 Rear
  • Drawbar Pull: 26,000 lbf / 116 kN

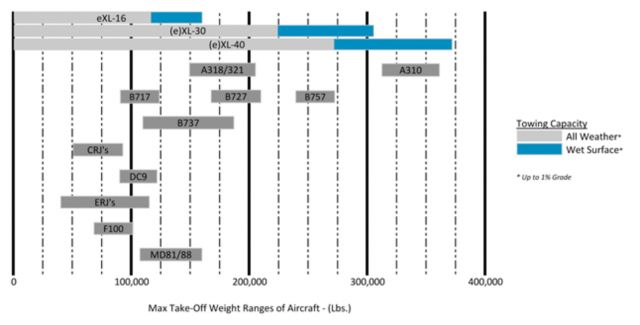

  • Towing Capacity*: 360,000 lbs / 163,293 kgs
  • Service Weight: 40,000 lbs / 18,144 kgs
  • Optional Cab - Add: 850 lbs / 386 kgs
  • Length: 201 in / 5,105 mm
  • Width: 99 in / 2,515 mm
  • Height (deck): 52 in / 1,321 mm
  • Height w/ cab (option): 84 in / 2,134 mm
  • Wheelbase: 91 in / 2,311 mm
  • Track: 83 in / 2,108 mm
  • Tires (front & rear): 315/80R22.5
  • Step Height: 21 in / 533 mm
  • Ground Clearance: 9 in / 228 mm
  • Frame: A36 steel: 2 in / 51 mm
  • Bumper (front/rear): A36 steel: 1.5 in / 38 mm (front); 4 in / 101.6 mm (rear)
  • Suspension: Rigid (front); Trunnion (rear)
  • Number of Speeds: 3 forward / 3 reverse
  • Max Speed: 19 mph / 30 kph
  • Steering: Hydraulic 4-wheel coordinated
  • Brakes: Wet Disc (front & rear)
  • Parking Brakes: Mechanical Dry Disc (rear axle)
* Normal Operating Conditions - Wet, 1% grade.

Diesel Engine

EPA emissions compliant
  • Manufacturer: Deutz
  • Model: TCD 3.6L Interim Tier4
  • Rated Output @ 2800 rpm: 120 HP / 89 kW
  • Torque @ 2800 rpm: 354 ft lbs / 480 Nm
  • Cylinders - Displacement: 4 Cylinder / 3.6 L
  • Fuel Tank: 30 gallons / 114 liters
  • Air Cleaner: Severe environment, heavy duty, dry replacement element
  • System: 12 Volt
  • Alternator: 95 amp
  • Battery (cold crank): Dual 650 amp
  • Ignition: Keyed with anti-restart
  • Lights: 12V LED Long Life
  • Instruments: Dual-unit digital back-lit display offering engine diagnostics and full instrumentation
Parts

We sell parts for the XL-40 and other items like it at our facility. Not sure exactly what part you need? Just describe it or send us a photo and we will research it for you.

A few of the common parts we offer for this item are:
• Wheels
• Hitches
• Aircraft Towbars / Heads
• Filters
• Lights
Sell or Trade-In

We can purchase your used XL-40 (or similar GSE items like it) and apply it as a credit for new GSE, or buy it outright directly.
