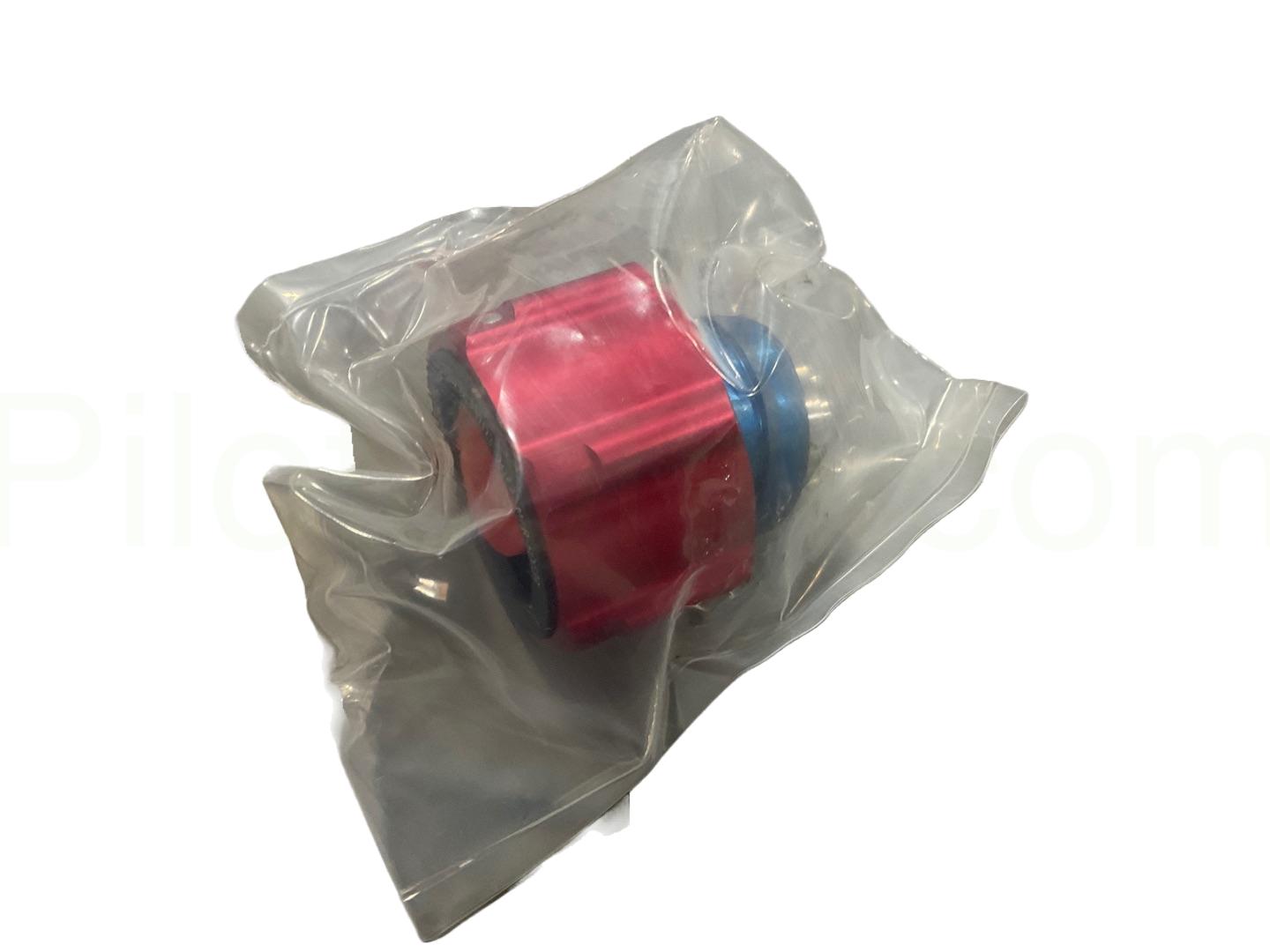

Eaton 155S5-16D - Self-Sealing Half Coupling Size -16
In Stock
Ready to ship today if you order in the next 10 hours and 11 minutes (2pm EST)
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
The Eaton 155S5-16D is a Size -16 hose attaching half coupling from the Aeroquip 145/155 Series of self-sealing hydraulic quick-disconnect couplings. Designed for use with MIL-PRF-5606 and MIL-PRF-83282 hydraulic fluids, this Style I coupling half is rated for 3000 PSI (204 bar) operating pressure and is built to meet the performance requirements of MIL-DTL-25427B. The 155S5-16D features a 1-5/16–12 UNF thread and mates with SAE AS4395 (MS33656) end connections.
Key Features
- Self-sealing design prevents fluid loss and contamination during disconnection, keeping aircraft hydraulic systems clean and operational
- Quick-lead blunt start threads allow hand connection and disconnection with a simple turning motion — no tools required
- Ratchet lock mechanism with unique lock spring assembly provides positive locking under extreme vibration, automatically releasing during disconnection
- Fully interchangeable with all fielded Eaton Aeroquip 145/155 Series couplings and approved to SAE AS5440 for Type II hydraulic system use
- Proven reliability with over 60 years of service history on virtually all U.S. military aircraft platforms
Specifications
- Coupling Size: -16
- Thread Size: 1-5/16–12 UNF
- Operating Pressure: 3000 PSI (204 bar)
- Fluid Compatibility: MIL-PRF-5606 / MIL-PRF-83282
- Coupling Style: Style I — Hose Attaching Half
- Performance Standard: MIL-DTL-25427B
- End Connection Standard: SAE AS4395 (MS33656)
- Operating Temperature Range: -65°F to +275°F
- Approved Standard: SAE AS5440 Type II
Compatible Components
- Bulkhead Mounting Half: TA155S4-16D
- Complete Coupling Assembly: 155-16D
- Dust Cap: 155S7-16D
- Dust Plug: 155S9-16D
| General Information | |
|---|---|
| Part # | 155S5-16D |
| Manufacturer | Eaton |
| Shipping Information | |
|---|---|
| Product Weight | 0.78 lbs. |
| Product Dimensions | 4 x 3 x 3 in. |
| Schedule B | 7307923010 |
| ECCN | EAR99 |
| Specifications | |
|---|---|
| Approved Standard | SAE AS5440 Type II |
| Bulkhead Half | TA155S4-16D |
| CAGE Code | 00624 |
| Compatible Dust Cap | 155S7-16D |
| Compatible Dust Plug | 155S9-16D |
| Coupling Size | -16 |
| Coupling Style | Style I — Hose Attaching Half |
| End Connection | SAE AS4395 (MS33656) |
| Fluid Compatibility | MIL-PRF-5606 / MIL-PRF-83282 |
| Manufacturer | Eaton Aerospace (Aeroquip) |
| Operating Pressure | 3000 PSI (204 bar) |
| Performance Standard | MIL-DTL-25427B |
| Temperature Range | -65°F to +275°F |
| Thread Size | 1-5/16–12 UNF |
