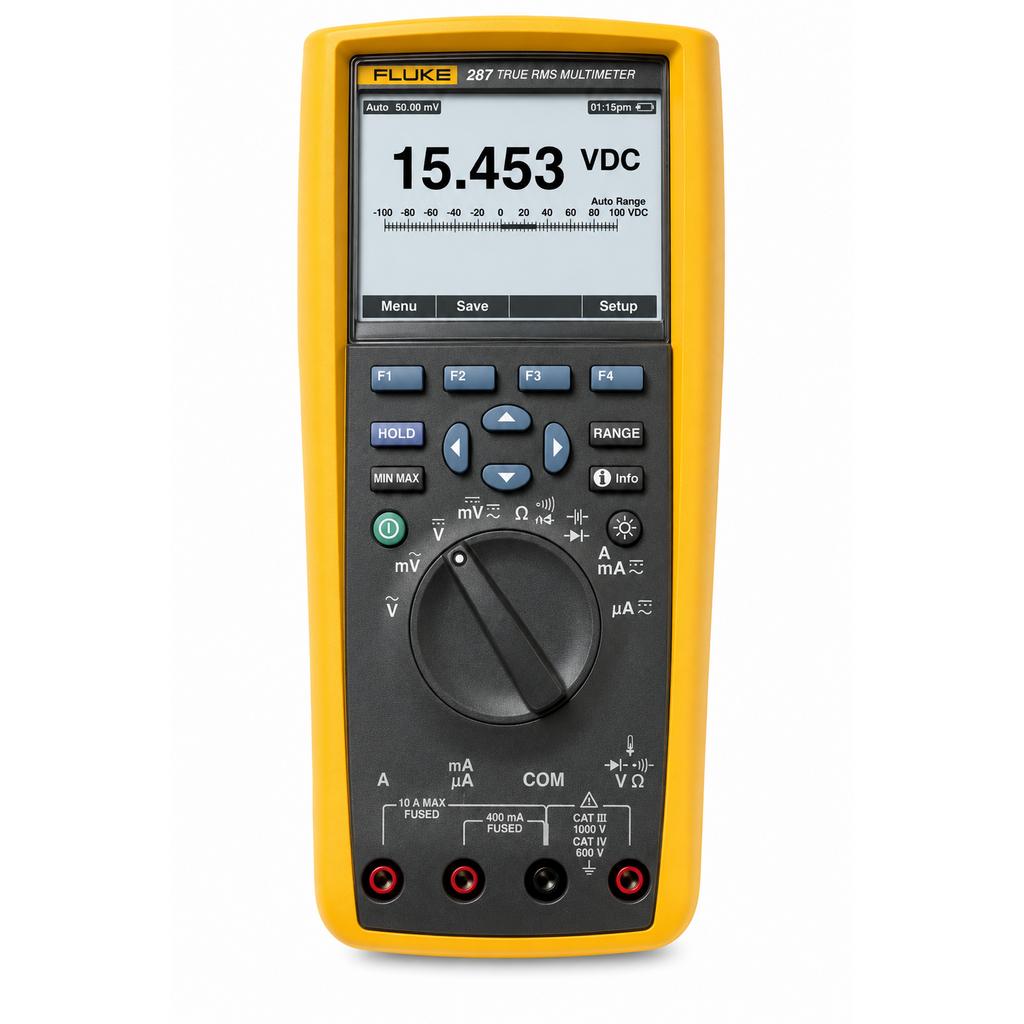

The Fluke 287 True-RMS Electronics Logging Multimeter delivers the same premium50,000-count display, TrendCapture graphical analysis, 15,000-event data logging, and0.025% DC accuracy as the 289, optimized for electronics troubleshooters, R&D engineers,and maintenance technicians working on power electronics, telecommunications equipment, andprecision electronic systems. Without the Fluke Connect wireless option of the 289, the 287focuses purely on precision measurement and on-device data analysis where the technician ispresent and monitoring, making it the right choice when wireless reporting is not needed andmaximum measurement accuracy and display resolution are the priorities.
Key Features
- 50,000-Count Dot-Matrix Display: 4.5-digit resolution shows measurementvalues to 0.002% of full scale, on a 1000V range that's resolution to 0.01V, while on asensitive 600mV range it resolves to 0.01mV. The dot-matrix display also shows the TrendCapturegraph, measurement mode icons, and status information simultaneously.
- TrendCapture Graphical Trending with 14× Zoom: Records a real-time trendgraph of any measurement on the display and allows 14× magnification zoom into any portion ofthe trend history. Electronics technicians use this to observe power supply startup transients,load regulation response, battery charge/discharge curves, and amplifier output behaviorwithout a separate oscilloscope or data acquisition system.
- 15,000-Event Data Logger with Timestamps: Stores measurement events withautomatic real-time clock timestamps and adjustable recording thresholds. Download via opticalIR port to FlukeView Forms software for professional documentation.
- 0.025% DC Accuracy: Precision measurement for voltage regulationverification, reference supply comparison, calibration transfer, and sensitive electroniccircuit characterization where handheld instrument accuracy is a limiting factor.
- LoZ Low-Impedance Mode: Ghost voltage elimination in dense wiringenvironments, essential in data centers and telecommunications facilities where parallelcable runs create capacitively coupled phantom voltages.
- Low-Pass Filter for VFD Measurement: Blocks switching supply noise foraccurate measurement of power electronics output voltages in motor drives and switchingregulators.
- Auto Hold and Display Hold: Freezes readings automatically on stablesignals for single-handed measurement in tight spaces.
Technical Specifications Overview
The 287 measures AC/DC voltage to 1000V with 0.025% DC accuracy, current to 10A, resistanceto 50MΩ with 50Ω low-range milliohm capability, capacitance to 100mF, frequency beyond 1MHz,and temperature to 1350°C. It is electrically equivalent to the 289 with the difference beingwireless connectivity (289 supports Fluke Connect via ir3000 FC; 287 does not). Both sharethe 50,000-count display, TrendCapture with 14× zoom, and 15,000-event logging. The 287 isthe correct selection when the electronics troubleshooting environment doesn't require wirelessreporting to mobile devices or collaboration software.
Electronics & Power Systems Applications
- Switching power supply characterization, output voltage regulation,load response, startup transient, and ripple measurement using TrendCapture
- Battery system monitoring, charge and discharge curve logging withtimestamps for battery capacity verification and degradation tracking
- Power electronics R&D, VFD output waveform voltage measurement withlow-pass filter, converter efficiency calculation, and transient documentation
- Telecommunications equipment diagnostics, precision DC voltage measurementon -48V and +24V telecom bus systems, current draw profiling, and alarm circuit verification
- Precision component measurement, resistor value verification, capacitormeasurement to 100mF, and voltage reference calibration transfer
Fluke 287 Calibration
PJi operates an ISO/IEC 17025 Accredited Calibration Lab and can provide NIST-traceable calibration for the Fluke 287. Our calibration documentation satisfies FAA Part 145 tool control requirements, ISO 9001 quality system documentation, and AS9100 calibration records. For repair stations, MRO facilities, and quality-certified shops that require documented traceability, PJi is the one-stop source: you get the instrument and you can recalibrate it at PJi.
- Calibration documentation satisfies FAA Part 145 tool control, ISO 9001 quality systems, and AS9100 records requirements
- One-stop source for repair stations, MRO facilities, and quality-certified shops – instrument and calibration certificate in a single transaction
- Calibration-only companies can't sell you the instrument. Major retailers can't calibrate it. PJi does both. Learn more about PJi's ISO 17025 Calibration Services
Why Buy from Pilot John International
Pilot John International is an authorized Fluke distributor with specialized expertise serving aviation maintenance, FAA Part 145 repair stations, and industrial MRO facilities. Unlike Amazon, Grainger, or Test Equipment Depot, which sell Fluke instruments but offer zero calibration services, PJi's in-house ISO/IEC 17025 Accredited Calibration Lab calibrates your instrument at purchase. We stock the full Fluke catalog, ship same-business-day on in-stock items, and our technical staff understands the demands of aviation and industrial electrical maintenance.
| General Information | |
|---|---|
| Part # | Fluke-287 |
| Manufacturer | Fluke |
| Shipping Information | |
|---|---|
| Schedule B | 9030310000 |
| ECCN | 3A992 |
| Specifications | |
|---|---|
| AC Voltage Range | 0.1mV to 1000V (True-RMS) |
| AC/DC Current Range | 0.001mA to 10A |
| Capacitance Range | 1nF to 100mF |
| Data Logger | 15,000 events with timestamps |
| DC Voltage Accuracy | ±0.025% + 2 digits |
| DC Voltage Range | 0.1mV to 1000V |
| Display | 50,000 count dot-matrix with white backlight |
| Frequency | 0.5Hz to 1MHz+ |
| Included Accessories | TL71 test leads, AC175 alligator clips, 6 AA batteries |
| Low-Impedance Mode | Yes (LoZ) |
| Low-Pass Filter | Yes (VFD measurement) |
| Model Number | 287 (PJi SKU: Fluke-287) |
| Product Type | True-RMS Electronics Logging Digital Multimeter |
| Resistance Range | 0.001Ω to 50MΩ (50Ω low range) |
| Safety Rating | CAT IV 600V / CAT III 1000V |
| Temperature | -200°C to 1350°C |
| TrendCapture | Yes (14× zoom) |
| Warranty | Limited lifetime |
| Wireless | No (see Fluke-289 for Fluke Connect) |
Customers also viewed
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* |
|---|
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
Yes – the Fluke 287 is now compatible with the Fluke Connect mobile app and the broader Fluke FC-enabled test tool ecosystem when paired with the optional ir3000 FC infrared connector (sold separately). With the adapter attached to the meter's optical port, the 287 can push logged measurements to a smartphone, share live readings via ShareLive video calls with remote engineers, and store data in the Fluke Connect cloud. The 287 doesn't have integrated wireless out of the box, but the ir3000 FC accessory closes most of that gap when needed.
The Fluke 287 carries a limited lifetime warranty from Fluke covering defects in materials and workmanship under normal use – a meaningful step up from the 3-year warranties on the 117, 1587 FC, and 1550C FC. As with any precision instrument, the warranty is separate from calibration, and PJi can provide NIST-traceable ISO/IEC 17025 calibration at the time of purchase to satisfy FAA Part 145, ISO 9001, and AS9100 traceability requirements.
The Fluke 287 runs on six AA alkaline batteries (IEC LR6), readily available at any hardware store or maintenance crib. Battery life is at least 100 hours in normal use and up to 200 hours in logging mode, which is enough to capture multi-day unattended trends without a battery swap mid-session. The battery compartment has a dedicated access door that allows battery replacement without disturbing the instrument's calibration seal – important for regulated maintenance environments.
Yes – the Fluke 287 measures duty cycle from 0.01% to 99.99% and pulse widths from 0.025 ms to 1250 ms across multiple ranges. That makes it well-suited for characterizing PWM signals, gate drive timing, control pulses, and other power-electronics waveforms common in switching supplies, inverter circuits, and motor drives. Combined with the 250 µs Peak Capture, the 287 catches fast transients that a slower meter would miss entirely.
The Fluke 287 has a True-RMS AC bandwidth specified to 100 kHz – significantly higher than the kHz-range bandwidths on most field-service multimeters. The extended bandwidth matters when measuring high-frequency components in switching power supplies, RF detector circuits, audio signals, and the harmonics of distorted waveforms on non-linear loads. For electronics technicians and R&D engineers, that bandwidth is the difference between a useful reading and a meaningless number.
Yes – the Fluke 287 includes dBV/dBm measurement for audio, telecom, and signal-level work, plus conductance measurement to 50 nS for high-resistance leakage and insulation-related diagnostics. Those two functions are uncommon on field-service meters and reflect the 287's positioning as an electronics-grade troubleshooter rather than a general-purpose electrician's meter.
Yes – the Fluke 287 supports multiple logging sessions stored on-board (up to 15,000 events / 10,000 readings depending on configuration), so a technician can capture several trend runs across an inspection or test campaign before downloading anything to a PC. TrendCapture lets you review and zoom into each session directly on the meter's display without any FlukeView Forms intervention along the way.
The Fluke 287 ships with TL71 premium silicone test leads, AC175 alligator clips, six AA batteries (installed), and a quick reference guide. Common add-ons include the ir3000 FC infrared connector for Fluke Connect compatibility, FlukeView Forms software for PC-based logging analysis and professional documentation, and a magnetic hanger for hands-free panel-side viewing. PJi can bundle any of these accessories with calibration at the time of order.
Yes – the Fluke 287 lets you save individual readings with user-defined names directly on the meter, then recall them in the field without uploading to a PC first. Combined with the real-time clock and automatic timestamping, this builds up a quick reference library of known-good readings (motor running current, supply voltage, ripple values) on the meter itself, which is useful for repeat-inspection comparisons during scheduled maintenance cycles.
Yes – the Fluke 287 is tested to MIL-PRF-28800F Class 2 random vibration standards and IEC/EN 61010-1 3rd Edition 1-meter drop testing, placing it in the rugged-instrument category despite its electronics-precision focus. The operating temperature range is -20 °C to 55 °C, which covers most hangar, FBO, and avionics-shop conditions. It is built for bench work first, but holds up on the ramp when needed.
