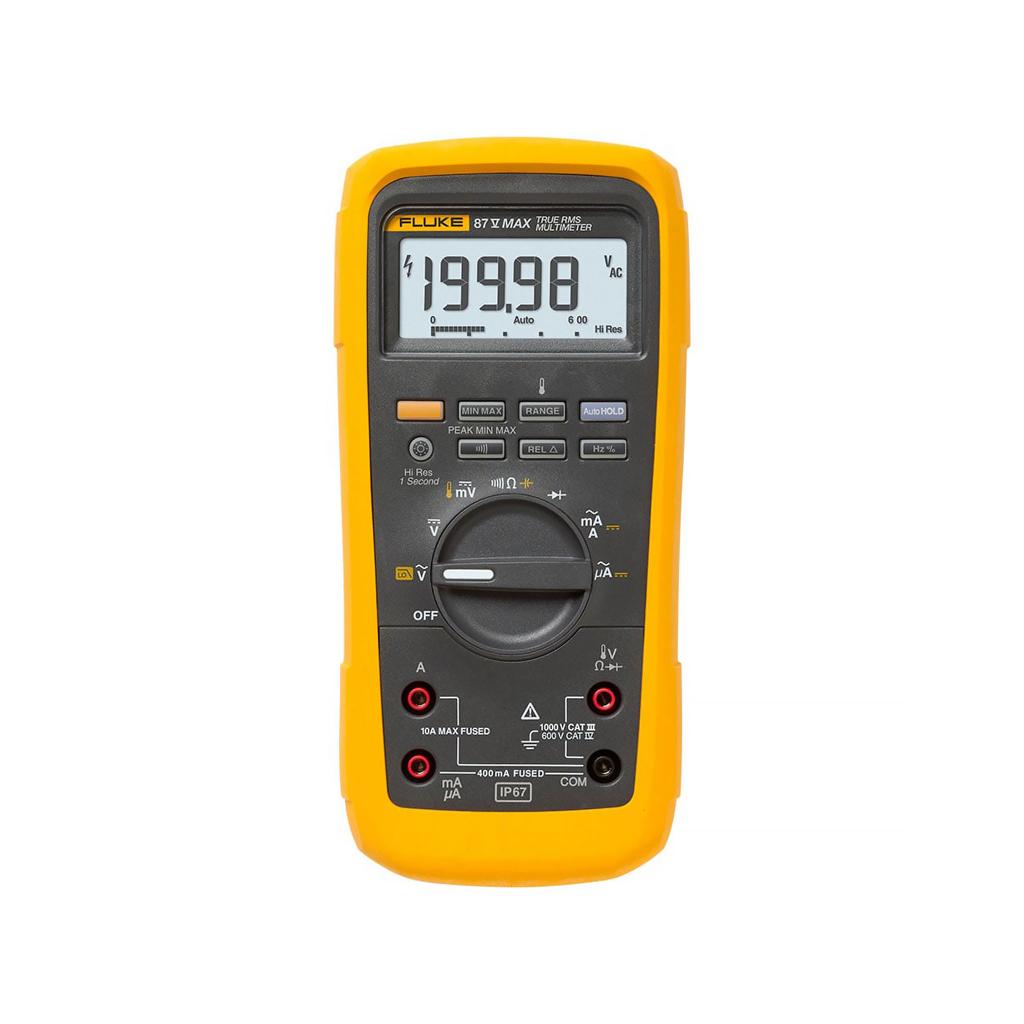

Fluke 87V-MAX True-RMS Multimeter - Fluke-87V-MAX

The Fluke 87V MAX True-RMS Digital Multimeter takes everything that makes the standard 87V the benchmark industrial meter and wraps it in the most ruggedized housing Fluke has ever built for a handheld multimeter. Rated IP67 (fully waterproof and dustproof) and drop-tested from 4 meters (13 feet) — nearly twice the height of the 28II's 3-meter rating, the 87V MAX is built for environments where conventional meters fail: rain-soaked ramps, oil-contaminated hangars, dusty manufacturing floors, and outdoor utility work in extreme temperatures. It delivers all VFD-specific measurement capabilities of the 87V with 800-hour battery life (double the standard 87V), a backlit keypad, and premium TL175 TwistGuard test leads as standard equipment.

Key Features

• IP67 Waterproof and Dustproof: Fully sealed against dust ingress and capable of submersion in 1 meter of water for 30 minutes. A&P mechanics working in rain on a ramp, HVAC technicians on rooftops in downpours, and industrial maintenance technicians in wet process areas can take measurements without concern for instrument damage.
• 4-Meter (13-Foot) Drop Test Survival: The 87V MAX survives drops from 4 meters (13 feet) onto concrete, the equivalent of falling from the top of an aircraft wing or from a maintenance platform. The standard 87V is not drop-rated; the 87VMAX meets the highest drop standard in the Fluke handheld line.
• 800-Hour Battery Life: Double the 400-hour battery life of the standard 87V. Extended field deployments, remote site work, and infrequent access to battery supply become non-issues. Three AA alkaline batteries (installed) power the instrument for over 33 continuous days of use.
• Backlit Keypad for Dark Environments: Individual key backlighting makes the 87V MAX fully operable in dark conduit vaults, equipment closets, aircraft wheel wells, and any confined space where the display backlight alone doesn't illuminate the control panel. The standard 87V lacks keypad lighting.
• Extended Temperature Range: -40°C to +55°C: Operating specification from -40°C to +55°C (-40°F to +131°F) covers the coldest outdoor winter conditions to the hottest industrial environments. Standard meters typically specify -20°C lower limit.
• 19,999-Count High-Resolution Display: Higher count than the standard 87V (which displays 6,000 or 19,999 counts). Combined with 0.05% DC accuracy, this provides resolution for motor winding resistance measurements to 0.001Ω.
• All VFD/ASD Measurement Capabilities: Identical selectable low-pass filter, high-energy drive shielding, 250µs peak capture, and True-RMS measurement as the standard 87V, in a body that survives the harsh environments where VFD-driven equipment operates.

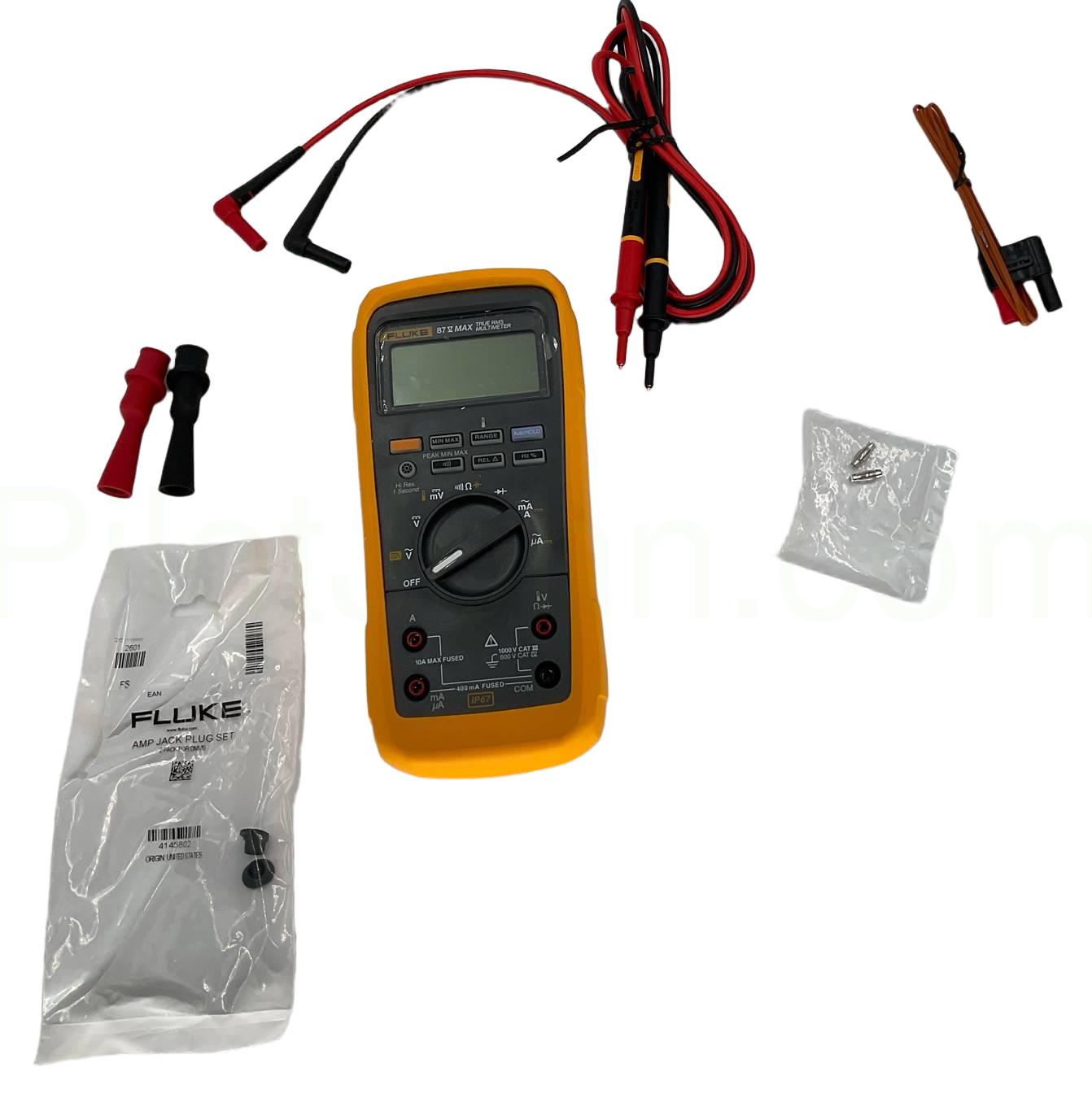

• Premium TL175 TwistGuard Test Leads Included: The TL175 TwistGuard leads provide 360-degree rotating probe guards, silicone insulation rated to 1000V CAT IV, and reinforced strain reliefs, significantly higher quality than the standard TL75 leads included with the base 87V.
• CAT IV 600V / CAT III 1000V Safety: Full safety rating for utility and service entrance level measurements, unchanged from the standard 87V.

Technical Specifications Overview

The 87V MAX matches the 87V's core measurement specifications: AC/DC voltage to 1000V (0.05% DC accuracy), current to 10A, resistance to 50MΩ, capacitance to 9,999µF, frequency to 200kHz, and temperature to 1090°C. Where it upgrades are the mechanical specifications: IP67 sealing, 4-meter drop resistance, -40°C cold temperature operation, 800-hour battery life, and backlit keypad. For technicians in harsh environments who need the 87V's VFD measurement capability without compromising the instrument to the environment, the 87V MAX is the only option.

Aviation & Field Service Applications

• Ramp and line maintenance in weather, measurements during rain or high humidity without instrument damage or safety concerns from moisture ingress
• Aircraft wheel well and bilge inspections, confined, dirty, potentially wet spaces where instrument exposure is unavoidable
• Hangar floor maintenance, oil, hydraulic fluid, and fuel environments where standard meter housings absorb contaminants over time
• Cold weather outdoor commissioning, outdoor electrical work in winter climates where standard meters fail from battery failure or condensation
• Mining and heavy industrial, MSHA-environment-compatible measurement where IP67 sealing protects against fine particulate intrusion
• Solar and renewable energy field service, outdoor installations subject to weather, elevated temperatures, and physical abuse from rough terrain access

Fluke 87V MAX Calibration

PJi operates an ISO/IEC 17025 Accredited Calibration Lab and can provide NIST-traceable calibration for the Fluke 87V MAX at the time of purchase, simply add calibration to your order at checkout. Our calibration documentation satisfies FAA Part 145 tool control requirements, ISO 9001 quality system documentation, and AS9100 calibration records. For repair stations, MRO facilities, and quality-certified shops that require documented traceability, PJi is the one-stop source: you get the instrument and the calibration certificate in a single transaction. Calibration-only companies cannot sell you the instrument. Major retailers cannot calibrate it. PJi does both.

Why Buy from Pilot John International

Pilot John International is an authorized Fluke distributor with more than 20 years of specialized experience serving aviation maintenance, MRO facilities, and FAA Part 145 repair stations. Unlike Amazon, Grainger, or Test Equipment Depot, which sell Fluke instruments but offer zero calibration services, PJi operates an in-house ISO/IEC 17025 Accredited Calibration Lab that can calibrate your instrument at the time of purchase. We stock the full Fluke catalog, ship same-business-day on in-stock items, and our technical staff understands the demands of aviation and industrial electrical maintenance firsthand.
