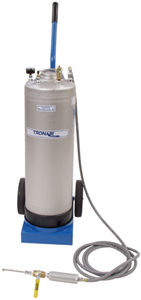

Fluid Service Unit (Pe) (Ce) - Tronair 06-5010-6600
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
Standard Features:
- Anodized aluminum housing
- #6 SAE female ports
- EPR or Vitron seals
- 2 micron absolute rating per ISO 4572
- Beta rating > 1000 at 4 micron
- Dirt capacity of 1.38 grams at < 50 psig
- 150 psi (10 bar) collapse rating
- 3,000 psi (207 bar) maximum pressure rating
- Length: 4.75 in (12 cm)
- Diameter: 1.5 in (3.8 cm)
- Dry Weight: 1 lb (.5 kg)
| General Information | |
|---|---|
| Part # | 06-5010-6600 |
| Manufacturer | Tronair |
| Manual 1 | View Tronair 06-5010-6600 Parts, Service, and Operations Manual |
| Shipping Information | |
|---|---|
| Shipping Weight | 60 lbs. |
| Shipping Dimensions | 45 x 17 x 14 in. |
| Freight NMFC | 128000 |
| Schedule B | 8413600040 |
| ECCN | EAR99 |
| Spare Parts | |
|---|---|
| G-1159-103504 | Screw, Round Head |
| G-1202-1035 | Stopnut, Elastic |
| G-1203-1095 | Jamnut, Elastic |
| G-1250-1090N | Flatwasher |
| H-1218 | Vessel, Pressure |
| H-1221 | Air Valve |
| H-1223 | Grip, Handle |
| HC-1395 | O-Ring, Closure, EPR |
| HC-1831 | Certified Pressure Gauge (0-160 psi/11 bars) |
| HC-2140 | Assembly, Inline Filter (EPR) |
| N-2007-05-S-E | Straight Thread Connector |
| N-2010-04-S | Connector, Female |
| N-2201-04-S | Elbow, Male |
| N-2210-02-S | Reducer, Pipe Thread |
| N-2214-03-S-E | Straight Thread Connector |
| PC-1017-02-125 | Safety Valve (125 psi/9 bars) |
| TF-1067-07*180 | Assembly, Hose (#4 PE) |
| U-1001-01 | Wheel |
| V-1001 | Label, Made In USA |
| V-1002 | Label, Tronair |
| V-1100 | Label, PE Fluid Only |
| V-1163 | Label, Max Fluid Level |
| V-1164 | Label, 85 psi Max |
| V-1431 | Tag, Flush System |
| V-2033 | Label, Closed Hydraulic System Caution |
| V-2118 | Label, Serial Number (CE) |
| Z-1325-00 | Weldment, Cart |
| Z-2152 | Assembly, Fill Valve |
