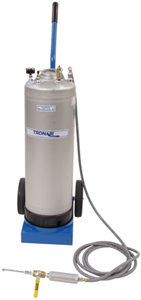

Tronair 06-5010-6800 – 6-Gallon Engine Oil Service Cart – 23699 & 87257 Fluids
Create yours now for free.
Need a Quote?
The Tronair 06-5010-6800 Engine Oil Service Cart is a mobile, high-efficiency fluid service unit designed to deliver clean, pressurized engine oil for aircraft maintenance operations. Engineered for reliability, it provides a controlled source of fluid for servicing reservoirs, performing system top-offs, and supporting a wide range of routine and preventative maintenance tasks.
The unit's pressurized delivery system ensures a smooth and consistent flow, while integrated filtration helps maintain fluid cleanliness and protect sensitive aircraft components. Compact, easy to maneuver, and built for demanding aviation environments, the 06-5010-6800 service cart helps technicians streamline workflow and maintain proper fluid servicing standards across a variety of aircraft platforms.
Standard Features
- ASME-certified stainless steel reservoir
- 15-ft (4.6 m) #4 hose with 37° JIC female swivel connector, shutoff valve, and filler tube
- Large, filtered fill port
- Inline filter
Specifications
- Reservoir Capacity: 6 gallons (22.7 liters)
- Maximum Pressure: 125 PSI ( 8.6 bar)
- Filter: 2-micron (Beta rating > 1,000 @ 4µm per ISO 4572)
- Fluid: MIL-L-23699 / MIL-PRF-87257
- Dimensions: 16.75" L x 13.88" W x 44.13" H (42.5 x 35 x 42.8 cm)
- Weight: 44 lbs (19.8 kg)
| General Information | |
|---|---|
| Part # | 06-5010-6800 |
| Manufacturer | Tronair |
| NSN | 4930016957725 |
| Manual 1 | View Tronair 06-5010-6800 Parts, Service, and Operation Manual |
| Shipping Information | |
|---|---|
| Shipping Weight | 53 lbs. |
| Shipping Dimensions | 45 x 17 x 14 in. |
| Freight NMFC | 128000 |
| Schedule B | 8413600040 |
| ECCN | EAR99 |
| Spare Parts | |
|---|---|
| G-1159-103504 | Screw, Round Head |
| G-1202-1035 | Stopnut, Elastic |
| G-1203-1095 | Jamnut, Elastic |
| G-1250-1090N | Flatwasher |
| H-1218 | Vessel, Pressure |
| H-1221 | Air Valve |
| H-1223 | Grip, Handle |
| HC-1831 | Certified Pressure Gauge (0-160 psi/11 bars) |
| HC-2141 | Assembly, Inline Filter (VITON) |
| K-5588 | Kit, Handheld Flow Meter (purchased separately) |
| N-2005-04-S | Elbow, Male |
| N-2007-05-S-B | Straight Thread Connector |
| N-2026-01-S | Swivel, 37° JIC |
| N-2210-02-S | Reducer, Pipe Thread |
| N-2214-03-S-B | Straight Thread Connector |
| PC-1017-02-125 | Safety Valve (125 psi/9 bars) |
| TF-1047-01*180 | Hose, Push-on (15 ft/4.57 m) |
| U-1001-01 | Wheel |
| V-1001 | Label, Made In USA |
| V-1002 | Label, Tronair |
| V-1101 | Label, MIL-PRF-83283 |
| V-1102 | Label, MIL-PRF-5606 |
| V-1163 | Label, Max Fluid Level |
| V-1164 | Label, 85 psi Max |
| V-1431 | Tag, Flush System |
| V-2033 | Label, Closed Hydraulic System Caution |
| V-2118 | Label, Serial Number (CE) |
| Z-1325-00 | Weldment, Cart |
| Z-2152 | Assembly, Fill Valve |
Customers also viewed
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
Yes. The 06-5010-6800 engine oil service cart is built for easy mobility, featuring semi-pneumatic 8” wheels that allow smooth movement across hangar floors, ramps, and maintenance areas. Its compact footprint and lightweight design make it simple for technicians to position the cart exactly where it’s needed without requiring additional equipment. This combination of portability and stability helps streamline routine oil servicing tasks, improving overall workflow efficiency in busy aviation maintenance environments.
The 06-5010-6800 service cart is designed to retain sufficient air pressure for proper fluid dispensing for up to eight hours before recharging is needed. This extended pressure-hold capability makes it ideal for remote servicing situations where an air source may not be readily available. Technicians can perform multiple oil servicing tasks without interruption, helping maintain efficiency during aircraft maintenance operations. Regular checks of the pressure level ensure consistent, reliable performance throughout the servicing period.
The unit features a safety pop-off valve to prevent overpressurization and utilizes ASME-certified stainless steel construction for the reservoir, ensuring compliance with pressure vessel standards. Use of proper fluids and adherence to operational guidelines are required to maintain safe operation.
Regular maintenance includes inspecting and replacing the inline filter element periodically – at least annually if usage is low – or more often if fluid analyses dictate. All maintenance and repairs should be done according to the manufacturer’s manual to avoid voiding the warranty and ensure safe operation.
The 06-5010-6800 is designed specifically for servicing engine oils that meet MIL-L-23699 or MIL-PRF-87257 specifications and is not intended for use with closed hydraulic systems. Using the unit with hydraulic fluids can introduce contamination, cause seal incompatibility, or damage sensitive aircraft components. To maintain proper fluid integrity and ensure safe servicing practices, technicians should use only the approved engine oil types with this model. For hydraulic system maintenance, a dedicated hydraulic service cart or HPU should always be used.
PJi supplies a full range of OEM replacement parts, filter kits, and service components for the Tronair 06-5010-6800 Engine Oil Service Cart, ensuring operators can maintain peak performance and equipment reliability. Using genuine Tronair parts helps protect system integrity, supports safe operation, and preserves warranty coverage. When requesting replacements or documentation, operators should provide the cart’s model and serial number to confirm proper part compatibility and streamline the ordering process.
